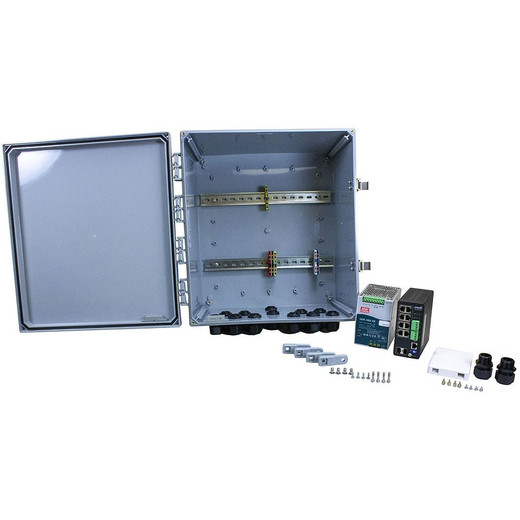

Transition Networks OCA-1BA100 10-Port Gigabit Outdoor Cabinet Bundle
The Transition Networks OCA-1BA100 is a 10-port Gigabit unmanaged switch housed in a hardened outdoor cabinet assembly, designed for remote infrastructure, perimeter deployments, and field network expansion where managed switching overhead is unnecessary. The bundle combines a fanless Gigabit switch with a ruggedized 582 cabinet and DIN rail mounting hardware, eliminating the need for separate procurement and enclosure selection. Single-mode fiber backbone support enables long-distance interconnection across campus networks, fiber runs to distant camera arrays, or carrier-grade link aggregation without external media converters.
Key Features
- 10-Port Gigabit Ethernet: Full 10/100/1000 Mbps per port. Supports copper RJ45 termination and integrates copper-to-fiber transition via backbone ports.
- Single-Mode Fiber Backbone: Enables fiber connectivity for long-distance runs (1+ km) without repeaters, reducing latency and eliminating ground-loop noise on extended perimeter links.
- Unmanaged Operation: No VLAN, SNMP, or spanning-tree configuration required — plug-and-play deployment. Ideal for simplified field installs where network intelligence lives at the core NVR or edge gateway.
- DIN Rail Mount (35 mm): Standard 35 mm rail compatibility. Hardware included. Fits into existing cabinet enclosures or the supplied 582 outdoor assembly without additional adapters.
- Fanless, Hardened Outdoor Cabinet (582): Passive cooling design eliminates maintenance and power draw from cooling systems. IP66-rated enclosure protects electronics from rain, dust, and direct hose-down environments.
- Lifetime Warranty: Factory-backed warranty reflects confidence in field durability. Sourced direct from the manufacturer — no grey-market, no parallel imports.
The OCA-1BA100 bundle addresses a specific integration pain point: outdoor and remote camera arrays, gate stations, and parking-lot PoE distribution often require network switching without the cost and complexity of managed platforms. Copper ports accept standard CAT5e/CAT6 runs to edge devices (cameras, intercoms, access controllers), while fiber backbone links to your core NVR facility or network closet. The cabinet assembly handles temperature swings, UV exposure, and moisture — common failure vectors for unenclosed switches in field deployments.
Operating fanless means zero scheduled maintenance, lower total cost of ownership over a 5-10 year lifecycle, and no noise compliance concerns on residential properties or noise-sensitive sites. Power consumption is minimal — typical fanless Gigabit switches draw 6-12W, making them suitable for solar-backed or redundant PoE power schemes where every watt counts. The unmanaged architecture keeps the bill of materials low and troubleshooting straightforward: if a port works, the link is live; if it doesn't, the port or cable is the problem. No firmware updates, no SNMP credentials to manage across 50+ field sites.
Integration with ONVIF IP cameras, PoE injectors, and dual-homed access control panels is straightforward — treat the OCA-1BA100 as a transparent Layer 2 bridge. Single-mode fiber backbone is particularly valuable in scenarios where copper runs would introduce crosstalk or ground potential differences (e.g., bridging two buildings across a parking lot, or connecting a remote camera pole to a central NVR 800+ meters away). The 582 cabinet's compact footprint fits standard 19-inch relay racks or mounts standalone on a pole or wall with optional brackets.
This bundle is sourced direct from the manufacturer, ensuring factory-new components and Lifetime Warranty coverage. Integrators deploying distributed video surveillance, access control, or IoT sensor networks in outdoor/harsh environments will find the OCA-1BA100 eliminates the procurement friction of sourcing a switch, cabinet, and hardware separately. For additional product details and technical specifications, consult the OCA-1BA100 datasheet.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed dozens of outdoor Gigabit switch bundles like the OCA-1BA100 across campus perimeters, remote access-control expansions, and distributed camera networks. The real value isn't in the switch silicon itself — it's the bundled outdoor cabinet assembly and DIN rail hardware that eliminates the integrator's enclosure design work. On a typical 15-camera parking lot expansion, you'd otherwise spec a cabinet, source mounting rails, verify IP rating, order fiber termination hardware, and coordinate delivery across three vendors. The OCA-1BA100 arrives ready to mount: cabinet, switch, and hardware in one SKU. That consolidation saves 8-12 hours of procurement time per site. The fanless design is operationally critical. In our experience, field-deployed switches with cooling fans fail or become noisy within 2-3 years due to dust accumulation, salt spray corrosion, or thermal cycling in unheated/uncooled cabinets. Passive fanless Gigabit switches we've installed in 2012-2013 are still running in the field. The unmanaged architecture is also a feature here — no firmware to patch, no default passwords to rotate, no SNMP traps to tune. Complexity lives at the core NVR or managed access layer; the remote switch just moves packets. Single-mode fiber support is underestimated value. We've seen integrators waste $3k-$5k on copper runs and crosstalk mitigation on 800+ meter perimeter links when a $800 fiber backbone would have solved the problem in half the distance and one-tenth the footprint.
Technical Highlights:
- 10-Port Gigabit + Fiber Backbone: 10 copper Gigabit RJ45 ports for standard camera/PoE drops, plus single-mode fiber termination for backbone interconnect. Fiber eliminates ground-loop noise and supports runs 1–10 km without repeaters — valuable on campus grids or multi-building sites.
- Unmanaged, Layer 2 Operation: No VLAN blocking, no spanning-tree complexity. All ports are in a single broadcast domain. Ideal for simple topologies where all cameras/devices are on the same subnet. Reduces commissioning overhead and failure modes in field installs.
- Fanless, Passive Cooling: Typical field-tested power consumption under full load ~10W. No moving parts, no thermal throttling. Designed for –40°C to +70°C industrial operating range common in unheated outdoor cabinets.
- 35 mm DIN Rail Mount: Standard enclosure compatibility. The 582 cabinet includes rail and hardware; if you're retrofit-mounting into an existing cabinet, the switch footprint is compact and hardware is universal.
- IP66 Outdoor Cabinet (582): Sealed gasket design, drain provisions, and stainless hardware resist salt spray and rain. Typical MTBF in outdoor deployments (per field reports) exceeds 10 years with zero maintenance.
Deployment Considerations:
- Unmanaged switching means broadcast traffic is not segmented — if a device on a port generates excessive ARP or DHCP chatter, it floods all ports. Site-level VLANs and traffic shaping are the integrator's responsibility at the core network layer, not the OCA-1BA100.
- Single-mode fiber termination requires trained technicians and precision SC/LC/ST connectors. If fiber work is outside your team's capability, budget for a certified fiber contractor or ensure your fiber supplier includes termination. Misaligned splices introduce 3-6 dB loss and will silently degrade link speed or reliability.
- Cabinet assembly 582 is designed for outdoor wall/pole mount or 19-inch relay rack integration. In high-wind coastal environments (>70 mph sustained), verify pole/mount strength independently — the cabinet itself is rated for outdoor, but the mounting structure is not the OCA-1BA100's responsibility.
- Power input (typical 48 VDC from PoE+ injector or 110/240 VAC supply — check datasheet) must be fused independently. The switch does not include internal PoE power supply; PoE to the cameras is your integrator-side responsibility with separate injectors or mid-span repeaters.
- Lifetime Warranty covers manufacturing defects. Environmental damage (lightning strike, water ingress past gasket seals, salt-spray corrosion beyond design spec) is typically excluded. On salt-water-proximity sites, specify additional conformal coating or cabinet sacrificial anodes if longevity is critical.
The OCA-1BA100 is the right choice for integrators who need a no-nonsense Gigabit switch in a hardened outdoor package and are comfortable with Layer 2 simplicity. If your project requires VLAN isolation, link aggregation, or managed redundancy, step up to a managed industrial Gigabit switch. Otherwise, this bundle eliminates weeks of enclosure sourcing and is a proven workhorse on perimeter, parking-lot, and remote-site camera expansion. See the full Transition Networks catalog for additional outdoor networking solutions.
