Transition Networks IONMM-232 ION Management Module RS-232

Transition Networks IONMM-232 RS-232 Management Module

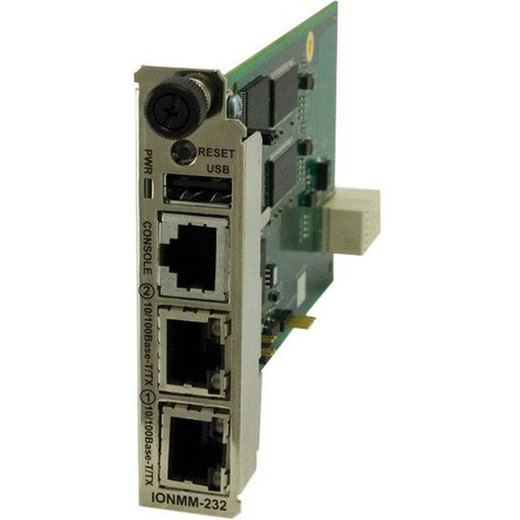

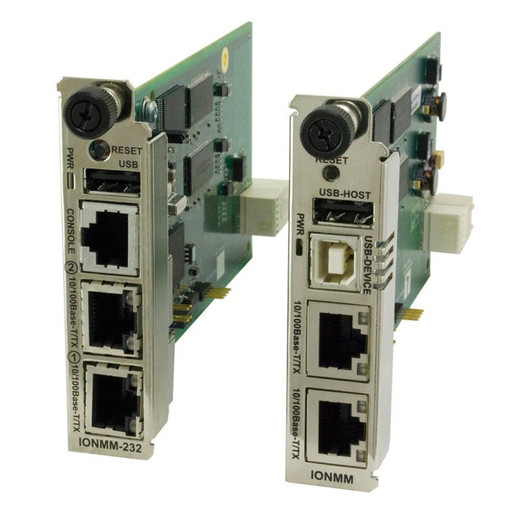

The Transition Networks IONMM-232 is a DIN rail-mount management module designed to extend the operational flexibility of Transition Networks ION switch systems. It provides dedicated RS-232 serial interface connectivity for out-of-band device management, legacy equipment control, and alternative configuration paths independent of the primary Ethernet network. Unmanaged operation means zero additional setup overhead — the module functions as a plug-in accessory with no independent configuration required. This design is especially valuable in security and industrial deployments where out-of-band serial access eliminates network dependency for critical management tasks.

Key Features

• RS-232 Serial Interface: Dedicated serial port for out-of-band management and legacy device integration. Provides a secondary control path that remains operational even if the primary Ethernet infrastructure is compromised or saturated.
• DIN Rail Mount: Standard DIN rail form factor enables compact installation in utility closets, wall-mounted enclosures, and telecom racks. No additional mounting hardware or floor space required.
• Plug-in Module Architecture: Direct integration into ION switch systems — no external cabling, separate power supplies, or management software. Unmanaged operation keeps deployment simple.
• Single-Mode Fiber Compatible: Works seamlessly with ION systems deployed on single-mode fiber infrastructure, common in long-distance and campus-wide surveillance and industrial networks.
• Lifetime Warranty: Factory-backed warranty covering defects and manufacturing issues across the product lifecycle.
• Industrial-Grade Reliability: Built for 24/7 operation in security operations centers, telecom facilities, and industrial control environments where uptime is non-negotiable.

The IONMM-232 addresses a critical operational requirement in distributed security and industrial networks: the need for out-of-band management access. When an IP network is congested, under attack, or misconfigured, serial access via RS-232 allows engineers to remotely reset, diagnose, or reconfigure switches without physical site access. This capability is especially important in multi-site security deployments where field technicians may be hours away.

Integration is straightforward. The module plugs directly into the ION switch chassis — no jumpers, firmware updates, or VMS configuration needed. RS-232 connectivity is established immediately upon insertion. Legacy serial devices (industrial sensors, older access-control equipment, environmental monitoring systems) can be daisy-chained or polled over the same serial line, reducing the need for separate management interfaces throughout the facility.

In single-mode fiber deployments, the IONMM-232 becomes part of a long-distance, noise-resistant infrastructure. Whether managing cameras and access points across a 40-hectare industrial campus or coordinating network equipment across geographically dispersed security operations centers, the out-of-band RS-232 path ensures that management and diagnostics remain available regardless of fiber-link status or Ethernet congestion.

The IONMM-232 is compliance-agnostic and platform-neutral at the serial layer — it works with any third-party device or custom script that can issue serial commands. This flexibility is essential for integrators managing heterogeneous environments where security cameras, access-control panels, NVRs, and industrial sensors may span multiple manufacturers. The DIN rail mount and unmanaged operation mean that this module integrates seamlessly into existing telecom and security infrastructure without consuming managed switch resources or requiring ongoing software updates.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

In our experience deploying multi-site security networks, the value of out-of-band management access cannot be overstated. We've seen situations where a primary Ethernet network became inaccessible due to misconfiguration, DDoS activity, or power anomalies — and the only lifeline was a serial management port. The IONMM-232 is not flashy, but it solves a real operational problem in distributed environments. It's particularly useful when you're managing ION switches across facilities that may have limited IT support on-site. A technician with a laptop and a serial cable can restore or diagnose a switch even if the Ethernet infrastructure is down. The DIN rail form factor and unmanaged operation mean minimal deployment friction — it's a true plug-and-play accessory, not a separate appliance requiring its own power, cooling, or monitoring.

Technical Highlights:

• Out-of-Band RS-232 Management: Independent of Ethernet — remains functional even if the primary network is saturated, misconfigured, or under attack. Real-world consequence: eliminates site visits for routine resets or diagnostics, saving 2-4 hours per incident in geographically dispersed deployments.
• Unmanaged Module Architecture: No firmware, no configuration protocols, no management agent — zero operational overhead. Plug it in, connect your serial device, and it works. Reduces first-line troubleshooting complexity significantly.
• Single-Mode Fiber Compatibility: Fits naturally into long-distance, campus-scale, or high-EMI industrial networks where single-mode fiber is already deployed. No secondary twisted-pair infrastructure required.
• DIN Rail Consolidation: Collocates management access with the switch itself — no satellite management boxes, no extra rack space. Cleaner cable management, fewer points of failure.
• Lifetime Warranty: Reflects manufacturer confidence in reliability. In telecom and security environments, this removes replacement cost uncertainty over multi-year deployments.

Deployment Considerations:

• RS-232 range is limited (typically <100 feet without line drivers or converters). If your management workstation is far from the ION switch chassis, budget for a serial-over-Ethernet adapter (like a terminal server or serial converter) to extend reach cost-effectively.
• Serial access is single-channel — only one technician can manage the switch via RS-232 at a time. In high-volume troubleshooting scenarios, consider a secondary management path (Ethernet) or serial multiplexing if available on your ION platform.
• Legacy device integration via RS-232 requires understanding of baud rates, parity, and handshaking protocols — document device serial specs before deployment to avoid compatibility surprises.
• DIN rail mounting requires accessible enclosure space near the ION switch. Verify cabinet layout and clearance before ordering; crowded racks may require a separate wall-mount or external rail kit.
• Pair this module with terminal software (Putty, Hyperterminal, etc.) and documented command sets for your managed devices. Out-of-band management is only as effective as your runbooks and team training.

The IONMM-232 is ideal for integrators and system architects who are building resilient, distributed security or industrial networks and need reliable out-of-band access to ION infrastructure. It's not a feature-rich management appliance — it's a simple, proven way to ensure that serial diagnostics and legacy device control remain available even when Ethernet is compromised. For multi-site deployments, campus-scale fiber networks, and any environment where site visits are costly, this module earns its place in the rack. Learn more about the full range of Transition Networks ION and management options in the Transition Networks catalog.
