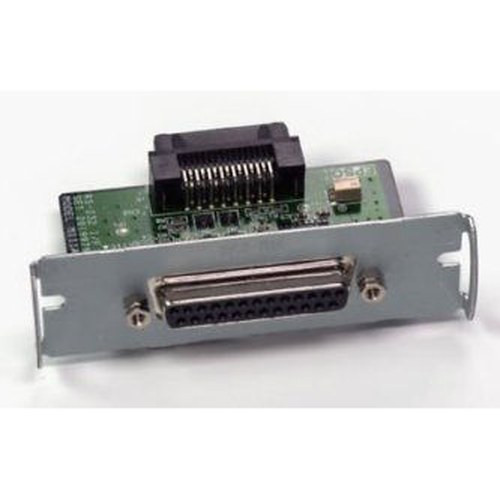

Epson C823361 Serial RS-232 Interface Card
Overview
The Epson C823361, also marketed as the UB-S01 serial adapter, is a plug-in interface module that adds RS-232 serial port connectivity to compatible Epson printer models. This card is engineered for environments where legacy serial communication remains standard or where parallel and USB connectivity are unavailable. The onboard 1K data buffer manages communication flow between your host system and the printer, ensuring stable operation in workflows that depend on wired serial connections. Typical deployments include warehouse management systems, logistics label printing, and industrial production lines where RS-232 has proven reliability and integration depth.
Key Features
- RS-232 Serial Connectivity: Direct serial port support eliminates the need for USB-to-serial converters or network adapters, reducing compatibility headaches in legacy system integrations where a dedicated serial line is the standard or only available option.
- 1K Data Buffer: Onboard buffering absorbs transmission spikes between the host and printer, preventing data loss during bursts and allowing the printer to operate smoothly even when the host sends data in rapid succession.
- Plug-In Module Form Factor: Installs as an internal card into supported Epson printer chassis—no external adapters, no desktop clutter, no additional power draw or external cabling to manage.
- Legacy System Support: Designed specifically for integration into existing warehouse automation, point-of-sale, and industrial control systems that standardize on RS-232 communication protocols and cannot be refactored to USB or Ethernet without substantial cost and downtime.
- Reliable Industrial Communication: Serial communication is immune to the electromagnetic noise that can disrupt USB or parallel signals in high-RF environments typical of manufacturing floors and distribution centers.
Integration & Compatibility
The C823361 integrates as a plug-in module into Epson printer models that support the UB-S01 interface. Before ordering, verify your printer model supports this interface card—compatibility varies across the Epson industrial and commercial printer lineup. Once installed, the card operates transparently to your host application; no driver modification is required if your application already sends serial print jobs. The 1K buffer is sufficient for most warehouse label and shipping receipt workflows, though very high-speed batch printing or heavy network congestion may require flow-control tuning at the application level.
Frequently Asked Questions
Q: Does the Epson C823361 require a separate power supply?
A: No. The C823361 is powered internally by the host Epson printer. No external power source is needed.
Q: Is the 1K buffer sufficient for high-volume label printing?
A: The 1K buffer handles typical warehouse label workflows (shipping, returns, inventory tags). In very high-speed batch printing scenarios, monitor for buffer overrun errors and consider implementing hardware flow control (RTS/CTS) at the application level to throttle data transmission.
Q: What host systems are compatible with the C823361?
A: Any system with a standard RS-232 serial port or USB-to-serial converter can communicate with the C823361. Warehouse management systems (WMS), legacy POS terminals, and industrial programmable controllers (PLCs) are common hosts.
Q: Does the C823361 support handshaking and flow control?
A: The C823361 supports standard RS-232 handshaking signals. Consult your Epson printer's technical documentation for the exact pin assignment and supported flow-control modes (XON/XOFF or hardware RTS/CTS).
Q: Is this card suitable for outdoor or harsh-environment installations?
A: The C823361 is an internal printer module and carries no environmental rating. Your Epson printer's enclosure rating determines suitability for outdoor or chemically aggressive environments. The serial connection itself is temperature-tolerant but not humidity- or contamination-sealed.
Q: Can I replace a parallel or USB connection with the C823361?
A: Yes, if your printer supports multiple interface cards. The C823361 adds serial capability alongside existing ports. Check your printer model's slot availability and documentation for simultaneous operation of multiple interface types.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Epson C823361 is a straightforward module for print environments that have no choice but RS-232. If your warehouse automation stack, PLC, or legacy WMS is hardwired for serial communication, this card eliminates the need to retrofit converters or introduce network dependencies. The 1K data buffer on the C823361 is adequate for label printing workflows but not generous—expect to manage flow control at the application layer in high-throughput scenarios.
Technical Highlights:
- RS-232 Serial Protocol: Direct point-to-point wired communication avoids network latency and eliminates dependency on Ethernet infrastructure, critical in legacy manufacturing floors where serial buses have existed for decades and refactoring would cost months of integration.
- 1K Data Buffer: Sufficient for typical label and receipt printing (50–100 jobs per minute), but saturates under sustained high-speed batch printing. Monitor buffer usage under your peak load and implement RTS/CTS or XON/XOFF handshaking to prevent data loss.
- Plug-In Internal Module: No external enclosure, no additional wiring, no power draw beyond what the printer already consumes. Installation is mechanical only—insert and secure, then configure the host application to use the serial port.
Deployment Considerations:
- Confirm printer model compatibility before ordering—not all Epson commercial or industrial printers support the UB-S01 interface slot.
- The 1K buffer is tight for burst printing. Test your actual print volume and data packet sizes before committing to production; add flow-control logic if needed to avoid timeout errors.
- RS-232 signal integrity degrades over cable distance and in high-EMI environments. Keep serial cables short (under 50 feet ideal), use shielded twisted-pair cabling, and ground the shielding at the printer end only to avoid ground loops.
The C823361 is the right choice for warehouse, manufacturing, and logistics operations where serial communication is non-negotiable and you have an Epson printer already in the stack. It is not a retrofit solution for modernizing legacy systems—it is a continuity enabler for systems that cannot absorb network dependencies or require the deterministic latency of wired serial links.
