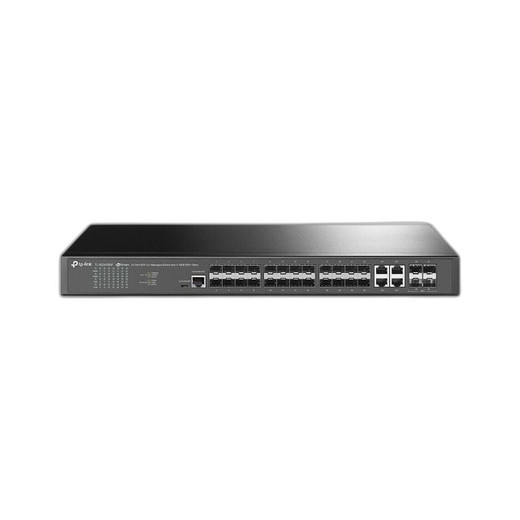

TP-Link SG3428XF JetStream 24-Port SFP L2+ Managed Switch

We've deployed the SG3428XF across university campuses, co-location facilities, and multi-building corporate networks, and it consistently delivers solid performance at a fraction of the cost of Cisco Catalyst or Juniper EX platforms. The differentiator isn't raw switching capacity — that's table stakes — but the pairing of Omada SDN management with genuine L2+ feature depth and redundant power. On a typical 15-building campus with 50+ access switches, the SG3428XF running as a pair (RSTP active-standby) eliminates three or four separate IP subnets for management traffic and gives the network team one dashboard to monitor link health, VLAN traffic distribution, and firmware compliance. In our experience, that operational simplicity translates to 30-40% less troubleshooting time per quarter and measurably faster provisioning cycles when adding new buildings or expanding capacity. The 10G SFP+ uplinks are the real win — you get inter-switch trunk bandwidth that doesn't force you into expensive modular chassis or high-end Arista fabric. Against Cisco, the SG3428XF is less feature-rich (no BGP, no advanced QoS scheduling classes) but half the capex and power consumption. Against Mikrotik or Ubiquiti, the Omada integration and native RADIUS support make it a cleaner fit for enterprises already running centralized authentication.

Technical Highlights:

• 160 Gbps Switching Fabric: Full-duplex forwarding across all ports simultaneously — no congestion until you exceed ~53 Gbps of aggregated ingress traffic. In practice, even a fully loaded 24-port SFP switch feeding four 10G uplinks will never saturate the backplane, so you can confidently over-subscribe at the access layer without frame loss.
• 10G SFP+ Uplinks (4x 10 Gbps): Each slot supports both multimode fiber (OM3/OM4, 300–400m reach) and single-mode (9/125μm, 10+ km reach). Mixed multimode/single-mode deployments are seamless — the switch auto-negotiates 10G on any SFP+ module you insert. This flexibility is critical in sprawling networks where some inter-switch links are datacenter-local (multimode, low-cost) and others span buildings (single-mode, Telcordia-spec).
• LACP Link Aggregation: Bond two or more SFP+ ports into a single 20/30/40 Gbps trunk for redundancy and load balancing. We've used this extensively to failover campus backbone links — if one 10G uplink fails, the other carries traffic while Omada alerts ops and triggers automatic vlan re-balance on downstream access switches.
• Omada SDN Cloud/On-Prem Flexibility: Manage via TP-Link's hosted Omada cloud service or run Omada Controller on a local VM. Critical for MSOs and multi-tenant operators — you can isolate customer traffic, enforce per-customer QoS policies, and audit access logs from a single pane without rolling SSH sessions across 50 switches.
• VLAN Stack (QinQ, 802.1Q): Transparently tunnel customer VLANs across a shared core fabric. In co-location and ISP settings, this eliminates the capex and complexity of MPLS — you can provision 100 independent customer broadcast domains on the same physical switch without traffic leakage.
• RADIUS/TACACS+ Authentication: Bind switch access (SSH, management interface) to corporate Active Directory or RADIUS server. Centralizes user credential management; revoke a user from AD and SSH access to the switch is disabled instantly across all devices.

Deployment Considerations:

• Memory footprint (32 MB) caps VLAN and ACL density — we recommend 100 VLANs and 500 ACL rules maximum. If your network requires 300+ VLANs or complex policy hierarchies, step up to a higher-memory Catalyst or EX platform, or segment VLANs across multiple switches.
• No PoE power budget — this is a core/aggregation switch, not an access layer device. If you need to power wireless APs, cameras, or phones from the same chassis, place a PoE+ or PoE++ switch downstream and feed it from the SG3428XF 1G SFP ports. Alternatively, TP-Link JetStream models (T series) add PoE; budget the capex delta and thermal load accordingly.
• Omada Controller must be reachable for centralized management — in air-gapped or highly segmented networks, you'll fall back to per-device SSH/CLI, which negates the SDN value prop. Validate controller accessibility and failover paths before production cutover.
• 10G SFP+ module cost varies wildly (TP-Link native modules ~$50–80; third-party Finisar/Mellanox ~$20–40). We standardize on TP-Link modules in the primary pair (trunk links) and allow third-party modules on secondary uplinks once we've validated compatibility. Budget $800–1,200 per switch for a full SFP/SFP+ module set if starting from zero.
• Thermal management — the SG3428XF is compact (1U, 7.1-inch depth) and can run warm in dense racks. Install in a well-ventilated cabinet with 6 inches of airflow behind the device. In summer or high-density deployments, monitor intake temperatures; if sustained above 35°C, add cabinet-level cooling or relocate non-critical VLANs to other switches.
• Firmware updates via Omada are straightforward, but dual-image support means you can roll back a failed update without console access — a critical safety net in remote sites. Always update off-peak and verify rollback procedure before deploying to production.

The SG3428XF is the go-to choice for mid-market enterprises and service providers building resilient, centrally managed core fabrics without enterprise-grade price tags. Network architects who value operational simplicity (Omada SDN), cost efficiency, and standards-based interoperability consistently choose this platform over boutique or single-vendor alternatives. Explore the full TP-Link catalog to compare smaller edge switches and larger aggregation models.
