Viking E-30TF-IP Touch-Free VoIP Entry Phone Vandal-Resistant PoE

Viking Electronics E-30TF-IP Touch-Free VoIP Entry Phone

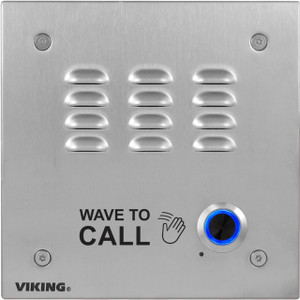

The Viking Electronics E-30TF-IP is a SIP 2.0 VoIP entry intercom built for commercial and institutional deployments where contact-free operation, vandal resistance, and reliable all-weather performance are non-negotiable. The unit activates via a motion-sensing touch-free trigger — no button for visitors to press, no surface bacteria transfer, no mechanical switch to fail — making it particularly well-suited to healthcare facilities, correctional environments, and high-traffic access points. Flush-mount into the included rough-in box or surface-mount with an optional VE-Series enclosure; either way, the 14-gauge louvered stainless steel faceplate stands up to deliberate abuse at the door.

Why This Unit Works for Commercial Entry Control

Most entry phones compromise somewhere: audio quality, environmental range, or physical durability. The E-30TF-IP addresses all three. The touch-free motion sensor range is adjustable from one to four inches, so you can tune sensitivity for a recessed flush mount versus a surface-mounted projection. The ring LED shifts from blue at idle to flashing green on activation — a visual confirmation that the sensor has triggered, useful for troubleshooting in loud environments where you can't rely on audio cues alone.

On the network side, this is a straightforward SIP entry phone that integrates with any standards-compliant IP PBX or SIP proxy — Asterisk, FreePBX, Cisco UCM, or most hosted SIP platforms. No proprietary controller required. With up to five programmable call destinations, you can ring a front desk, a guard station, a mobile extension, and fallback numbers in sequence, all configured in the unit's internal web interface.

Key Features

• Touch-Free Motion Sensor (1–4 inch adjustable range): Eliminates the mechanical pushbutton entirely. In high-traffic lobbies or healthcare corridors, this removes a common failure point and satisfies hygiene requirements without retrofitting the door hardware.
• PoE Class 1 (<4W): Draws under 4 watts from a standard 802.3af port — well below the 15.4W class ceiling. That means virtually any managed or unmanaged PoE switch will power it without budget strain, and you don't run a separate 120V circuit to the door frame.
• G.711u / G.711a / G.722 Audio Codecs: G.722 delivers wideband HD audio at 7kHz bandwidth, roughly twice the voice clarity of standard G.711. In noisy vestibules or outdoor lobbies, that difference in intelligibility matters for both the caller and the person answering.
• 90 dB SPL Speaker Output: Measured at 1 meter, 90 dB SPL is loud enough to cut through moderate ambient noise — loading docks, HVAC-heavy mechanical rooms, or busy corridors — without requiring a separate horn speaker.
• SIP 2.0 (RFC 3261) / 100BASE-Tx Network Compliance: Standard SIP 2.0 means the E-30TF-IP integrates with virtually any IP PBX or hosted voice platform without vendor lock-in. The single RJ-45 10/100 port carries both voice and power on one cable run to the door.
• Up to 5 Programmable Call Destinations: Route calls to a desk phone, a softphone, a mobile number via SIP trunk, or a sequenced ring group. Useful for facilities where coverage must transfer between shifts or stations without reprogramming the device each time.
• 2-Amp Relay Contacts: The onboard relay can directly drive a door strike or magnetic lock rated up to 2A. For most standard electric strikes, that's sufficient without an external relay panel — one less component in the door hardware stack.
• -40°F to 140°F (-40°C to 60°C) Operating Range: This is genuine cold-climate performance. Unheated parking structures, northern exterior entries, and industrial freezer vestibules fall comfortably within spec. Pair with the E-30TF-IP-EWP variant (IP66-rated, up to 100% humidity) for fully exposed outdoor installations.
• 14-Gauge Louvered Stainless Steel Housing: 14-gauge is heavy plate — meaningfully thicker than the sheet-metal enclosures common on lower-cost intercoms. The louvered pattern protects the speaker while allowing sound projection, and stainless resists corrosion in coastal or high-humidity environments.
• Three Gel-Filled Butt Connectors: The included gel-filled connectors provide weatherproof wire terminations for the relay and any auxiliary wiring — a detail that matters on outdoor installations where moisture wicking into the terminal block is a common failure mode.
• FCC Part 15 / Canada ICES-3 Class A / CE Certified: Standard regulatory compliance for US, Canadian, and European deployments. No additional certification testing required for most commercial installations in these markets.

Integration and Compatibility

The E-30TF-IP connects to any SIP 2.0–compliant IP PBX or hosted platform via its RJ-45 10/100 port. Configuration is handled through the device's internal web interface — set SIP credentials, extension assignments, call routing, and relay behavior without proprietary software. The IEEE 802.3af PoE requirement means it pairs directly with any standard PoE network switch in your infrastructure; no injector or separate power supply needed at the door. For installations requiring full outdoor exposure or wash-down environments, the EWP variant of this product family carries IP66 ingress protection and handles up to 100% humidity — the standard E-30TF-IP is rated for 5–95% non-condensing humidity and is appropriate for covered outdoor or semi-exposed locations. The E-30TF-IP (often searched as E 30TF IP) ships ready to flush-mount with the included rough-in box; VE-Series surface-mount boxes are sold separately for retrofit installations where wall cavity access is limited.

Frequently Asked Questions

Q: What SIP platforms does the E-30TF-IP work with?

A: The E-30TF-IP is compliant with SIP 2.0 (RFC 3261), which means it registers with any standards-based IP PBX or hosted SIP platform — Asterisk, FreePBX, Cisco UCM, and most cloud voice providers. No proprietary controller is required.

Q: Does the E-30TF-IP require a separate power supply at the door?

A: No. It runs on PoE Class 1, drawing under 4 watts from a standard IEEE 802.3af port. A single Cat5e or Cat6 cable to the door carries both data and power — no 120V outlet needed at the entry point.

Q: What is the difference between the E-30TF-IP and the E-30TF-IP-EWP?

A: Both share the same core specs — SIP 2.0, PoE Class 1, G.722 audio, and the touch-free sensor. The EWP (Enhanced Weather Protection) variant adds IP66 ingress protection and supports up to 100% humidity, making it appropriate for fully exposed outdoor installations. The standard E-30TF-IP is rated for 5–95% non-condensing humidity.

Q: Can the E-30TF-IP control a door lock directly?

A: Yes. The unit includes onboard relay contacts rated at 2 amps, which can directly drive most standard electric door strikes or magnetic locks without requiring an external relay module.

Q: How many call destinations can be programmed on the E-30TF-IP?

A: Up to five call destinations can be programmed, allowing sequential or simultaneous ring routing to desk phones, mobile extensions via SIP trunk, or ring groups — configurable through the device's internal web interface.

Q: What are the mounting options for the E-30TF-IP?

A: The E-30TF-IP ships with a rough-in box for flush mounting. For surface-mount installations, an optional VE-Series box is available separately. The unit measures 5 inches × 5 inches × 2.25 inches (127mm × 127mm × 57mm).

Ted Perry

The E-30TF-IP earns its place at entry points where button-based intercoms create hygiene or durability problems. The adjustable 1–4 inch motion sensor range is what I keep coming back to — it lets you tune activation distance for flush-mounted versus surface-mounted installations without pulling the unit out of the wall to swap hardware. At sub-4W PoE Class 1, this thing is genuinely easy on a switch's power budget even when you're running 24+ ports on a mid-range managed switch.

Technical Highlights:

• G.722 Wideband Audio: 7kHz voice bandwidth versus G.711's 3.4kHz — the intelligibility improvement is audible in a busy lobby, not just on a spec sheet. Particularly valuable in facilities where staff are answering calls remotely and can't rely on visual cues.
• 2-Amp Relay: Handles most standard electric strikes directly — no relay module in the door hardware stack. That simplifies the wiring diagram and reduces failure points at the door frame.
• -40°F to 140°F Operating Range: Covers unheated northern parking structures in January and sun-baked exterior entries in August without any thermal management hardware. Few intercoms at this price tier match that envelope.

Deployment Considerations:

• The standard E-30TF-IP is rated 5–95% non-condensing humidity — for fully exposed outdoor installations with rain exposure or wash-down environments, specify the EWP variant (IP66, up to 100% humidity) instead. Don't install the non-EWP unit directly under a roof drip edge or on a facade without overhang protection.

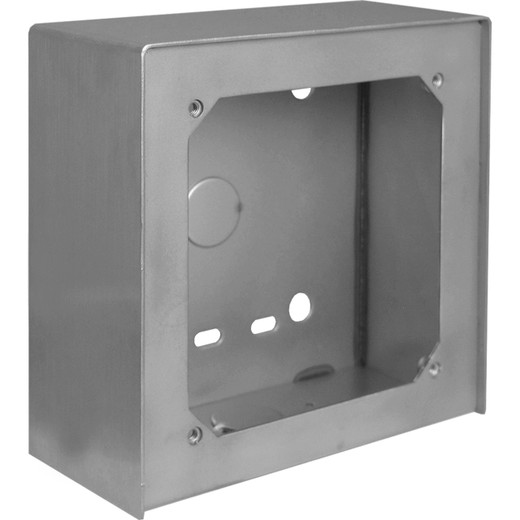

• VE-Series surface-mount boxes are sold separately. If you're retrofitting into an existing wall without cavity access, budget for that accessory — the included rough-in box is for new-construction flush mount only.

This unit is the right call for healthcare facility entries, secure vestibules in correctional or government buildings, and any high-traffic lobby where contact-free operation is mandated — the touch-free sensor and heavy-gauge stainless housing handle the use case without requiring workarounds.
