Viking Electronics E-30-IP Handsfree VoIP SIP Entry Phone

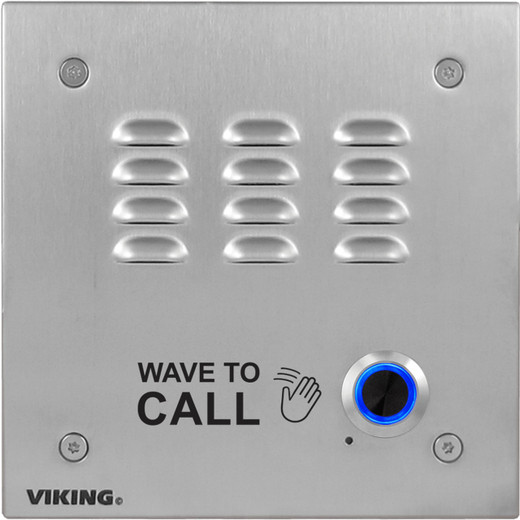

The Viking Electronics E-30-IP is a flush-mount, handsfree SIP VoIP entry phone engineered for commercial and industrial door/gate intercom applications where durability, vandal resistance, and reliable voice communication are non-negotiable. Built from 14-gauge louvered stainless steel and drawing just 4 watts over standard PoE, the E-30-IP integrates cleanly into existing SIP phone systems without added infrastructure. If you're evaluating Viking Electronics VoIP entry phones for a lobby, vestibule, or perimeter gate, this model covers the fundamentals well.
Overview
The E-30-IP (often searched as E 30 IP) is part of Viking's E-10/20/30/32-IP family of VoIP entry phones. It connects to any SIP-based phone system over a single Cat5e/Cat6 run — no separate power supply, no extra home-run wiring. The louvered stainless steel faceplate is rated for heavy-contact environments, and the operating temperature range spans -40°F to 140°F, which makes it viable for unheated entryways, outdoor vestibules, and loading dock call stations in almost any North American climate. Firmware and configuration are handled through Viking Device Manager, which supports parallel programming and polling across multiple units — a real time-saver when commissioning a multi-door deployment. Browse the full range of VoIP entry phones to compare flush-mount and surface-mount options.
Key Features
- PoE Class 1, under 4 watts: The E-30-IP draws less than 4W from any IEEE 802.3af, 802.3at, or 802.3bt compliant switch port. Class 1 is the lowest PoE draw tier, meaning it won't stress your switch's power budget even on a lightly spec'd 8-port PoE switch. No transformer, no local outlet — a single Cat5e run handles both power and data. If you're planning a PoE switch alongside this deployment, Class 1 draw gives you maximum flexibility on port allocation.
- 100Mbps full-duplex network port: Voice traffic from an entry phone is bandwidth-trivial, but a 100Mbps full-duplex port ensures the unit handles SIP signaling and audio without contention, and integrates cleanly into standard enterprise switch infrastructure without requiring a dedicated VLAN port speed accommodation.
- 2A relay output contacts (2A @ 30VDC / 250VAC max): The onboard relay is rated for 2A at either 30VDC or 250VAC — enough to directly drive most electric strikes, magnetic locks, or gate controllers without an intermediate relay board. It's also compatible with Viking's SL-2 strobe light for visual call indication. This relay is what makes the E-30-IP a standalone door-control endpoint, not just an intercom speaker.
- -40°F to 140°F operating range: Spec'd for continuous operation from hard-freeze to desert-heat conditions. This is a meaningful differentiator for outdoor applications in northern climates (unheated parking garages, exterior gates) or roof-level equipment rooms in hot climates. The 5%–95% non-condensing humidity rating covers coastal and high-humidity environments as well.
- 14-gauge louvered stainless steel faceplate: 14-gauge steel is thick enough to resist casual vandalism and tool-based attacks at a call station. The louvered design protects the speaker element from direct water intrusion and physical probing. For higher-risk environments requiring additional housing, surface mounting via the optional VE-5x5 accessory is supported.
- Flush mount with included rough-in box, or surface mount (optional VE-5x5): The rough-in box is included, so new-construction or renovation flush installs don't require a separate back-box order. Existing wall penetrations or retrofit scenarios where opening drywall isn't practical are handled by adding the VE-5x5 surface-mount adapter — keep that in your quote if the rough-in approach isn't feasible on-site.
- 19–26 AWG termination range, 0.082-inch max insulation diameter: The terminal block accepts standard low-voltage and voice-grade wire gauges. The 0.082-inch insulation limit is worth checking before field termination — oversized cable jackets can prevent proper seating in the terminal block.
- Viking Device Manager — parallel programming and firmware updates: Multi-unit deployments benefit from Device Manager's parallel configuration capability. Rather than touching each unit individually, a technician can push configuration profiles and firmware updates to the entire installed base simultaneously — relevant for campus deployments or multi-building access control retrofits.
Integration and Compatibility
The E-30-IP registers as a standard SIP endpoint, making it compatible with Asterisk, FreePBX, 3CX, Cisco Unified Communications Manager, and most enterprise SIP-PBX platforms. Relay integration for door/gate hardware connects at the on-board terminal block — no additional controller board is required for single-door deployments. For installations pairing this unit with a broader access control system, verify the relay contact ratings match your electric strike or mag-lock operating voltage and current draw before finalizing the design. Viking Device Manager handles unit-level configuration; SIP trunk provisioning and dial plan assignment are managed at the PBX level.
Frequently Asked Questions
Q: What PoE standard does the E-30-IP require, and how much power does it draw?
A: The E-30-IP is compatible with IEEE 802.3af, 802.3at, and 802.3bt compliant switches. It is a PoE Class 1 device drawing under 4 watts — the lowest standard PoE consumption tier, supported by virtually all managed and unmanaged PoE switches.
Q: Can the E-30-IP control an electric door strike or magnetic lock directly?
A: Yes. The onboard relay output is rated at 2A @ 30VDC or 250VAC maximum. Most standard electric strikes and magnetic locks operate within these parameters, allowing direct relay connection without an intermediate relay board. Verify your lock's current draw before wiring.
Q: What is the operating temperature range of the E-30-IP?
A: The E-30-IP is rated for -40°F to 140°F (-40°C to 60°C) with 5% to 95% non-condensing humidity — suitable for unheated outdoor vestibules, loading docks, and exterior gate stations in most North American climates.
Q: Does the E-30-IP support flush mounting and surface mounting?
A: Both are supported. A rough-in back-box is included for flush-mount installation. Surface mounting requires the separately ordered VE-5x5 surface-mount adapter, which is not included in the standard package.
Q: How are multiple E-30-IP units configured and updated in a multi-door deployment?
A: Viking Device Manager supports parallel programming, firmware updates, and polling across multiple units simultaneously. This eliminates per-unit manual configuration for larger deployments.
Q: What wire gauges does the E-30-IP terminal block accept?
A: The terminal block accommodates 19–26 AWG wire with a maximum insulation diameter of 0.082 inches. Verify cable jacket dimensions before termination — oversized insulation can prevent proper seating.
The E-30-IP earns its place in commercial entry intercom designs primarily because of how little it asks of your infrastructure — 4 watts Class 1 PoE over a single Cat5e run, SIP registration like any desk phone, and a 2A relay that handles most door hardware directly. For a device that handles voice, access control output, and all-weather operation in a single flush-mount unit, that's a tight integration story.
Technical Highlights:
- PoE Class 1 at under 4W: Draws less than 4 watts from any 802.3af/at/bt port — you can run this off the smallest PoE injector or dedicate it to a lightly loaded switch without worrying about per-port power budget. No external supply means one less failure point at the door.
- 2A relay at 30VDC or 250VAC: The relay contact rating covers most electric strikes and mag-locks at both 12/24VDC and 120VAC without an interposing relay board. At 250VAC you have headroom for higher-voltage locking hardware in markets where 120VAC strikes are non-standard.
- -40°F to 140°F operating range: This isn't a spec you'll use in a conditioned lobby, but for an unheated parking structure entry in Minnesota or a rooftop equipment room access point in Phoenix, it's the difference between a device that works year-round and one that fails seasonally.
Deployment Considerations:
- Device Manager's parallel programming is the right tool for multi-door rollouts — plan to configure a master profile on one unit first, validate it, then push to the fleet rather than provisioning each unit independently at the SIP PBX level.
- The 0.082-inch maximum insulation diameter on the terminal block is a real field gotcha: standard plenum Cat5e is fine, but some heavier-jacketed cable assemblies won't seat correctly. Confirm cable specs before your technician is standing at the rough-in box.
The E-30-IP is the right call for SIP-based campuses adding door intercoms to an existing UC platform — college residence entry points, hospital service corridors, or industrial facility gate stations where you want the call to ring the same IP phone system already deployed in the building, not a proprietary intercom controller.
