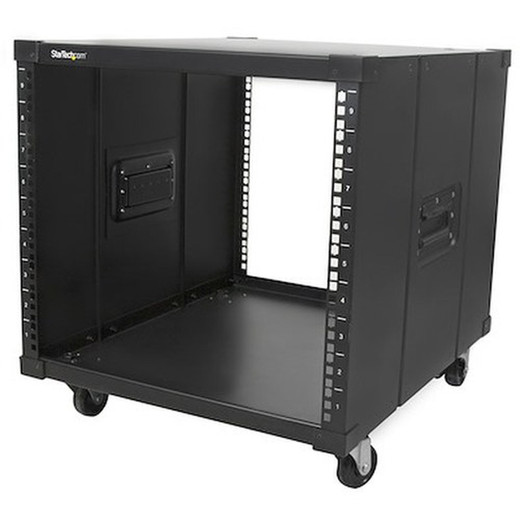

StarTech RK960CP 9U 4-Post Mobile Open Frame Server Rack

Overview

The StarTech RK960CP is a 9U, 4-post open-frame rack on casters — built for tight server rooms, home offices, and edge deployments where floor space is scarce but you still need to house real rackmount gear. At 20.5 inches wide and 23.8 inches deep, it fits through standard doorways without disassembly, rolls into position, and locks down when you're done. With a 297 lb static weight capacity and compliance with EIA/ECA-310-E, IEC 60297, and DIN 41494 standards, this isn't a lightweight A/V cart — it's a proper rack that happens to move.

If you're deploying a small network video recorder stack, edge switching, or a compact server node in a space-constrained environment, the RK960CP gives you standards-compliant rackmounting without committing to a bolted-floor cabinet.

Key Features

• 9U Capacity in a Compact Footprint: Nine rack units of mounting space in a unit that stands only 22.4 inches tall with casters installed — small enough for under-desk or closet deployments where full-height cabinets simply won't fit. You get real rackmount density without requiring a dedicated server room.
• 297 lb Static / 220 lb Rolling Weight Capacity: Static capacity covers a fully populated 9U build — switches, NVRs, patch panels, and 1U servers — without flex or frame distortion. The 220 lb rolling limit means you can move a moderately loaded rack between rooms or positions during installation rather than emptying it first. Know the difference: don't roll it loaded down a ramp.
• 23.4-Inch Maximum Mounting Depth: Accommodates standard 1U/2U servers, NVRs, and network gear up to 23.4 inches deep — which covers the majority of commercial rackmount equipment. Shallow 1U switches and patch panels fit with room to manage cabling cleanly behind them.
• 4-Post Open Frame Design: Open frames give you unrestricted access to the front, rear, and sides of every piece of gear simultaneously — critical when you're cabling an NVR to a PoE switch mid-install or swapping a drive tray without pulling the unit. Contrast this with enclosed cabinets where rear access means opening a separate panel.
• Integrated Casters for Mobility: The casters bring the rack height to 22.4 inches and let you roll the unit to wherever the work is. Lock them in place once positioned. For integrators doing phased installs across multiple rooms or floors, this alone saves significant time versus moving gear in and out of a fixed rack.
• EIA/ECA-310-E, IEC 60297, DIN 41494 Compliance: These aren't marketing checkboxes — they define the exact rail spacing, hole pattern, and U-height increments that every rackmount vendor builds to. Compliance means any standard 19-inch rackmount device installs without adapter plates or custom hardware.
• Easy Assembly Design: The rack ships ready to assemble without specialized tools. For integrators provisioning multiple edge nodes or small office deployments, faster assembly means lower labor cost per site.
• Integrated Handles: Handles on the frame let two people lift and position the unit without improvising grip points on the posts — relevant when navigating tight hallways or stairwells during initial delivery.
• 53.1 lb Unloaded Weight: Light enough for a single person to manage during unboxing and initial positioning, but substantial enough that the frame stays planted under load. The 20.5 × 23.8 inch footprint keeps it stable without outriggers.

Integration and Compatibility

The RK960CP follows the same rackmount hardware standards used across the industry. Any 19-inch rackmount device — 1U switches, 2U NVRs, patch panels, 1U servers, KVM units — installs directly using standard cage nuts and M6 screws in the EIA-compliant rail pattern. The 23.4-inch max mounting depth covers virtually all commercial-grade 1U and 2U network and security hardware.

For security integrators building a compact surveillance node, the RK960CP pairs cleanly with a PoE network switch in the lower Us and an NVR above it — keeping the full stack mobile for staged deployments or temporary installations. IT architects provisioning remote office edge nodes will find the open frame format simplifies cable routing compared to an enclosed cabinet in the same footprint.

Because the frame is open on all sides, airflow is passive and unrestricted — no need to plan blanking panels for cooling as you would in an enclosed cabinet. That said, open frames offer no physical security against casual access, so factor that into your deployment decision if the rack will be in a publicly accessible or semi-public area.

Frequently Asked Questions

Q: What is the maximum equipment depth the RK960CP can accommodate?

A: The RK960CP supports a maximum mounting depth of 23.4 inches, which covers the vast majority of standard 1U and 2U rackmount servers, NVRs, and network switches.

Q: Can I move the RK960CP when it is loaded with equipment?

A: Yes, but with a caveat. The rolling weight capacity is 220 lb — lower than the 297 lb static limit. If your loaded rack approaches or exceeds 220 lb, remove some equipment before rolling it to avoid overloading the casters or destabilizing the frame.

Q: Does the RK960CP ship pre-assembled?

A: No — it ships as a kit and requires assembly. StarTech designed it for easy assembly without specialized tools, so installation is straightforward, but plan for assembly time on-site.

Q: What rackmount standards does the RK960CP comply with?

A: The RK960CP meets EIA/ECA-310-E, IEC 60297, and DIN 41494 standards. These define the 19-inch rail spacing and U-height increments used by virtually all rackmount IT and security hardware, ensuring broad compatibility without adapter plates.

Q: What is the warranty on the RK960CP?

A: StarTech provides a 2-year manufacturer warranty on the RK960CP.

Q: Is the RK960CP suitable for a publicly accessible area?

A: The open-frame design offers no physical security barrier to the equipment installed in it. If the rack will be in a semi-public or shared-access space, an enclosed locking cabinet is a better choice. The RK960CP is best suited for secured back-office, server closet, or controlled equipment room environments.

Eden Phillips

The spec that stands out to me on the RK960CP is the gap between the static and rolling weight limits — 297 lb static versus 220 lb on casters. That 77 lb difference is meaningful when you're populating all 9U and then need to reposition the rack mid-install. I've seen integrators load a rack completely and then try to roll it, which is exactly how you stress a caster axle or tip the frame on an uneven floor. Plan your load before you move it.

Technical Highlights:

• 297 lb Static Capacity: Enough headroom for a fully populated 9U build — think a 2U NVR, a 1U PoE switch, a patch panel, and a 1U server — with capacity remaining. The frame won't flex under a real working load.
• 23.4-Inch Max Mounting Depth: Covers nearly all commercial NVRs and 1U servers on the market without requiring a deeper rack or riser kit. Shallow gear like patch panels and thin switches leave clean cable management space behind them.
• EIA/ECA-310-E Compliance: The rail pattern matches every standard 19-inch rackmount device without modification. No adapter plates, no custom brackets — gear drops straight in on cage nuts.

Deployment Considerations:

• At 20.5 inches wide and 23.8 inches deep, the RK960CP fits through standard 32-inch interior doorways, making it genuinely portable between rooms during phased installations — but measure your narrowest door before committing to a fully loaded move.
• Open-frame racks have no door, lock, or side panels. If this unit will live outside a locked server closet, the lack of physical access control is a real security gap for any equipment installed in it.

The RK960CP is a strong fit for integrators provisioning compact edge security nodes — an NVR, a PoE switch, and a patch panel — in small branch offices or secure back-of-house spaces where a full-size enclosed cabinet is impractical and the rack needs to move during installation phasing.
