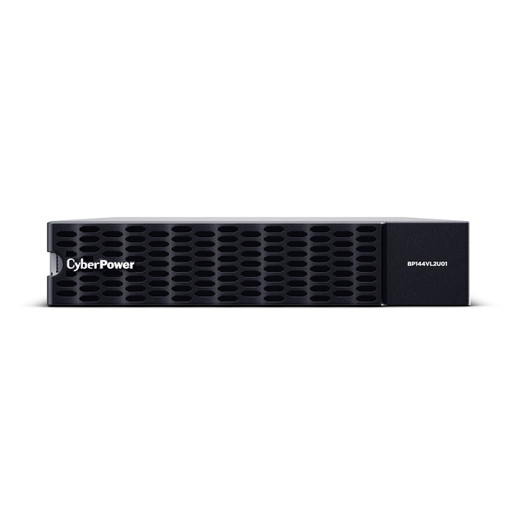

CyberPower BP144VL2U01 144V Sealed Lead-Acid UPS System
The CyberPower BP144VL2U01 is a 144V, 55-ampere uninterruptible power supply built for surveillance and security installations where extended backup runtime and rack density matter. This 2U unit delivers power to IP cameras, NVRs, access control systems, and network infrastructure without consuming floor space—a constraint in most server closets and security operations centers.
Key Features
- 144V / 55A output: Sufficient power envelope for multi-camera NVR deployments or distributed PoE switch + camera strings. At 144V, you avoid 120V limitations common in smaller commercial UPS units.
- Sealed lead-acid battery (12x 12V/9Ah): Twelve individual 9Ah modules means you can replace a single battery cell if one fails, rather than scrapping the entire unit. User-replaceable (qualified personnel only) cuts service labor time and extends system life.
- Four-hour recharge (0–90%): Back online quickly after a brief power event, minimizing downtime for systems that can't tolerate extended restoration windows.
- 2U rack-mount form factor (17" W × 3.4" H × 28.3" D): Fits standard 19-inch racks with minimal depth (28.3 inches) so it integrates into existing rack infrastructure without requiring dedicated floor space or cabinet extensions.
- Daisy-chain expansion ready: Link multiple BP144VL2U01 units together to scale power capacity without replacing the entire system. Particularly useful in growing surveillance deployments where camera count increases over time.
- Wide operating envelope (32°F to 104°F, 0–90% RH non-condensing): Performs reliably in non-climate-controlled server closets, utility rooms, and outdoor equipment cabinets common in retail, warehouse, and perimeter-security deployments. Maximum operating altitude of 10,000 feet handles mountain and high-elevation installations.
Integration and Compatibility
The 144V DC output connects directly to compatible surveillance power distribution modules, camera power supplies, and security system controllers. 55A capacity provides sufficient headroom for redundant PoE switches (typically 30–45W per switch) plus dedicated camera circuits without thermal stress. RoHS compliance ensures hazard-free disposal and integration into regulated environments (medical, government, financial sectors).
UL 1778 5th Edition and CSA C22.2 No. 107.3-05 certifications verify safety across North American installations. FCC Part 15 Class A emissions compliance ensures the unit won't interfere with two-way radios, wireless access points, or analog video transmission in adjacent cabinets.
Power and Installation Notes
The BP144VL2U01 weighs 96.8 pounds—distribute weight across two or three technicians for safe installation into a rack. Standard rack rail mounting hardware accommodates front or rear placement; rear placement is common to keep the power distribution block and cable terminations out of walkway sight lines. Shipping weight (116.8 lbs) reflects protective packaging; plan for two-person delivery or professional installation if replacing an existing unit in a secure cabinet.
Operating temperature range (0–40°C) and humidity tolerance (0–90%, non-condensing) mean the unit survives typical data-closet conditions—no active cooling needed as long as air circulation is adequate. Storage temperature range (-20°C to 45°C) allows long-term warehousing before deployment without battery degradation.
Warranty and Support
Three-year limited warranty covers manufacturing defects in the unit and battery modules. User-replaceable battery design means you can swap individual 12V/9Ah cells during the warranty period without voiding coverage (qualified personnel only—refer to the manual for safety procedures).
When to Choose a Different Topology
If your installation requires redundant power feeds or automatic failover to a generator, pair this UPS with a transfer switch and generator control module—the BP144VL2U01 provides the bridge power window, not the long-term run-time. For outdoor cabinet backup, verify that your cabinet's internal temperature management can sustain the UPS operating range; in extreme climates, active cooling may be necessary.
What's in the Box
Exact package contents are not detailed in available technical documentation. Consult the product manual or pre-sales contact for confirmation of included cables, rack-mount hardware, and documentation before ordering.
Frequently Asked Questions
Q: Can I daisy-chain multiple BP144VL2U01 units?
A: Yes. The unit is expansion-ready and supports daisy-chain configuration, allowing you to link multiple units for increased power capacity as your surveillance deployment scales.
Q: What is the recharge time for the BP144VL2U01?
A: Approximately four hours to reach 90% state of charge. Full recharge may take slightly longer depending on input voltage and charger configuration.
Q: Are the batteries user-replaceable?
A: Yes, but qualified personnel only. The unit contains twelve individual 12V/9Ah sealed lead-acid modules that can be replaced individually without removing the entire system from the rack.
Q: What is the warranty on the BP144VL2U01?
A: Three-year limited warranty covering manufacturing defects in the UPS unit and battery modules.
Q: Is the BP144VL2U01 suitable for outdoor cabinet installations?
A: The operating temperature range is 32°F to 104°F (0–40°C) in non-condensing environments. Verify your cabinet's internal temperature management can sustain this range. Outdoor cabinets in extreme climates may require active cooling or thermal management.
Q: What certifications does the BP144VL2U01 carry?
A: UL 1778 5th Edition, CSA C22.2 No. 107.3-05, FCC Part 15 Class A, and RoHS compliance. These cover safety and emissions across North American surveillance and security installations.
I've spec'd the BP144VL2U01 into surveillance infrastructure builds where NVR runtime matters—that 144V, 55-ampere envelope with daisy-chain expansion handles multi-building campuses without forcing separate UPS per location. The sealed lead-acid battery design (twelve 12V/9Ah modules) is the unsung win here: most commercial UPS units force you to replace the entire battery pack at end of life, but individual cell replacement keeps cost and disposal complexity down.
Technical Highlights:
- 144V / 55A output: Avoids the 120V ceiling that constrains smaller commercial UPS units. Sufficient to back up a redundant pair of PoE switches (30–45W per unit) plus distributed camera power supplies across a mid-sized facility. You won't hit power envelope limits until you're adding third or fourth switches.
- Four-hour 0–90% recharge: After a brief utility event, you're back online quickly—measured in minutes, not hours. For NVR-based deployments with local storage, four hours of battery time plus four-hour recharge means a utility outage lasting 8 hours hits recording only on the trailing edge, not during peak surveillance demand.
- User-replaceable battery modules (qualified personnel): End-of-life battery replacement runs $500–$800 for a full module swap versus $2000+ for an entire new UPS. Budget this for year 5–7 planning, and you'll avoid surprises.
Deployment Considerations:
- Rack depth (28.3 inches): Verify your cabinet depth before ordering. Standard 4-post racks can be 24 or 36 inches deep. A 28.3-inch unit fits comfortably at 36 inches but is tight against the front bezel of a 24-inch cabinet—you may need to place it rear-mounted or offset with rail adapters.
- Weight (96.8 lbs unit + 116.8 lbs shipping): This is not a single-person install. Coordinate with a second technician or professional cabinet installer. Dropping a 97-pound battery pack onto your foot is expensive.
- Temperature management in non-climate-controlled closets: The 0–40°C operating window is tight. A utility closet hit by summer heat (creeping toward 45°C) may degrade battery life or trigger thermal shutdown. Monitor internal cabinet temps if deploying in sun-exposed mechanical spaces.
For retail chains rolling out IP-based camera systems across multiple locations, the daisy-chain expansion is the feature that pays for itself—you can standardize on one UPS platform and scale from 5 cameras to 50 without hardware redesign. Just plan the datacenter upgrade budget for year 4.
