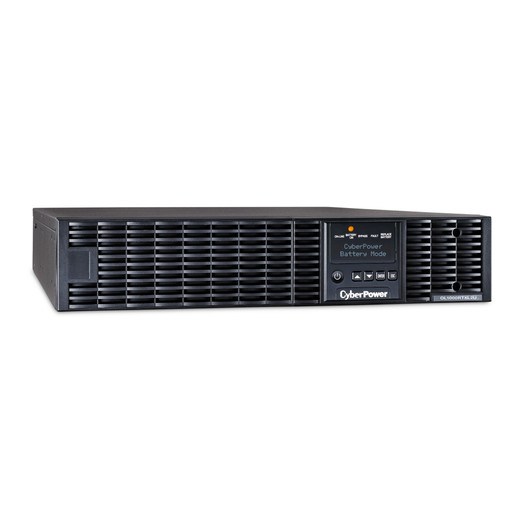

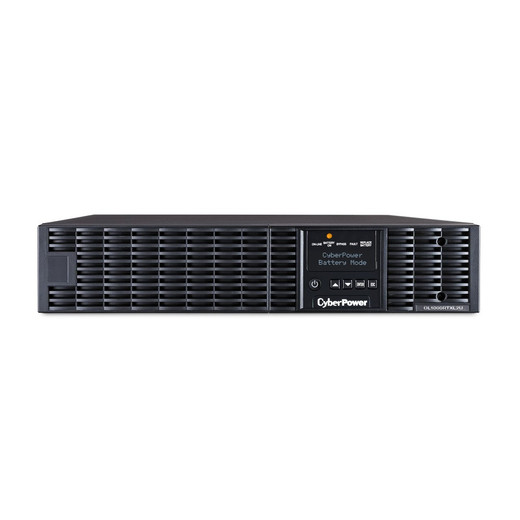

CyberPower OL1000RTXL2U 1000VA Online UPS 2U Rack/Tower

CyberPower OL1000RTXL2U 1000VA Smart App Online UPS

The CyberPower OL1000RTXL2U delivers true double-conversion topology in a compact 2U form factor, providing zero-transfer-time protection for AV control processors, NVRs, network cores, and access control panels. Unlike standby or line-interactive designs that switch between modes, this online UPS continuously regenerates clean sine wave power from battery-backed DC bus, eliminating switch gaps that crash sensitive IP devices. Hot-swappable battery modules and front-panel serviceability keep your rack online during maintenance windows.

Key Features

• True online double-conversion topology — zero transfer time, continuous power conditioning for voltage-sensitive loads
• 1000 VA / 900 W capacity supports typical 16-port PoE switch + NVR + controller stack
• Pure sine wave output across full load range — safe for active PFC power supplies in enterprise gear
• Hot-swappable battery design — replace modules without powering down protected equipment
• ECO mode delivers 94% efficiency when input quality is acceptable, reducing heat and energy cost
• Multi-interface monitoring: USB, RS-232, dry-contact relay, EPO, plus optional SNMP card slot
• Wide 96-150 VAC input window handles generator sag and brownout without draining battery
• Configurable output voltage (100/110/115/120/125 VAC ±2%) matches regional or equipment-specific requirements

Double-conversion architecture separates your load from utility anomalies. Incoming AC feeds a rectifier that charges the battery bank and powers an inverter; the inverter synthesizes clean sine wave output regardless of input quality. When utility fails, operation continues seamlessly — there is no relay to click, no 4 ms gap that reboots PoE cameras or drops SIP trunks. This makes online UPS the only acceptable choice for always-on security infrastructure, where a momentary dropout during storm flicker can blind a facility or unlock doors.

The three 12V/9Ah sealed lead-acid modules are accessible from the front bezel. Slide the retention bracket, swap the battery pack, reinsert — no tools, no shutdown, no cab access. Runtime at full 900 W is 8 minutes (enough to ride out most utility hiccups or initiate graceful NVR shutdown); half-load yields 21 minutes. Fast-charge circuitry recovers 90% capacity in four hours, so brief outages don't leave you vulnerable during the recharge window. Generator compatibility and wide input range mean this UPS works in mobile command trailers, remote telco huts, and other environments where utility quality is poor.

Eight NEMA 5-15R outlets on the rear panel distribute protected power; all outlets share battery backup. The 10-foot input cord with hospital-grade NEMA 5-15P plug reaches distant rack PDUs without extension cords. Front-panel LCD shows load percentage, battery charge, input/output voltage, runtime estimate, and fault codes. USB and serial ports connect to most NVR, VMS server, and building-management platforms for automated shutdown scripting. The optional RMCARD205 SNMP/HTTP adapter enables remote monitoring and graceful shutdown commands over the network — critical when the UPS is in a locked IDF three floors away.

Rack-mount ears support standard 19-inch rails; tower feet allow floor placement in equipment closets. EMI/RFI filters on input and output stages prevent the UPS itself from polluting or being polluted by nearby motor loads, dimmers, or transmitters. Compliant with UL1778 (UPS safety), FCC Part 15 Class B (emissions), and CSA C22.2 No. 107.3 (Canadian UPS standard). Three-year manufacturer warranty covers parts, labor, and battery — longer than the 1-2 year coverage common on standby models, reflecting the commercial-grade build. This UPS fits security integrators deploying always-on systems where downtime isn't an option and power quality can't be trusted.
