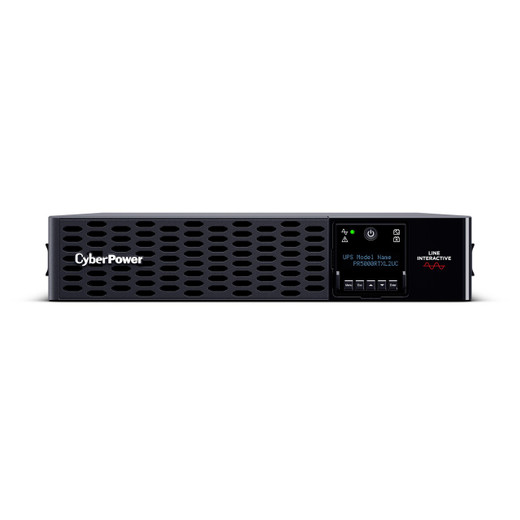

CyberPower PR5000RTXL2UC 5000VA Line-Interactive Rack/Tower Sine Wave UPS
Overview
The CyberPower PR5000RTXL2UC is a 5000VA/5000W line-interactive UPS built for IT closets, server rooms, and surveillance infrastructure where clean, stable power is non-negotiable. At 5 kVA of output capacity, this unit handles substantial loads — think a full rack of PoE network switches, an NVR stack, or a server cluster that cannot tolerate even a brief power interruption or voltage irregularity.
Line-interactive topology means the PR5000RTXL2UC continuously conditions incoming power through an automatic voltage regulator (AVR), correcting sags and surges without switching to battery. That matters in environments where utility power is noisy or unstable — brownouts that would force lesser standby UPS units onto battery repeatedly are handled inline, extending battery life and reducing wear cycles. Pure sine wave output ensures compatibility with active PFC power supplies found in modern servers, high-density PoE switches, and enterprise networking gear — square or stepped-wave approximations from cheaper UPS units can cause PFC-equipped loads to fault or shut down unexpectedly.
The form factor is rackmount/tower convertible, fitting a standard 2U rack slot or standing upright as a tower unit — useful during phased deployments when you're staging equipment before a rack is populated. The unit operates on a 125V nominal input and accepts a wide input voltage window of 165V–291V before transferring to battery, giving you meaningful headroom against utility fluctuations without prematurely draining the battery bank.
Key Features
- 5000VA / 5000W Output Capacity: A 1.0 power factor rating means the kVA and watt figures are identical — no derating penalty. Size your load budget at the full 5000W rather than applying an 80% rule, which simplifies capacity planning on dense deployments.
- Pure Sine Wave Output: Active PFC power supplies in servers, enterprise switches, and modern surveillance recorders require a sine wave input to operate correctly. The PR5000RTXL2UC delivers a clean sine waveform on battery, preventing load faults that occur with stepped-approximation outputs from standby-topology units.
- Line-Interactive Topology with AVR: Voltage sags and surges are corrected in real time without a battery transfer event. In facilities with aging electrical infrastructure or frequent brownouts, this keeps your UPS system off battery during routine utility fluctuations — preserving runtime for actual outages.
- Wide Input Voltage Window (165V–291V): The 126-volt acceptance range before battery switchover handles deep brownouts and mild overvoltages alike. Installations near industrial equipment, HVAC compressors, or other high-draw machinery benefit directly from this tolerance band.
- Dual 50/60 Hz Input Frequency: Compatible with both North American 60 Hz and international 50 Hz grid standards. Useful in multi-region deployments or facilities with generator backup that may produce slightly off-frequency output during startup.
- Rack/Tower Convertible Form Factor: The 2U rackmount profile slots into standard 19-inch racks without an adapter. Tower orientation is available for floor or shelf mounting during pre-rack staging or in environments where a rack is not available.
- Nominal 125V Input: Designed for standard North American single-phase circuits, compatible with typical 20A or 30A dedicated UPS circuits depending on load configuration.
Integration and Compatibility
The PR5000RTXL2UC's pure sine wave output makes it broadly compatible with active PFC server power supplies (Intel, Dell, HPE, Supermicro platforms) as well as network video recorders and storage arrays. Line-interactive UPS units at this capacity class are commonly paired with a network management card or USB/serial communication interface — confirm available communication slots and software support when specifying for environments requiring integration with a UPS monitoring platform (such as PowerPanel Business, SNMP-based NMS, or VMware/Hyper-V shutdown agents). For large surveillance deployments, pairing this unit with a structured power management strategy ensures orderly shutdown sequencing across cameras, switches, and recorders during extended outages.
Frequently Asked Questions
Q: What is the output power of the PR5000RTXL2UC?
A: The PR5000RTXL2UC delivers 5000VA / 5000W of output capacity. The 1.0 power factor means there is no derating between the VA and watt figures.
Q: Does the PR5000RTXL2UC produce a pure sine wave on battery?
A: Yes. The PR5000RTXL2UC uses a pure sine wave output topology, making it compatible with active PFC power supplies in servers, enterprise switches, and modern surveillance equipment.
Q: What input voltage range does the PR5000RTXL2UC accept before switching to battery?
A: The unit accepts input voltages from 165V to 291V before transferring to battery. This wide window handles brownouts and overvoltages without unnecessarily cycling the battery.
Q: Can the PR5000RTXL2UC be used in both rack and tower configurations?
A: Yes. The form factor is rack/tower convertible. It fits a standard 19-inch rack in 2U of space or can be oriented as a tower unit for floor or shelf mounting.
Q: What is the difference between line-interactive and standby UPS topology?
A: A standby UPS passes utility power through directly and only switches to the inverter when an outage is detected — typically with a transfer time of several milliseconds. A line-interactive unit like the PR5000RTXL2UC also includes an automatic voltage regulator that corrects sags and surges in real time without switching to battery, reducing battery wear in environments with unstable utility power.
Q: What nominal input voltage does the PR5000RTXL2UC require?
A: The unit is designed for a 125V nominal input, standard for North American single-phase electrical circuits.
The PR5000RTXL2UC is the unit I reach for when someone needs 5000W of clean, conditioned power in a 2U rack slot and cannot accept active PFC load faults from a stepped-wave output. The line-interactive topology with AVR is what separates this from a basic standby unit — in any facility where brownouts are routine, that voltage regulation happens without a battery transfer event, which matters considerably for battery longevity in always-on deployments.
Technical Highlights:
- 5000VA / 5000W at Unity Power Factor: No VA-to-watt derating. Budget the full 5000W for load planning — most competing units at this VA rating derate to 4000–4500W effective output.
- 165V–291V Input Acceptance Window: A 126-volt tolerance band before battery transfer is wide enough to handle deep industrial brownouts. Facilities near large HVAC or compressor loads see this pay off immediately.
- Pure Sine Wave on Battery: Every active PFC supply in your rack — servers, high-density switches, modern NVRs — requires a sine wave. Square-wave approximations cause PFC circuits to fault. This unit eliminates that failure mode entirely.
Deployment Considerations:
- Verify your circuit can supply the full rated load before commissioning — at 5000W draw, confirm breaker sizing and wire gauge match the load profile, not just the UPS input rating.
- Communication port availability (USB, serial, network management card slot) is not confirmed in available evidence — validate the specific communication options before specifying for automated shutdown or SNMP monitoring integration.
The PR5000RTXL2UC is the right call for a mid-density server room, surveillance head-end, or network operations rack where both power capacity and waveform quality are non-negotiable and the 2U footprint is already accounted for in the rack layout.
