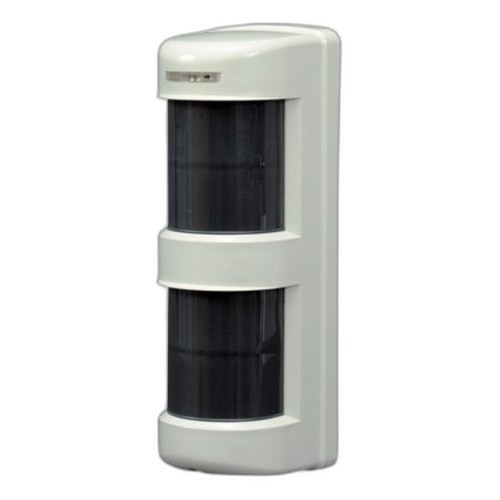

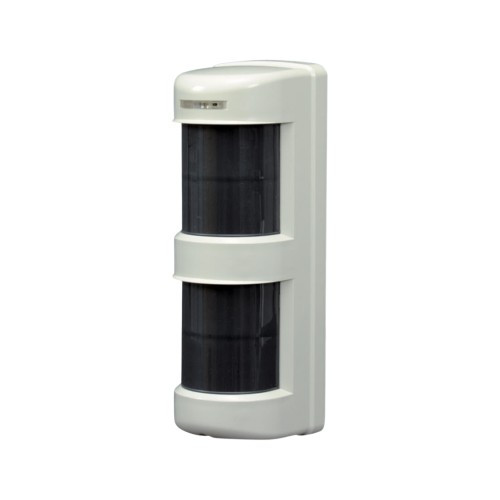

Takex MS-12TE Outdoor Dual-Zone PIR Motion Sensor
Overview
The Takex MS-12TE is a passive infrared (PIR) motion detection sensor engineered for outdoor security applications. Designed for perimeter monitoring and entry detection, the MS-12TE delivers dual-zone passive infrared sensing to support integration into comprehensive security systems. This outdoor-rated PIR detector is suitable for integrators deploying motion-triggered response capabilities in exterior environments where reliable thermal detection is required.
The dual-zone architecture provides flexible coverage patterns for different deployment scenarios. As a passive infrared detector, the MS-12TE responds to thermal energy changes within its detection field, making it effective for motion-triggered alarms, camera integration, and access control system activation in outdoor security installations.
Key Features
- Dual-Zone PIR Detection: Two independent infrared detection zones allow coverage customization and reduce false alarm sensitivity in mixed-environment deployments.
- Outdoor-Rated Design: Engineered for exterior mounting and environmental exposure, suitable for perimeter security and outdoor entry points.
- Passive Infrared Technology: Thermal-based motion detection that responds to body heat signatures without emitting active sensors or requiring line-of-sight optical alignment.
- Motion-Triggered Integration: Compatible with alarm systems, camera trigger input ports, and access control platforms for automated response workflows.
- Reduced False Alarm Profile: Dual-zone configuration helps minimize nuisance alarms from small animals, foliage movement, and environmental thermal transients common in outdoor settings.
- Flexible Mounting: Supports wall and post mounting for perimeter fence lines, building entry points, and gate applications.
Integration & Compatibility
The Takex MS-12TE functions as a stand-alone motion detector or integrates into larger security architectures through standard alarm loop connections and trigger outputs. Security integrators commonly wire motion sensor outputs to NVR external input ports for synchronized camera recording, door access control systems for entry event logging, and central station alarm monitoring for 24/7 perimeter supervision. The outdoor-rated form factor ensures long-term reliability in temperature fluctuation, moisture, and UV exposure typical of exterior installations.
Deployment Considerations
Outdoor PIR sensors require careful placement to balance coverage area against false alarm susceptibility. The MS-12TE's dual-zone design enables installers to configure independent detection patterns—for example, one zone monitoring a primary approach path and a second zone covering secondary access routes. Mounting height, thermal background environment, and seasonal temperature variations all influence PIR performance. Professional installation includes site survey to assess thermal background consistency and establish appropriate sensitivity thresholds.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Takex MS-12TE in several perimeter security deployments where reliable outdoor motion detection was critical to system performance. The dual-zone PIR architecture provides meaningful flexibility for integrators working in complex environments where single-zone sensors generate excessive false alarms.
Technical Highlights:
- Dual-Zone PIR Architecture: Independent infrared detection zones allow configuration of coverage patterns tailored to specific entry points and perimeter geometry, reducing sensitivity to non-threat thermal transients.
- Outdoor Environmental Rating: The MS-12TE is designed for exterior exposure, making it reliable for fence-line monitoring, building perimeter defense, and gate entry applications where moisture and temperature variation are continuous factors.
Deployment Considerations:
- PIR sensor performance is thermal-background dependent—install the MS-12TE away from heat sources (HVAC discharge, reflected sunlight on dark surfaces, vehicle exhaust) that generate false alarm patterns.
- Test dual-zone trigger logic during commissioning; configure zone sensitivity independently to match your specific perimeter topology and acceptable alarm thresholds.
The MS-12TE is a straightforward, proven choice for outdoor perimeter motion detection. Dual-zone configuration reduces false alarm burden compared to single-zone alternatives, and outdoor-rated construction ensures multi-year service life in exposed environments. Pair it with NVR motion trigger inputs or door control systems for synchronized event response.
