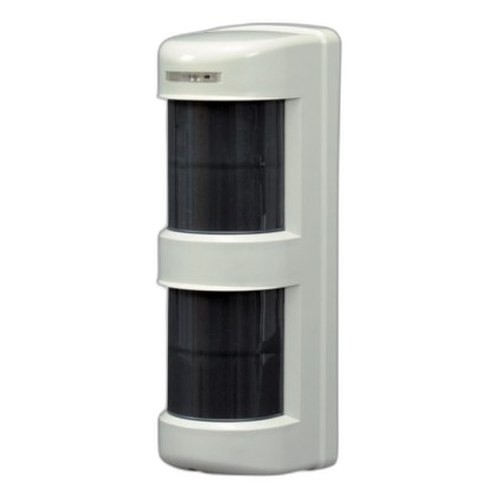

Takex MS-12FE Outdoor Dual-Zone PIR Motion Sensor
Overview
The Takex MS-12FE is an outdoor passive infrared (PIR) motion sensor engineered for perimeter security applications. Featuring dual-zone detection architecture, the MS-12FE delivers reliable motion detection in outdoor environments where false alarm reduction and consistent target identification are critical deployment requirements. This sensor is designed for integration into comprehensive security systems where motion detection serves as a first line of response triggering.
Key Features
- Dual-Zone Detection: Provides configurable detection zones to optimize coverage patterns and reduce nuisance alarms in mixed-traffic environments
- Outdoor-Rated Design: Engineered for exterior mounting with environmental protection suitable for perimeter and boundary applications
- PIR Technology: Passive infrared detection responds to thermal signatures without active transmission, enabling discreet installation
- Perimeter Integration: Designed to function as a component within layered security architectures including fence lines, building perimeters, and access control zones
- False Alarm Reduction: Dual-zone logic minimizes environmental triggers such as wind-blown vegetation and small animal crossings
- Security Integrator Ready: Supports standard hardwired installation into control panels and security management systems
Integration & Compatibility
The MS-12FE connects to security control panels via hardwired alarm circuits. The sensor's dual-zone architecture allows integration into sophisticated detection strategies where zone logic—such as AND/OR combinations—can be programmed at the control panel level to match site-specific security postures. Installers should evaluate detection patterns during commissioning to optimize sensor placement relative to expected foot traffic, vehicle approach vectors, and environmental conditions including wind direction and seasonal foliage movement.
Deployment Considerations
Outdoor PIR sensors require careful mounting height and angle selection to achieve optimal detection performance. The MS-12FE's dual-zone design supports flexible deployment patterns; installers can prioritize near-zone (immediate perimeter) and far-zone (boundary approach) detection independently. Environmental factors such as direct sunlight, radiant heat sources, and thermal reflections from paved surfaces warrant assessment during site survey. Mounting should avoid positions where heated exhaust, HVAC discharge, or reflected solar radiation could generate false triggers.
For applications requiring detection confirmation, many integrators cascade the MS-12FE with secondary sensors (additional PIR units, microwave sensors, or camera-based analytics) to establish multi-modal alarm verification. This layered approach reduces response overhead and improves security system cost-effectiveness in moderate-to-high-activity zones.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Takex MS-12FE across several perimeter security installations, and the dual-zone architecture delivers meaningful value in reducing nuisance alarms—particularly in environments with variable traffic patterns. The MS-12FE performs well in standard outdoor conditions where environmental stability is reasonable.
Technical Highlights:
- Dual-Zone Logic: The two-zone detection structure allows site-specific tuning; installers can weight near and far zones differently depending on perimeter topology and expected threat vectors
- Outdoor Environmental Tolerance: The sensor is rated for exterior exposure, making it suitable for fence-line, building-edge, and roof-edge perimeter applications
Deployment Considerations:
- During commissioning, walk detection patterns in both zones to establish baseline sensitivity; this step is critical for accurate alarm response tuning
- For high-traffic zones (parking lots, loading areas), consider pairing the MS-12FE with secondary confirmation sensors to avoid alert fatigue
- Position the sensor away from direct HVAC discharge and reflective surfaces; thermal stratification can generate spurious triggers if the sensor faces heated pavement or building exhaust
The MS-12FE is a solid choice for integrators seeking reliable outdoor motion detection without complex configuration. Its dual-zone design provides practical flexibility for mixed-use perimeters, and integration into standard hardwired panels is straightforward. Recommended for perimeter security strategies that emphasize detection reliability and operational simplicity.
