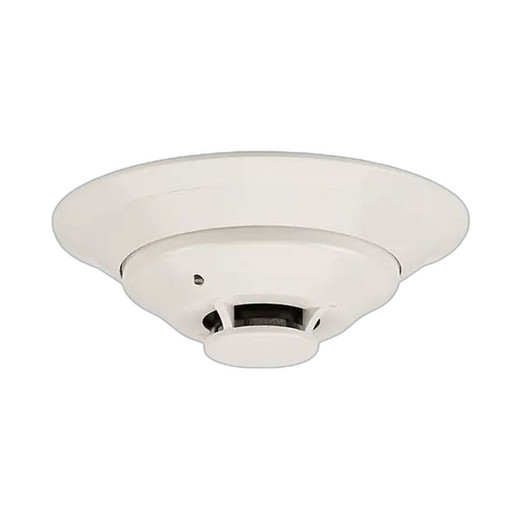

System Sensor 2D51 InnovairFlex Intelligent Plug-In Duct Detector

System Sensor 2D51 InnovairFlex Intelligent Plug-In Duct Detector

Overview

The System Sensor 2D51 is an intelligent, plug-in duct detector designed for air handling unit and ductwork applications. This addressable smoke detector integrates directly into HVAC systems to provide rapid smoke detection and alarm signaling. The 2D51 uses photoelectric sensing technology to detect visible smoke particles in duct airstreams, making it well-suited for early warning fire detection in building ventilation infrastructure. As a plug-in module, the unit simplifies installation and retrofit applications by eliminating the need for permanent wiring modifications to existing ductwork.

Key Features

• Addressable Detection: Network-compatible addressing allows individual detector status monitoring and identification on supervised fire alarm systems
• Photoelectric Sensing: Optical smoke detection technology responds to visible smoke in air distribution systems
• Plug-In Module Design: Pre-assembled cartridge eliminates field wiring complexity and reduces commissioning time
• HVAC Integration: Purpose-built for duct, air handler, and return-air applications with standard connection interfaces
• Addressable Reporting: Transmits individual detector status to compatible control panels for zone-specific alarm identification
• Low Air-Velocity Tolerance: Optimized performance in typical ductwork airflow conditions
• Maintenance Access: Cartridge design allows straightforward cleaning and service without system disruption
• UL-Listed Fire Detection: Compliant with UL 268 smoke detector standards for life safety applications

Installation & System Compatibility

The System Sensor 2D51 integrates with supervised fire alarm control panels equipped to support addressable photoelectric detectors. Installation requires a compatible duct housing and connection to the system's signaling loop. The plug-in cartridge approach reduces on-site assembly and allows rapid replacement if service is needed. Technicians should verify ductwork dimensions and airflow characteristics against manufacturer mounting specifications to ensure optimal sensor positioning and smoke exposure.

Operational Performance

The 2D51 delivers consistent smoke detection across standard HVAC ductwork applications. Photoelectric sensing provides responsive alarm signaling for visible smoke conditions. The addressable architecture enables facility managers to isolate detection events to specific air handling units or duct zones, streamlining emergency response and building system diagnostics. Routine cartridge maintenance preserves sensitivity in dust-laden air environments common in ventilation systems.

Eden Phillips

The System Sensor 2D51 is a straightforward choice for duct smoke detection in retrofit and new-construction HVAC applications. As an addressable detector, it provides the status granularity required by modern fire alarm panels and facility management systems. The plug-in cartridge design significantly reduces installation labor compared to hard-wired duct detectors—particularly valuable in retrofit scenarios where ductwork is already in place.

Technical Highlights:

• Addressable Smoke Detection: The 2D51 reports individual detector status to fire alarm panels, enabling zone-specific identification of smoke events and faster emergency dispatch routing
• Photoelectric Sensing: Optical technology in the 2D51 responds effectively to smoldering and visible smoke without false-alarm sensitivity to dust or construction particulate

Deployment Considerations:

• Verify that your fire alarm control panel supports addressable photoelectric detector modules before procurement—backward compatibility with legacy non-addressable panels requires gateway conversion modules
• Position the 2D51 in ductwork sections with consistent airflow and minimal velocity fluctuation; high-velocity transitions or damper locations can reduce smoke exposure to the sensing chamber

For integrators managing multi-zone HVAC systems, the 2D51's addressable reporting capability simplifies troubleshooting and provides insurance-grade documentation of detection response. Budget replacement cartridges at regular service intervals to maintain sensitivity in dusty air environments.
