APC by Schneider Electric Symmetra PX Intelligence Module - SYMIM4

APC by Schneider Electric SYMIM4 Symmetra PX Intelligence Module

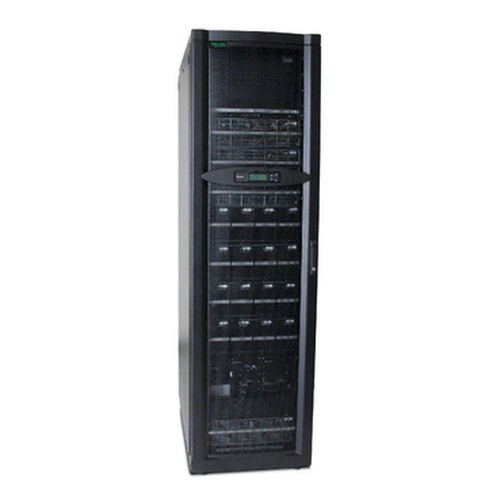

The APC by Schneider Electric SYMIM4 is the Intelligence Module designed for the Symmetra PX uninterruptible power supply platform — a purpose-built management component that installs at the front of the frame and handles the monitoring and control functions that enterprise-grade UPS systems require. If you're maintaining or expanding a Symmetra PX installation, this is the replacement or upgrade module to source.

Overview

The SYMIM4 ships as a single unit (PCE packaging, one module per package) and mounts at the front of the Symmetra PX chassis. At 10.03 lb (4.55 kg), it's a dense, rack-destined component — not a field-light accessory. The package dimensions of 9.00 × 16.50 × 2.00 in ensure standard handling through typical receiving and staging workflows. The module itself measures 1.75 in in height, consistent with standard 1U rack form factor integration within the Symmetra PX enclosure.

Key Features

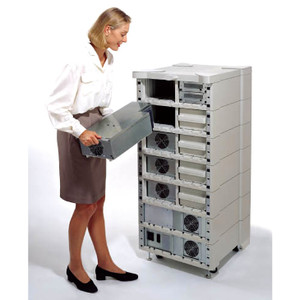

• Front-Mount Installation: The SYMIM4 installs from the front of the Symmetra PX chassis, which matters in data center environments where rear access is restricted by cable management or rack density — no need to pull the frame or clear rear cabling to service this module.
• Single-Unit Packaging: Ships as one discrete module per package, which simplifies receiving, inventory tracking, and spare-parts management for facilities teams maintaining multiple Symmetra PX units across a site.
• Purpose-Built for Symmetra PX: This is a APC by Schneider Electric platform-specific component, not a generic intelligence card. Verify your Symmetra PX model compatibility before ordering — mismatched intelligence modules are a common and costly staging error.

Compatibility and Integration Notes

The SYMIM4 is a component within the broader UPS and power management ecosystem. Before ordering, confirm the specific Symmetra PX frame generation your installation uses — APC's Symmetra PX line spans multiple generations with differing module compatibility requirements. Consult the Symmetra PX frame documentation or your power management accessories inventory records to match the correct intelligence module revision. If you are planning a larger power infrastructure project, reviewing a UPS selection guide can help validate module choices against system-level requirements.

Frequently Asked Questions

Q: What UPS platform is the SYMIM4 designed for?

A: The SYMIM4 is designed for the APC Symmetra PX uninterruptible power supply platform. It is a platform-specific intelligence module and is not a universal UPS management card.

Q: Where does the SYMIM4 install in the chassis?

A: The SYMIM4 is a front-mount module, installing from the front of the Symmetra PX frame. This is relevant in dense rack environments where rear access is limited.

Q: How many modules are included per order?

A: Each order of the SYMIM4 includes one (1) intelligence module. Unit type is PCE with a quantity of one per package.

Q: What are the physical dimensions and weight of the SYMIM4?

A: The SYMIM4 module is 1.75 inches in height and weighs 10.03 lb (4.55 kg). The shipping package measures 9.00 × 16.50 × 2.00 inches and weighs 10.52 lb (4.77 kg).

James Everett

The SYMIM4 is the intelligence layer for the Symmetra PX — not a component you want to source casually or accept a grey-market substitute on. At 10.03 lb and front-mount installation, it's engineered to fit a specific chassis bay, and the wrong revision in a production UPS frame is a support and reliability problem you don't want to discover during a power event.

Technical Highlights:

• Front-Mount Form Factor: 1.75 in height fits the Symmetra PX front bay — installation without rear-of-rack access, which matters in high-density colocation environments where rear cable clearance is zero.
• Unit Weight (10.03 lb): Dense for a module — handle with two hands during installation and confirm rail/bay seating fully before torquing fasteners; partial seating on a module this weight can stress the connector.
• Single-Unit Shipping: One module per PCE package (10.52 lb shipped) — straightforward for spare-parts receiving, but verify your PO quantity matches your frame count before the order ships.

Deployment Considerations:

• Platform specificity is the primary risk: the Symmetra PX line has multiple generations, and intelligence module compatibility is not universal across them. Cross-reference your frame's service tag against APC's compatibility matrix before ordering the SYMIM4.
• Do not treat this as a hot-swap without confirming your specific Symmetra PX generation supports live module replacement — some configurations require a controlled shutdown sequence to avoid alarming the frame or dropping monitored loads.

The SYMIM4 is the right module for a Symmetra PX refresh or spare-parts program in an enterprise data center or critical infrastructure environment where this specific platform is already deployed and standardized.
