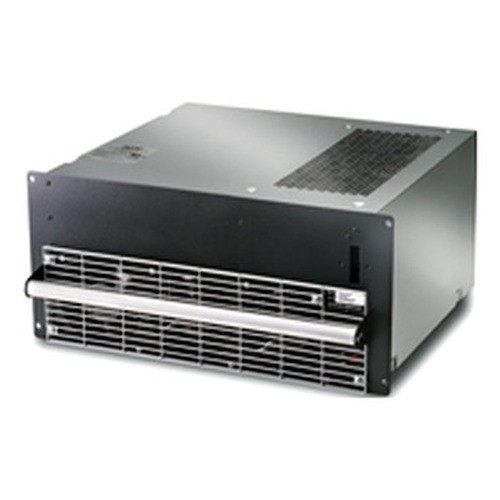

APC by Schneider Electric Symmetra PX Static Switch Module 208V - SYSW40KF

APC by Schneider Electric SYSW40KF Static Switch Module

Overview

The APC by Schneider Electric SYSW40KF is a 208V Static Switch Module designed for integration into Symmetra PX Uninterruptible Power Supply (UPS) systems. This module provides instantaneous transfer of critical loads between redundant power sources, ensuring zero downtime during power source failures or maintenance. It is essential for environments demanding the highest levels of power availability, such as data centers, telecommunications facilities, and advanced manufacturing floors where even milliseconds of interruption are unacceptable.

Compatibility

This SYSW40KF module is specifically designed for use with APC Symmetra PX UPS systems. It is compatible with the Symmetra PX 100kW, 160kW, 250kW, and 500kW configurations. Ensure your Symmetra PX frame is equipped with the necessary slots and firmware to support this static switch module for redundant power path management.

Installation Notes

Installation requires qualified personnel familiar with APC Symmetra PX UPS architecture. The module slides into a dedicated bay within the Symmetra PX frame. Proper grounding and connection to the redundant power feeds are critical. Torque specifications for internal power connections must be adhered to as per the Symmetra PX installation manual to ensure reliable operation and prevent thermal issues. The module draws power from the UPS system itself.

What's in the Box

• 1x APC Symmetra PX Static Switch Module SYSW40KF
• 1x Installation Guide
