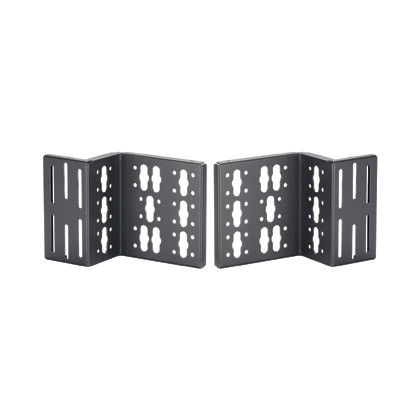

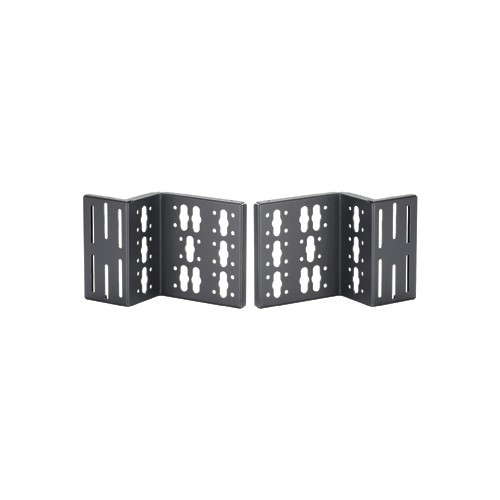

Panduit CVPDUB Vertical PDU Bracket Kit for 4-Post Racks

Panduit CVPDUB 4-Post Rack PDU Mounting Bracket Kit

The Panduit CVPDUB mounts power distribution units vertically to the rear rail of 4-post equipment racks, freeing front-rail space for active gear and improving hot-aisle/cold-aisle separation in high-density datacenter deployments. Steel construction supports the mechanical load of vertical PDUs without flex or sag, while the rear-mount position keeps input power cabling out of the airflow path and away from data/fiber runs. Integrators managing rack capacity in colocation cabinets, network closets, or edge server rooms gain usable U-space and cleaner cable routing when PDUs move from zero-U side channels to dedicated rear-mount positions. Black powder-coat finish matches standard rack hardware.

Key Features

• Vertical PDU mounting to 4-post rack rear rails reserves front-rail U-space for servers, switches, and patch panels
• Steel bracket pair handles the static and cable-pull loads typical of 15-30A vertical PDUs without deflection
• Rear-mount placement separates AC input feeds from low-voltage data cabling, reducing EMI coupling and simplifying code-compliant segregation
• 6" height (152 mm) and 3.6" width (91 mm) fit standard EIA-310 rack depths and clear typical CMA/vertical-manager profiles
• Part of Panduit's rack-infrastructure ecosystem; coordinates with PanZone cable managers, grounding busbars, and thermal-containment accessories
• RoHS-compliant construction meets procurement requirements for federal, healthcare, and municipal datacenter projects

Each bracket uses a simple hook-and-bolt attachment to the rear vertical rail, aligning PDU mounting holes without requiring the installer to support the full PDU weight during fastener engagement. The 6-inch vertical span distributes load across multiple rack perforations, preventing single-point stress concentrations that can deform thin-wall rack channel over time. Steel gauge is sufficient for PDUs up to approximately 40 lb loaded weight (typical for a 30A, 20-outlet vertical unit with attached C13/C19 cabling). Installers working in seismic zones or mobile/transport racks should verify that the PDU manufacturer's own seismic-rated brackets are compatible or specified separately; the CVPDUB is a general-purpose mount optimized for stationary rack environments. Black powder-coat finish resists corrosion in humidity-controlled environments and maintains appearance under UV exposure from overhead datacenter lighting.

Rear-vertical PDU mounting is the preferred topology when rack density exceeds 5 kW per cabinet and front-rail space is contested by blade servers, high-density switch fabrics, or stacked storage arrays. By relocating the PDU to the rear rail, the installer preserves contiguous U-space for revenue-generating equipment while maintaining code-required segregation between AC branch circuits and low-voltage data/PoE cabling. The vertical orientation also simplifies per-outlet labeling and circuit identification during maintenance, since outlets face the rear door rather than being buried in side-channel zero-U positions. In hot-aisle/cold-aisle containment designs, rear-mount PDUs stay outside the sealed airflow envelope, allowing input cord replacement or outlet testing without breaking containment seals or entering the hot aisle. The CVPDUB integrates into Panduit's broader rack-infrastructure strategy, which includes PanZone vertical cable managers (for structured fiber/copper dressing), grounding kits (for NEC/NFPA bonding), and blanking panels (for airflow control). Installers purchasing rack systems from Panduit or deploying in Panduit-standardized facilities will find that the CVPDUB bracket holes, spacing, and finish match the rest of the ecosystem, reducing mix-and-match compatibility surprises.

Each kit includes one pair of black steel brackets and the necessary mounting hardware for attachment to standard square-hole or round-hole EIA-310 rack rails. RoHS compliance ensures the product meets European and North American restrictions on hazardous substances, satisfying procurement requirements for government, healthcare, and sustainability-certified datacenter projects. For IT installers managing multi-rack deployments or datacenter expansions where power distribution, cable management, and airflow control must all coexist in a 19- or 23-inch rack width, the CVPDUB provides a straightforward, load-rated mechanical solution that keeps PDUs in position and out of the way.
