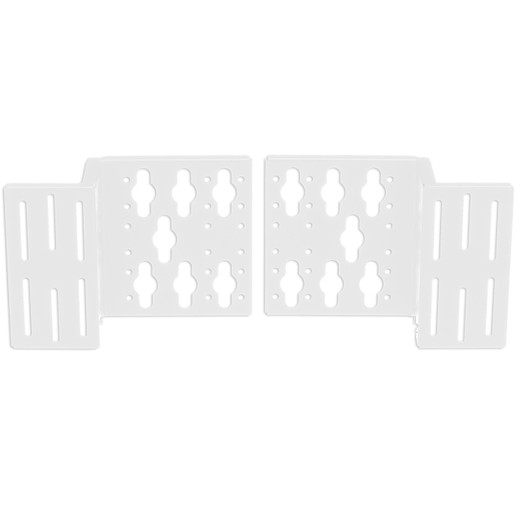

Panduit CVPDUBWH 4-Post Rack PDU Mounting Bracket Kit
Vertical PDU mounting in 4-post racks demands purpose-built hardware that won't flex under load or complicate cable routing. The Panduit CVPDUBWH bracket kit delivers steel-reinforced mounting for power distribution units in datacenter and network-room 4-post configurations. Each kit includes a pair of white steel brackets engineered to secure PDUs to the rear vertical rails, keeping AC circuits off the floor and away from signal paths. For integrators managing high-density installs where every RU counts and every routing decision affects airflow, these brackets turn the back of the rack into usable real estate for power distribution without sacrificing front-panel access or cable-management discipline.
Key Features
- Steel construction withstands datacenter vibration and repeated service access
- White powder-coat finish matches modern rack ecosystems and Panduit cable-management lines
- Pair of brackets per kit for balanced vertical PDU mounting on 4-post frames
- 3.6-inch (91mm) width accommodates standard PDU footprints and rear-rail spacing
- RoHS compliant for projects with environmental procurement mandates
- Integrates with Panduit's complete rack and cable-management portfolio
The brackets install on the rear vertical rails of square-hole or threaded 4-post racks, positioning PDUs in the cold aisle or out of airflow paths entirely. Steel construction prevents deflection when mounting loaded PDUs—critical when 20-outlet units with circuit breakers and monitoring modules reach 15+ pounds fully cabled. The 3.6-inch bracket width provides clearance for both slim 1.75-inch PDUs and deeper models with front-panel displays or network modules. Mounting hardware threads into standard rack holes; no welding, drilling, or custom fabrication required. The white finish blends with Panduit PanelMax, PanZone, and Wyr-Grid cable managers, maintaining the visual consistency that facility managers expect in glass-walled datacenters and colocation suites where rack aesthetics matter as much as function.
Deploying PDUs vertically on the rear rails frees up horizontal mounting space for patch panels, switches, and KVM drawers. In high-density builds—40+ ports per rack—every RU of front real estate directly impacts port count and service accessibility. Rear-mounted PDUs also simplify power-cord dressing: outlets face inward toward equipment, keeping AC drops short and eliminating the cord-drape issues that plague side-channel or horizontal PDU installs. For integrators running structured low-voltage alongside AC distribution, the rear-mount approach maintains clean separation between signal and power paths, reducing EMI risk on unshielded Ethernet runs and keeping NEC Article 800 compliance straightforward. The bracket pair supports symmetric mounting—one PDU per side for redundant feeds, or dual PDUs on one side for phased circuit distribution.
RoHS compliance addresses the procurement requirements in federal, healthcare, and municipal projects where material restrictions apply. The steel brackets meet the mechanical demands of environments with seismic bracing, frequent rack reconfiguration, or heavy equipment cycling—scenarios where plastic or aluminum alternatives fatigue over service life. For integrators building racks to Panduit's integrated system spec, the CVPDUBWH brackets extend the same installation logic across power, grounding, cable management, and labeling: one vendor, one design language, one support channel. In 4-post installs where PDU placement directly affects uptime, cooling efficiency, and technician safety, these brackets solve the mounting problem with the same steel-and-powder-coat rigor Panduit applies to ladder rack and overhead pathways.
