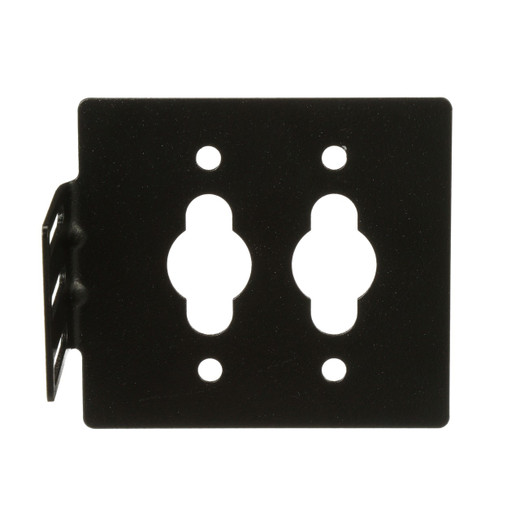

Panduit MA019 G5 PDU Universal Mounting Bracket
The Panduit MA019 delivers flexible PDU placement in standard 19" EIA racks without forcing you into fixed vertical-mount or zero-U positions. This two-bracket kit lets you position G5 and compatible PDUs horizontally, vertically, or offset from the rack rails — essential when rear-door heat exchangers, cable managers, or dense switch stacks block your typical zero-U mounting lanes. Each bracket measures 3.5" × 4" (89 × 102 mm) and provides tool-less PDU attachment points, so repositioning a PDU during a rack reconfiguration takes seconds instead of requiring a teardown.
Key Features
- Set of two brackets for independent left/right or stacked PDU mounting
- Universal fit for Panduit G5 PDUs and most IEC-style PDU chassis
- 3.5" × 4" footprint fits between rack rails without consuming U-space
- Tool-less PDU retention clips — reposition or swap PDUs without screwdrivers
- Steel construction supports full PDU load plus connected C13/C19 cord weight
- Compatible with square-hole, round-hole, and threaded rack rails
Data center and enterprise IT rack builds often paint you into a corner: the vertical PDU mounts you installed two years ago now block airflow for a new 1U switch stack, or your rear-door chiller sits exactly where the second PDU needs to go. The MA019 solves this by decoupling the PDU from rigid zero-U toolless rails. You mount each bracket independently to any pair of rack holes — front rails, rear rails, mid-depth positions, even offset vertically by 1U or 2U if adjacent equipment creates a keep-out zone. The brackets accept Panduit's G5 PDU family directly and will also hold most third-party PDUs that use the standard chassis mounting slots. The tool-less retention system means you slide the PDU into the bracket and snap the spring clips — no cage nuts, no Phillips screws, no risk of dropping hardware into a live server. When you need to trace a tripped breaker or swap a failed PDU, you release the clips and pull the unit in under 10 seconds.
This flexibility matters most in retrofit and high-density builds. Hyperconverged nodes, GPU compute sleds, and 25/100 GbE leaf switches all generate heat loads that demand rear-door cooling or aggressive hot-aisle containment — both of which conflict with fixed rear-mount PDU rails. By using the MA019, you can position your primary PDU on the rear rail as usual, then mount the redundant A-feed PDU on a front rail or mid-depth position where it clears the containment door. Cabinet manufacturers typically ship racks with zero-U PDU mounts welded or riveted in place; the MA019 bypasses that limitation entirely. Each bracket ships with universal mounting hardware for square-hole, round-hole, and threaded rails, so you're not hunting for M6 cage nuts or 10-32 screws in the middle of a provisioning sprint. The steel construction handles the full static load of a loaded 24-outlet PDU plus the cumulative weight of two dozen C13 power cords plugged in at capacity — no flexing, no sag, no need to derate because you're mounting horizontally instead of vertically.
The MA019 is the insurance policy for rack builds that evolve: when your initial floor plan assumed 3 kW per rack and you're now running 8 kW with liquid cooling, you need to move PDUs without ripping out welded rails or reordering cabinets. Pair this bracket kit with Panduit G5 metered or switched PDUs to maintain consistent mounting hardware across your entire fleet, or use it as the universal adapter for mixed-vendor environments where you're standardizing on rack layout but not PDU brand. Every data center team eventually faces the "PDU in the wrong place" problem — the MA019 ensures you solve it in minutes, not hours.
