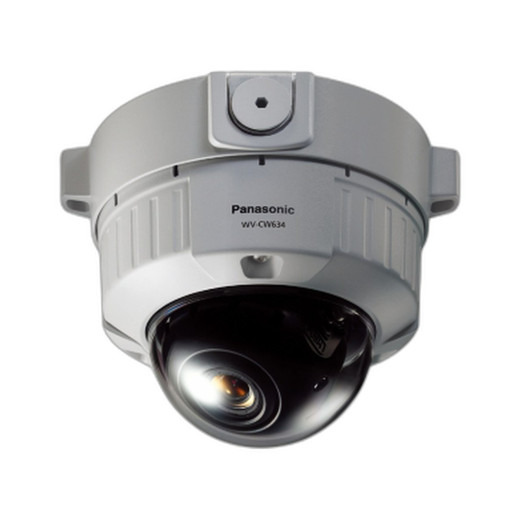

i-PRO WV-CW634S Super Dynamic 6 Vandal-Resistant Camera

i-PRO WV-CW634S Vandal-Resistant Dome Camera

Overview

The WV-CW634S is a fixed-dome vandal-resistant camera purpose-built for high-impact environments—retail floors, transit stations, public corridors, industrial facilities—where durability and clear evidence-grade imagery must coexist. The 1/3-inch interline transfer CCD sensor with 976 horizontal pixels achieves 700 TV lines typical horizontal resolution. Super Dynamic 6 technology fuses Super Dynamic imaging, Adaptive Black Stretch (ABS), and VMD (Video Motion Detection) to recover shadow and highlight detail in mixed-lighting scenes without the halo artifacts common to conventional HDR. The varifocal 3.8–8.0 mm CS-mount lens permits field-of-view adjustment without repositioning the camera body, a practical benefit when coverage expectations shift between commissioning and operational phases. IP66 rating delivers complete dust ingress protection and high-pressure water jet resistance, permitting outdoor mounting and wash-down facility deployment without supplementary enclosures. Day/Night operation with integrated IR cut filter (ICR) provides 24-hour visibility: 0.08 lux (color, F1.4 wide) and 0.008 lux (B/W, F1.4 wide)—sensitivity sufficient for dim corridors and night-time outdoor monitoring without auxiliary lighting. The vandal-resistant housing, 3-way hinge (horizontal, vertical, swivel rotation), and dual-mounting-bracket structure ensure secure installation and cable routing in confined spaces. Auto Back Focus (ABF) stabilizes focus automatically in both color and B/W modes, eliminating drift typical of manual focus systems. HLC (High Light Compensation) mitigates vehicle headlights, direct sun reflections, and other strong light sources that would otherwise saturate the sensor. Optional heater maintains operation from –30°C to +60°C, extending deployment into cold-climate and temperature-cycling environments.

Compatibility

The WV-CW634S integrates with i-PRO ecosystem control and transmission components, including Internal/Multiplexed Vertical Drive (VD2) synchronization for coordinated multi-camera installations. Mounting options include flush mount (F-type connector), surface mount (S-type), and optional embedded ceiling mount (with optional WV-Q169A accessory). The camera operates on 24 V AC or 12 V DC, suiting both traditional facility wiring and low-voltage DC systems. CS-mount lens mount permits lens interchange where field conditions require focal-length changes post-deployment. Verify voltage compatibility with your power infrastructure before ordering; the WV-CW630S variant supports 220–240 V AC for international deployments.

What's in the Box

• 1x CD-ROM (Operating Instructions)
• Fixing screws for camera mount bracket
