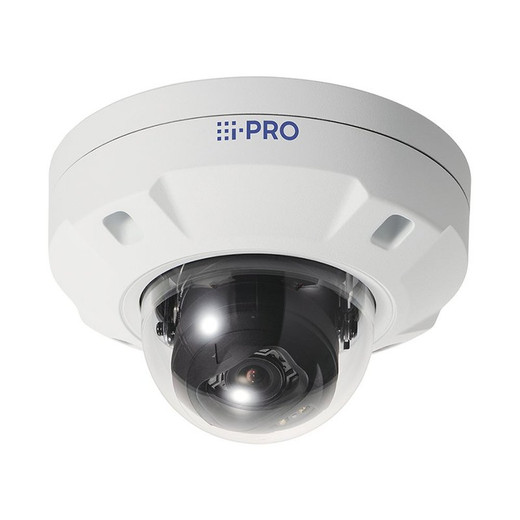

i-PRO WV-S2536LNA 2MP Outdoor Vandal-Resistant Dome Camera

i-PRO WV-S2536LNA 2MP Outdoor Vandal-Resistant Dome Camera

The WV-S2536LNA is a hardened outdoor dome designed for 24/7 perimeter surveillance in commercial, institutional, and critical infrastructure environments. This IP camera combines IP66/NEMA 4X weatherproofing with IK10 vandal resistance—meaning it tolerates direct rain, dust, and deliberate impact without operational compromise. The 1/2.8" CMOS sensor delivers 2MP (1920×1080) resolution with 0.007 lux color capability and full monochrome operation down to 0 lux when IR is active, eliminating the need to choose between light sensitivity and image clarity in transition zones.

Key Features

• 1/2.8" CMOS Sensor with Extreme Low-Light Performance: 2MP resolution operates at 0.007 lux (30IRE, F1.3) in color and 0 lux in monochrome with IR—so you capture usable imagery whether it's dusk, pre-dawn, or total darkness without supplemental site lighting infrastructure.
• 70-Meter Built-in IR LED Range: Integrated infrared eliminates external lighting costs and complexity on distributed outdoor installations. At 70 meters, coverage extends across large perimeter zones and loading areas without hot spots or wash-out.
• 3.1x Motorized Optical Zoom (2.9–9mm): The 2.9mm wide angle captures broad coverage; the 9mm telephoto allows framing of distant subjects without digital interpolation artifacts—useful for facial detail capture and license plate clarity on access roads.
• 144 dB Maximum Dynamic Range with Super Dynamic Mode: Handles extreme backlighting (bright sky + shadowed foreground) and rapid changes in ambient light typical of outdoor sites. Adaptive black stretch, highlight compensation, and fog compensation ensure usable imagery in harsh weather and glare conditions.
• H.265, H.264, and MJPEG Codec Support: H.265 cuts bandwidth and storage costs roughly 40–50% versus H.264 on the same scene complexity—a real factor when recording 24/7 across a multi-camera site. MJPEG remains available for edge recording or limited-bandwidth networks.
• IP66 & NEMA 4X Environmental Rating: Direct rain, salt spray, and dust ingress won't degrade optics or electronics. Skip this camera if you need full submersion (IP67); for pole-mount, wall-mount, and soffit installation, IP66 is standard-grade outdoor protection.
• IK10 Mechanical Resistance: Heavy-duty dome housing and bracket assembly withstand 20 joule impacts (equivalent to a 5 kg hammer dropped from 40 cm)—relevant in high-vandalism environments, parking structures, and accessible perimeter zones.
• Integrated Microphone for Two-Way Audio: Built-in microphone enables real-time audio capture and forensic playback; bidirectional communication simplifies operator intervention at access points without installing separate intercoms.
• On-Camera Facial Recognition Analytics: AI-driven facial detection runs on the camera itself, reducing NVR load and enabling edge-based event triggers and smart archiving. Forensic facial search cuts incident response time on multi-day searches.
• microSD Local Storage Support: On-board recording to microSD (card not included) provides edge-based backup independent of network availability—useful for compliance gaps and failover scenarios on remote installations.
• Enterprise Cybersecurity: HTTPS encryption, signed firmware protection, and ONVIF compatibility ensure integration into standard VMS platforms without proprietary dependencies. Firmware signing prevents unauthorized modifications on critical sites.
• PoE Class 0 (Under 13W): Standard 802.3af PoE powering means no separate power supplies or conduit runs. Current draw is low enough to support dozens of cameras on a single switch without power budget strain.

Integration & Compatibility

The WV-S2536LNA integrates into any standard NVR or video management system via ONVIF Profile S compliance. IP camera selection often hinges on codec efficiency and NVR capacity—H.265 support here is a meaningful advantage when pairing with older or bandwidth-constrained recording infrastructure. Two-way audio and edge analytics reduce reliance on server-side processing, important when deploying across multiple sites or on limited IT resources. Facial recognition runs locally on the camera, not on the NVR, so you don't sacrifice recording frame rate or resolution to enable forensic search capabilities.

When to Choose a Different Model

The WV-S2536LNA is a 2MP fixed-resolution device. If your deployment requires higher pixel density for distant facial capture or larger area coverage, consider a higher-megapixel variant in the i-PRO outdoor camera family—5MP, 8MP, or 4K models trade higher storage overhead for tighter framing flexibility. If you need PTZ (pan-tilt-zoom) coverage across a very large area in a single frame, a true PTZ model will be a better fit; the WV-S2536LNA's motorized zoom is fixed-position. For indoor-only deployments, non-weatherproof dome cameras will cost less and integrate just as well.

Deployment Scenarios

This camera excels in perimeter monitoring of warehouses, distribution centers, parking structures, and gated facilities where rain, dust, and impact damage are routine hazards. The combination of IP66 rating and vandal-resistant dome makes it a natural choice for accessible areas where protective cages are not feasible. Edge-based facial recognition is particularly useful for high-security access gates and loading dock verification. The 70-meter IR range covers most medium-duty outdoor zones without supplemental lighting, reducing long-term energy costs and eliminating the need for external lighting circuit design.

Frequently Asked Questions

Q: What is the maximum IR range on the WV-S2536LNA?

A: The camera features a 70-meter (230 feet) built-in infrared LED range, eliminating the need for external lighting on most outdoor installations.

Q: Does the WV-S2536LNA support H.265 compression?

A: Yes. The camera supports H.265, H.264, and MJPEG codecs. H.265 reduces bandwidth and storage requirements by 40–50% compared to H.264, making it ideal for 24/7 recording across multiple cameras.

Q: What is the IP and IK rating for this camera?

A: The WV-S2536LNA carries an IP66 (NEMA 4X) environmental rating and IK10 mechanical resistance rating, meaning it withstands direct rain, dust, salt spray, and 20 joule impacts without operational loss.

Q: Can the WV-S2536LNA be powered by standard PoE?

A: Yes. The camera draws under 13W and operates on standard 802.3af PoE Class 0 power, eliminating the need for separate power supplies or dedicated conduit.

Q: Does the WV-S2536LNA include edge-based analytics?

A: Yes. On-camera AI facial recognition runs directly on the camera, reducing NVR load and enabling edge-based event triggers, alerts, and forensic facial search without server-side processing overhead.

Q: Is the WV-S2536LNA compatible with standard VMS platforms?

A: Yes. The camera is ONVIF Profile S compliant and supports enterprise cybersecurity features including HTTPS encryption, signed firmware protection, and integration with any standard video management system without proprietary dependencies.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S2536LNA hits a practical sweetspot for outdoor warehouse and perimeter work where vandalism risk is real but you don't need PTZ mobility. I find the combination of 70-meter IR, IP66/IK10 hardening, and motorized zoom (2.9–9mm) handles most access-road and loading-dock surveillance without fuss. The edge-based facial recognition means you're not burning NVR CPU on frame-by-frame analytics, which matters when you're deploying a dozen of these across a distributed site.

Technical Highlights:

• 0.007 lux color + 0 lux monochrome (IR): You capture usable detail in pre-dawn and post-dusk conditions without boosting gain to unacceptable noise levels. Real benefit when incident response timelines depend on facial clarity at odd hours.
• 144 dB WDR with Super Dynamic Mode: Backlighting and rapid light shifts (common at dock doors and entry gates) don't wash out foreground or crush shadow detail. Dynamic range this wide eliminates the 'either the sky or the ground is usable' problem on outdoor sites.
• H.265 codec support: On a 24/7 multi-camera deployment, the 40–50% bandwidth savings versus H.264 is not a theoretical nicety—it directly reduces storage footprint and network load. If you're recording a dozen cameras at 30 fps, H.265 buys you another week or two of retention without upgrading your NVR.
• PoE Class 0 (under 13W): Means you don't have to spec PoE+ for this camera. On a network with 50+ devices, that's a real cost savings on switch infrastructure.

Deployment Considerations:

• IP66 is adequate for rain and dust, but not submersion. If your site has standing water or spray washdown, confirm this is the right rating tier.
• The motorized zoom is fixed-position—once you frame and focus, you're not panning or tilting without physically repositioning the camera. For dynamic coverage of a moving target zone, you'd need a PTZ unit.
• Facial recognition runs on-camera, which is good for NVR load, but it also means the accuracy of the AI model is tied to the camera's firmware version. Keep firmware current to benefit from model improvements.

Deploy this camera at gated entry points, loading docks, and perimeter poles where weatherproofing and impact resistance are non-negotiable and you need reliable low-light facial capture without NVR-side processing overhead. It's a pragmatic choice for high-utilization outdoor sites where uptime and image quality matter more than feature richness.

Key Specifications:
Color: White
