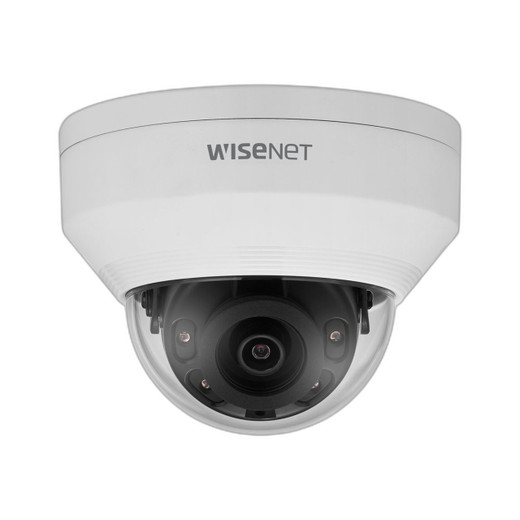

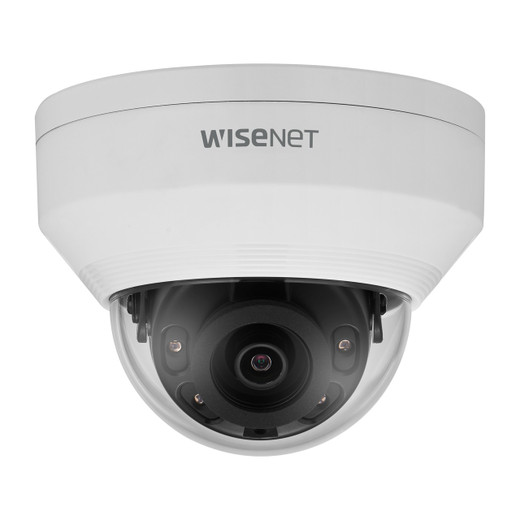

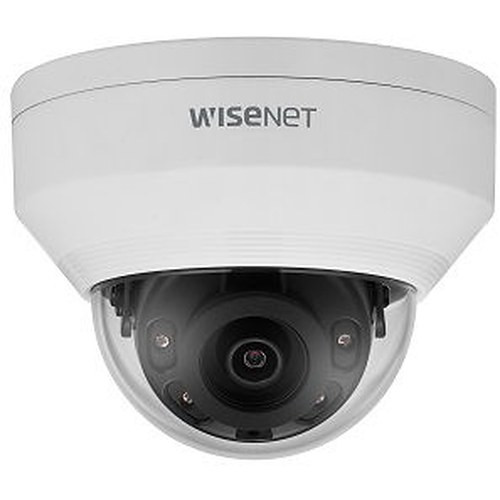

Hanwha ANV-L6012R 2MP Vandal-Resistant Dome Camera

Hanwha ANV-L6012R 2MP Vandal-Resistant Dome Camera

The Hanwha ANV-L6012R is a professional-grade outdoor dome camera designed for demanding surveillance environments. With 2MP resolution, 120dB Wide Dynamic Range, and IK10 vandal resistance, this camera delivers reliable performance in harsh conditions. Its IP66 rating ensures protection against weather, while IR illumination extends monitoring capability to complete darkness. Ideal for perimeter security, public spaces, and critical infrastructure protection.

Key Features

• 2MP CMOS sensor with 30fps capture at full resolution
• 114° horizontal field of view with 2.8mm fixed lens
• 120dB Wide Dynamic Range (WDR) for challenging lighting
• IR LED illumination effective to 30 meters (850nm)
• IP66 weather protection and IK10 vandal resistance
• H.265/H.264 compression with WiseStream II smart codec
• PoE powered (IEEE 802.3af, Class 2)
• Advanced analytics: motion detection, tampering, intrusion, virtual line crossing
• Micro SD card edge storage (up to 32GB)
• Multi-language support (16 languages)

Technical Specifications

Imaging & Optics: The 1/2.8" CMOS imaging device captures full 2MP resolution with exceptional low-light sensitivity (0.03 Lux in color mode, 0 Lux with IR). The F2.0 aperture and 2.8mm fixed focal length provide a wide 114° horizontal field of view, suitable for broad area coverage. Variable pan/tilt/rotate ranges (350°/67°/355°) allow flexible installation angles.

Image Enhancement: Multiple image processing technologies work together for consistent video quality. The 120dB Wide Dynamic Range handles extreme lighting contrast, while backlight compensation (BLC), Smart Spatial Noise Reduction (SSNR), and electronic shutter control optimize video in challenging conditions. Day/Night mode with automatic ICR (Infrared Cut-filter Removal) switches seamlessly between color and monochrome.

Video Streaming & Compression: Support for H.265 and H.264 with WiseStream II intelligent codec technology minimizes bandwidth and storage requirements without sacrificing quality. Multiple streaming profiles (up to 3) support concurrent user connections (6 unicast users) with both CBR and VBR bitrate control options.

Security & Network: Enterprise-grade security includes 802.1X network authentication, HTTPS/SRTP encrypted communication, IP-based access control, and firmware encryption. ONVIF Profile S/G/T compliance ensures interoperability. Audit logging tracks user, system, and event activities for compliance requirements.

Environmental Durability: Operating temperature range -30°C to +55°C with 0-95% humidity rating. IP66 protection guards against water jets and dust ingress. IK10 impact resistance withstands vandalism attempts. Compact design (120.3mm diameter, 410g) enables discreet installation.

Applications

Ideal for perimeter security, parking lots, retail entrances, industrial facilities, transportation hubs, and municipal surveillance. The combination of wide coverage, vandal resistance, and reliable night vision makes it suitable for unmanned or high-risk outdoor locations.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ANV-L6012R targets cost-conscious operators needing robust outdoor surveillance without premium features. Its 2MP resolution meets detection/identification tasks at practical distances (25m detect, 10m observe, 5m recognize), while 120dB WDR handles transitional lighting better than standard cameras. The IK10 rating distinguishes it from lighter-duty competitors in high-vandalism zones.

H.265 codec support future-proofs storage efficiency. However, fixed 2.8mm optics limit flexibility—multi-focal alternatives offer better adaptability. The 30m IR range is standard for this class.

Edge storage via microSD provides local failsafe recording but requires manual management. Best suited for fixed-coverage applications where wide-angle, vandal-proof operation justifies the trade-offs against PTZ or higher-megapixel alternatives.
