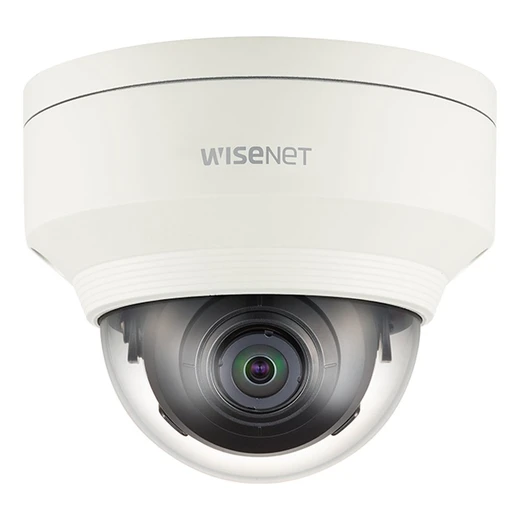

Hanwha XNV-6010 2MP Vandal-Resistant Dome Camera

Hanwha XNV-6010 2MP Vandal-Resistant Dome Camera

The Hanwha XNV-6010 is a compact 2MP dome camera purpose-built for indoor environments where physical durability and optical performance must coexist. The IK10 vandal rating and IP67 enclosure protect against deliberate tampering and dust ingress—critical in retail loss-prevention, corporate security, and high-traffic warehouse applications. The XNV-6010 (often searched as XNV 6010) draws under 5.5W via standard 802.3af PoE, eliminating separate power infrastructure and simplifying single-cable installation across dozens of cameras without straining your switch budget.

Key Features

• 2MP 1/2.8" CMOS sensor with 2.4mm fixed focal length: Delivers 139° horizontal field of view—wide enough to monitor retail floor sections or warehouse aisles in a single frame without the complexity of varifocal mechanics.
• 150dB Wide Dynamic Range (WDR): Balances bright windows and dark corners simultaneously. In retail environments with both skylights and interior aisles, WDR prevents blown-out or crushed detail that forces you to choose between exposure zones.
• Day/night IR illumination with 0.4m minimum focus distance: Passive infrared activation scales with ambient light, reducing false IR wash-out in transition zones. The 0.4m close-focus limit suits perimeter monitoring more than facial detail capture—pair with higher-megapixel models if identity verification is a deployment requirement.
• 30fps at 2MP with 0.055 Lux (color) / 0.0055 Lux (B&W) sensitivity: Maintains fluid motion tracking and usable detail in dimly lit storage areas or nighttime retail spaces without requiring external lighting upgrades.
• H.265/H.264/MJPEG adaptive bitrate compression: H.265 cuts storage overhead roughly 40–50% versus H.264 at equivalent quality—meaningful on edge-recording scenarios with dual microSD slots (up to 512GB total). Adaptive bitrate prevents storage overflow on busy motion days.
• IK10 vandal resistance and IP67 enclosure: Survives direct impact and sustained dust/moisture exposure. Skip this camera if you need full submersion (IP67 handles splashing and rain, not pool-side mounting). The compact aluminum dome integrates into corporate spaces without the industrial bulk of larger turrets.
• Dual microSD card slots with failover recording: Primary card fills; secondary card activates automatically if primary fails or reaches capacity. Reduces dependency on centralized NVR for 24/7 recording in branch locations.
• PoE (IEEE 802.3af Class 3) at 5.5W maximum: Standard 802.3af switch ports deliver full power without requiring PoE+ infrastructure. Enables cost-efficient camera scaling on existing enterprise Ethernet backbone.
• 8 motion detection zones with tampering and face recognition analytics: Motion zones limit false triggers from HVAC vents or lobby foot traffic. Tampering detection alerts on lens obstruction or physical removal. Face recognition supports queuing, dwell-time, and directional tracking for retail conversion metrics—not biometric identification.
• 32 privacy masking zones with mosaic or solid-color overlay: Masks restroom areas, cash registers, or sensitive inventory zones without encoding blind spots into the video stream.
• ONVIF Profile S/G/T and Wisenet open platform: Integrates with third-party VMS platforms (Milestone, Genetec, etc.) and Hanwha's proprietary ecosystem. Vendor flexibility prevents single-vendor lock-in on mixed-brand deployments.
• Operating range -30°C to +55°C: Handles temperature-controlled indoor spaces, including unheated warehouse sections in temperate climates. Exceeds typical office/retail specs; verify your environment stays within this window for year-round reliability.

Integration & Compatibility

The XNV-6010 streams simultaneously to up to 20 unicast or multicast users, supporting 10 independent profiles—useful for multi-bitrate VMS feeds and mobile client streams from the same camera. Security includes HTTPS/SSL encryption, 802.1X (EAP-TLS/LEAP) authentication, IP filtering, and user access logging. Alarm input/output (1 in / 1 out) triggers SD recording, FTP uploads, and email/SMS alerts on motion or tampering events. IP cameras in the same product family share firmware and management APIs, simplifying multi-site deployments.

Frequently Asked Questions

Q: Does the XNV-6010 support two-way audio?

A: No. The camera has no built-in microphone or audio input. If you require audio alerting (e.g., "Please step back from the register"), integrate a separate IP speaker or select a different model with onboard audio capability.

Q: What is the minimum lighting required for usable color video?

A: The XNV-6010 produces recognizable color video down to 0.055 Lux (roughly 1/10th of typical retail fluorescent lighting). Below that threshold, the camera switches to black-and-white IR mode at 0.0055 Lux. Test your actual lighting conditions before deployment to confirm acceptable detail retention.

Q: Can I integrate the XNV-6010 with Milestone XProtect or Genetec Security Center?

A: Yes. The camera supports ONVIF Profiles S, G, and T, which are compatible with most major VMS platforms. Confirm your specific VMS version and ONVIF support profile with your integrator before ordering.

Q: Is the XNV-6010 suitable for facial recognition applications?

A: The on-camera face recognition feature supports presence detection and queue analytics, not biometric identity verification. The 2MP resolution and fixed 2.4mm lens deliver limited facial detail—plan for higher-megapixel, longer-focal-length cameras (4MP+) if you need identity-level accuracy at distances beyond 6–8 feet.

Q: How much bandwidth does the XNV-6010 consume on the network?

A: H.265 adaptive encoding typically consumes 1–3 Mbps depending on scene motion and complexity. The WiseStreamII codec engine reduces bitrate further on static scenes. Reserve 5 Mbps per camera for margin, though actual consumption will often run 30–50% lower in typical retail/warehouse environments.

Q: What happens if the microSD card fills up?

A: With dual microSD slots configured for failover, recording automatically migrates to the secondary card. If both cards are full, the oldest footage is overwritten. Configure retention via the camera's web interface to match your organization's video retention policy (typically 30–90 days for loss prevention).

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-6010 targets mid-market B2B deployments where vandal resistance and low power consumption matter equally. Its 150dB WDR and adaptive H.265 codec engine (WiseStreamII) optimize bandwidth for storage-constrained edge recording scenarios. The dual microSD failover architecture and sub-6W PoE footprint make this camera cost-effective to deploy across branch locations or warehouse zones where centralized NVR management would be overkill.

Technical Highlights:

• 150dB WDR with backlight/highlight compensation: Simultaneous exposure of bright storefronts and dark inventory aisles—eliminates the need for scene-balancing or manual gain adjustments on mixed indoor/perimeter zones.
• H.265 adaptive codec (WiseStreamII): Reduces storage overhead 40–60% on 24/7 recording compared to H.264. On a 100-camera network, this translates to 3–6 fewer terabytes of NVR storage—a tangible cost reduction.
• 0.055 Lux color / 0.0055 Lux B&W sensitivity: Operates in retail dimly-lit aisles or warehouse nighttime conditions without supplemental lighting. IR activation is passive and scalable with ambient light, avoiding IR wash-out in twilight transitions.
• 5.5W maximum power draw: Standard 802.3af PoE. A 48-port switch can power up to 40+ cameras without requiring PoE+ upgrades—meaningful cost savings on switch capital and installation labor.
• IK10 rating with aluminum dome housing: Resists vandalism in high-traffic retail or warehouse mezzanine environments. Skip this if you need outdoor weathering—IP67 handles splash, not sustained rain or direct hose spray.

Deployment Considerations:

• 2MP resolution and 139° field of view trade facial detail for coverage: Ideal for retail floor monitoring and warehouse aisle surveillance; not suitable for identity verification beyond 8 feet. Pair with higher-megapixel models in adjacent focal points if loss-prevention requires face-level recognition.
• 0.4m minimum focus distance is relatively close: Useful for close-up detail at checkouts or small package inspection; verify your mounting distance supports this if you need sharp subject matter outside the 4–6 foot range.
• Dual microSD slots enable local 24/7 edge recording: Eliminates dependency on centralized NVR in remote branch locations. Configure failover recording via the web interface; verify your IT team has edge storage lifecycle policies in place before deployment.
• No audio input/output: If your workflow requires microphone input for audio alerting or call integration, select a model with onboard audio or plan external speaker integration.

The XNV-6010 is a solid workhorse for retail loss prevention, warehouse perimeter monitoring, and corporate office access control—environments where ruggedness and bandwidth efficiency outweigh need for megapixel density. Pair it with a network video recorder for centralized management, or deploy locally with microSD failover on unattended warehouse zones. IP camera selection guides can help you decide whether 2MP resolution suits your specific use case or if 4MP+ is necessary for your facial recognition or long-distance detail requirements.
