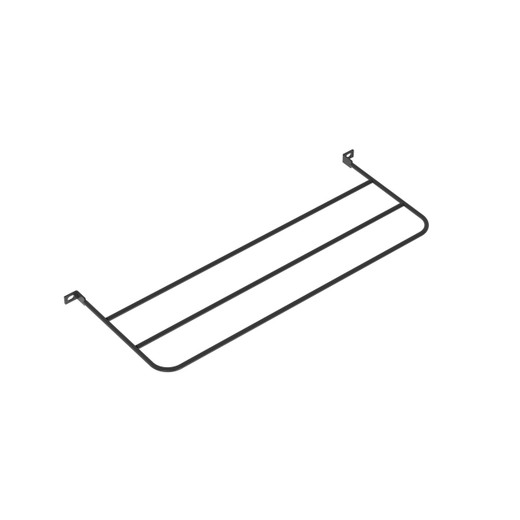

Panduit SRB19MDBL 19-Inch Strain Relief Bar
The Panduit SRB19MDBL is a multi-depth strain relief bar engineered to protect high-density copper cabling at patch panel termination points. Designed for 19-inch rack and cabinet installations, this steel bar distributes cable bundle weight across multiple tie-down points, preventing connector stress and jacket deformation that degrade insertion loss over time. The adjustable-depth mounting system accommodates shallow network enclosures through full-depth server racks without requiring different SKUs for different cabinet profiles—critical when standardizing across mixed environments or retrofit projects where exact rack depth isn't confirmed until install day.
Key Features
- Multi-depth mounting design fits 7" to 12" rack depths without adapter brackets
- 19.03" width spans full EIA-310 rack width with standard square-hole or threaded-hole mounting
- Steel construction with black powder-coat finish supports high-density Cat6A and fiber trunk bundles
- Low 0.5" (1RU/2) profile preserves rack space in congested telecom rooms and IDF closets
- RoHS compliant for GSA schedule and government installation requirements
- Pre-drilled Velcro/cable-tie anchor points eliminate field drilling and cabinet damage
Cable strain relief is often treated as an afterthought in structured cabling projects, but connector manufacturers universally specify maximum bend radius and pull tension limits at termination points—limits easily exceeded when 48-port patch panels support dense horizontal cabling without intermediate support. The SRB19MDBL mounts directly below patch panels (or above, in overhead-entry cabinets) to create a code-compliant service loop anchor point. Installers bundle cables with Velcro wraps or lacing bars, then secure bundles to the strain relief bar before final panel termination, transferring mechanical load away from the RJ45 or fiber connector. This approach prevents the "handlebar effect" where cable weight levers connectors out of their seats over time, a common failure mode in installations that pass initial certification but develop intermittent link errors within 18-24 months as connectors unseat by fractions of a millimeter.
The multi-depth design uses slotted mounting flanges that adjust along the bar's 7.5" front-to-back dimension. In shallow wall-mount cabinets (typical 10" internal depth), installers mount the bar toward the front; in full-depth 4-post racks (24"+ depth), they slide it rearward to align with the cable entry point from vertical managers or overhead ladder rack. This eliminates the stocking problem that plagues fixed-depth strain relief hardware—you no longer need separate SKUs for different cabinet lines or guess at depth requirements during takeoff. The black powder-coat finish matches Panduit's NetRunner and NetManager cable management families, maintaining visual consistency in customer-facing IDF installations or data centers with strict aesthetic standards for tour-ready spaces.
Steel construction is spec'd specifically for high-density environments where 48- or 96-port panels may concentrate 50+ pounds of copper or fiber cabling on a single 1RU termination field. Aluminum and polymer strain relief bars—common in residential or light-commercial applications—deflect under sustained load, eventually allowing cables to sag back against connectors. The SRB19MDBL's 12.7mm steel cross-section resists deflection even when supporting Cat6A trunk bundles (larger OD, stiffer jacket) in 10GBase-T backbone installations. It's supplied individually (not in contractor 10-packs like some Panduit infrastructure hardware), making it practical for small MACs/adds or pilot deployments, though the carton quantity of 10 indicates volume pricing is available for integrators standardizing across multi-building campus projects.
This strain relief bar is engineered for integrators who build to BICSI TDMM guidelines and TIA-568 structured cabling standards, both of which reference proper cable support intervals and strain relief at termination points. It's a small-ticket line item that directly impacts long-term link performance and reduces truck rolls for "ghost" connection issues traced back to mechanical stress. For mixed-depth cabinet environments, retrofit projects, or any installation where cable bundles exceed 20-25 cables per patch panel, the SRB19MDBL provides field-adjustable strain relief without the SKU proliferation or lead-time risk of ordering fixed-depth hardware before final rack dimensions are confirmed.
