Panduit SRBPPQBRKT Strain Relief Bar - Black

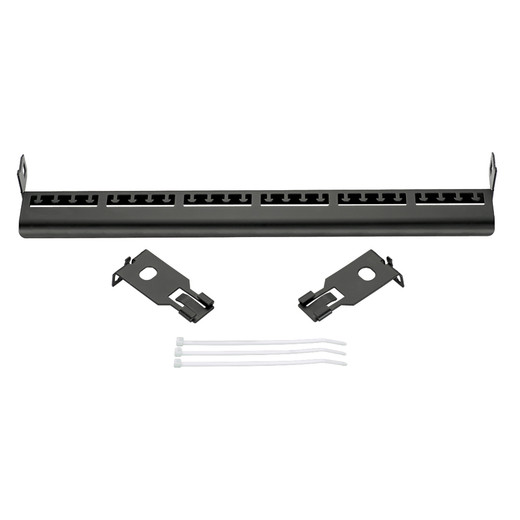

Panduit SRBPPQBRKT Quick-Release Strain Relief Bar

The Panduit SRBPPQBRKT is a tool-free strain relief bar engineered for patch panel installations where cable weight and service accessibility are critical concerns. Mounting directly to standard 19" patch panels, this quick-release design allows technicians to remove or reinstall the bar without dismounting the panel or reaching for tools—a workflow advantage during adds/moves/changes in live production racks. The included cable ties secure copper trunk bundles at the optimal relief point, protecting terminations from the mechanical stress that degrades punch-down contacts and RJ45 plug retention over time. Black cold-rolled steel construction provides durability without visual distraction in high-density telecom closets and datacenter cross-connects.

Key Features

• Quick-release mounting system—remove or reinstall the strain relief bar without removing the patch panel or using tools, reducing service window time in live racks
• Direct patch panel integration—mounts to standard panel form factors via built-in brackets, eliminating the need for separate vertical or horizontal cable managers in space-constrained installations
• Included cable ties—ships with ties sized for the bar's retention slots, so you’re not hunting for compatible hardware mid-deployment
• Cold-rolled steel construction—CRS material delivers the rigidity to support heavily loaded bundles (50+ cables per panel) without sagging or fastener pull-through
• RoHS compliant—meets EU Restriction of Hazardous Substances directive for deployments in regions with environmental procurement mandates
• 17.65" width—spans the full width of a 19" rack-mount panel, distributing bundle weight across the entire termination field rather than concentrating load at the center

Mechanical stress at the patch panel is the leading cause of intermittent link failures in structured cabling—cable weight pulls on terminations during routine cabinet access, degrading contact pressure on IDC slots and plug-to-jack interfaces. The SRBPPQBRKT addresses this by anchoring trunk bundles 1.72 inches in front of the panel face, creating a defined bend radius and transferring tensile load away from the connectors. The quick-release mechanism is the operational differentiator: a finger-lift tab disengages the bar from its mounting brackets in seconds, allowing you to swing bundles out of the way for panel replacement, toning, or behind-panel work without cable disconnection. This matters in environments where you can’t afford to break existing links—financial trading floors, hospital nurse call systems, casino surveillance networks—and where every minute of rack access time is accounted for in change control windows.

Cold-rolled steel provides the stiffness required in high-port-count scenarios. A fully populated Cat6A patch panel with 48 ports and 6-foot service loops generates approximately 15–20 pounds of suspended cable weight; lesser materials (stamped aluminum, plastic J-hooks) flex under this load, allowing cables to sag back against the panel and reintroduce the stress the relief system was meant to eliminate. The SRBPPQBRKT’s 5.6-inch depth and formed steel profile maintain horizontal geometry even when bundles are pulled taut during cabinet door closure or adjacent equipment installation. The black finish matches standard rack infrastructure, maintaining visual consistency in client-facing environments (NOCs, demo labs, executive briefing centers) where exposed cabling is visible through glass doors or open-frame racks.

This strain relief bar is designed for integrators managing structured cabling in telecom rooms, IDF closets, and datacenter meet-me rooms where patch panel density is high and service frequency is unpredictable. The tool-free design reduces the likelihood of FOD (foreign object debris) incidents—no screws to drop into live switch fabrics—and enables rapid reconfiguration when panel layouts change during tenant build-outs or rack consolidations. Ships in cartons of 10 units, supporting multi-rack deployments without SKU proliferation. RoHS compliance satisfies procurement requirements for federal, healthcare, and multinational enterprise projects operating under environmental directives.
