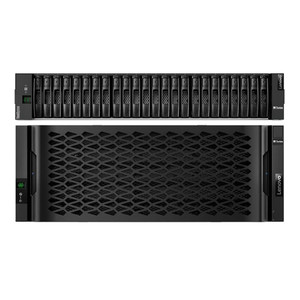

Lenovo Storage 4U60 Chassis - 7Y77A00BWW

Lenovo 7Y77A00BWW ThinkSystem Storage 4U60 32GB Controller

The Lenovo 7Y77A00BWW is a 32GB dual active-active storage controller designed for the Lenovo ThinkSystem Storage 4U60 Large Form Factor chassis — a rack-mount SAN/DAS storage array capable of scaling to 3.375 petabytes of raw capacity across 192 18TB LFF drives. This is an enterprise-grade building block for organizations that need serious block-storage density in 4U of rack space, with zero-compromise redundancy on every hot-swap component.

Overview

The 7Y77A00BWW slots into the ThinkSystem DE Series architecture as the 32GB per-controller variant (64GB total system cache across the dual-controller pair). The active-active controller configuration means both controllers handle I/O simultaneously with automatic load balancing — not an active-passive pair where one controller sits idle waiting for a failover event. Cache mirroring between controllers and flash-backed cache protection with battery-assisted destaging to flash ensure that in-flight write data survives a controller failure or power interruption without data loss. For storage architects evaluating enterprise storage solutions, that distinction between active-active and active-passive matters considerably for sustained throughput under real mixed workloads.

Key Features

• Dual Active-Active Controllers with 32GB Cache: Both controllers process I/O simultaneously with automatic load balancing — no idle standby controller consuming a slot. The 32GB per-controller cache (64GB system total) with mirroring between controllers means a single controller loss doesn't expose unprotected write data. Flash-backed protection with battery destaging covers the gap between a failure event and full cache flush to persistent media.
• Up to 3.375 PB Raw Capacity: The 4U60 chassis supports 192 LFF drives at up to 18TB each — 3.375PB raw in 4U. That's a meaningful density figure for cold storage, backup repositories, or large-scale surveillance video retention where per-TB cost and rack efficiency both matter.
• RAID 0, 1, 3, 5, 6, 10 + Dynamic Disk Pools: Full RAID coverage including RAID 6 (dual-parity, survives two simultaneous drive failures) and Dynamic Disk Pools, which distribute data and parity across all drives in the pool for faster rebuild times after a drive failure — critical when you're working with 192-spindle populations where rebuild windows on traditional RAID can span days.

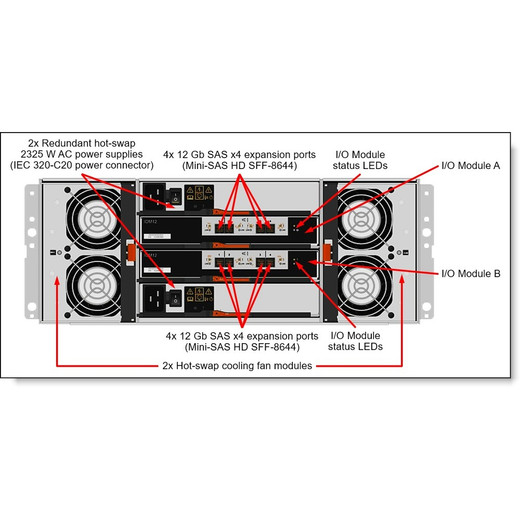

• 2325W Platinum AC Redundant Power Supplies: The 4U60 uses dual hot-swap 2325W (200–240V) Platinum-rated power supplies — sized appropriately for full 192-drive populations. Both are hot-swappable, so a PSU replacement doesn't require downtime. Platinum-rated efficiency keeps heat and operating costs in check in dense deployments.
• Redundant Hot-Swap Architecture: Controllers, I/O modules, drives, power supplies, cooling modules, and SFP+/SFP28 transceivers are all hot-swappable. For 24/7 production environments, that means maintenance windows for component replacement don't translate to storage outages.
• Comprehensive Software Feature Set: Base features include Dynamic Disk Pools, SSD read cache, snapshots (up to 128 targets), volume copy, thin provisioning (DDP only), and drive-level encryption (requires optional FIPS-certified drives). Optional licenses extend snapshot targets to 512 and add synchronous and asynchronous mirroring for DR replication scenarios.
• Broad OS Support: Validated against Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware vSphere — covering the hypervisor and bare-metal OS combinations that appear in enterprise and government datacenter environments without requiring custom driver work.

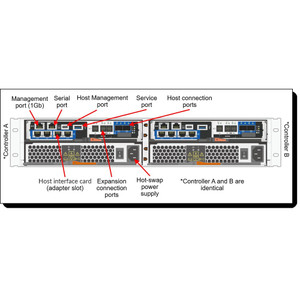

• Management Flexibility: Out-of-band management via dedicated 1GbE RJ-45 per controller keeps management traffic off the data path. Supported interfaces include System Manager web GUI, SAN Manager standalone GUI, SSH CLI, serial console, SMI-S Provider, and optional Lenovo XClarity integration. SNMP, email, and syslog alerting integrate with existing NOC tooling without additional middleware.
• Enterprise Security Controls: SSL, SSH, user-level security, RBAC, and LDAP authentication are included in the base platform — not bolt-on options. Role-based access control is particularly relevant for multi-tenant environments or any deployment subject to SOC 2 or similar audit requirements.
• Software Maintenance Included: Firmware and software maintenance is included in the base warranty and any Lenovo warranty extensions — no separate software subscription required to stay current on controller firmware.

Integration and Compatibility

The 7Y77A00BWW controller is part of the Lenovo ThinkSystem DE Series family, which includes the 2U12 (12-bay SFF), 2U24 (24-bay SFF), and 4U60 (60-bay LFF) chassis options. The 4U60 uses the 2325W PSU variant, distinct from the 913W supplies in the 2U form factors — verify your PDU and rack power delivery before ordering. For environments standardized on Lenovo networking and server infrastructure, optional Lenovo XClarity integration provides unified management across compute and storage. SMI-S Provider support enables integration with third-party storage management frameworks. Synchronous and asynchronous mirroring (licensed options) support site-to-site replication architectures for business continuity planning. Out-of-band management via the per-controller 1GbE RJ-45 port keeps management accessible even during data-path saturation events — a practical necessity in high-throughput bulk-ingest scenarios.

Frequently Asked Questions

Q: What is the difference between the 7Y77A00BWW and the 7Y77A00EWW or 7Y77A00AWW?

A: The 7Y77A00BWW is the 32GB per-controller variant for the ThinkSystem Storage 4U60 chassis, providing 64GB total system cache across the dual-controller pair. The 7Y77A00EWW and 7Y77A00AWW are 8GB per-controller variants for the same 4U60 chassis — 16GB total system cache. The 32GB variant is recommended for workloads with larger working sets or higher random I/O profiles.

Q: Does the 7Y77A00BWW support encryption?

A: Yes — drive-level encryption is a standard software feature, but it requires optional FIPS-certified drives. Encryption is not enabled by inserting standard drives; you must specify FIPS drives at configuration time.

Q: How many snapshot targets does the base configuration support?

A: The base software supports up to 128 snapshot targets. An optional software license extends this to 512 targets and also adds synchronous and asynchronous mirroring capabilities for replication.

Q: What power infrastructure does the 4U60 chassis require?

A: The 4U60 uses dual redundant hot-swap 2325W Platinum AC power supplies rated for 200–240V input. This is a higher voltage range than standard 100–240V — confirm your rack PDU delivers 200–240V before deployment. The 2U12 and 2U24 chassis use 913W supplies with the broader 100–240V range.

Q: What host operating systems are supported?

A: Validated host OSes include Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), and VMware vSphere.

Q: Is Lenovo XClarity required for management?

A: No — Lenovo XClarity is optional. The system ships with System Manager web GUI, SAN Manager standalone GUI, SSH CLI, serial console CLI, and SMI-S Provider support. XClarity integration adds unified management across Lenovo compute and storage infrastructure if your environment already uses it.

Jerry Tildsen

The 7Y77A00BWW is a 32GB dual active-active controller — and that active-active distinction is what I'd lead with in any pre-sales conversation. This isn't a hot-standby pair where one controller sits idle; both are handling I/O with automatic load balancing, and cache mirroring between them means 64GB of system cache is protected against single-controller loss with flash-backed battery destaging. For organizations sizing storage for large surveillance video retention or bulk unstructured data ingest, this controller paired with the 4U60 chassis gives you a path to 3.375PB raw in a single 4U enclosure.

Technical Highlights:

• 32GB Per-Controller Cache (64GB System): Cache mirroring with flash-backed battery protection means write data in flight is protected against both controller failure and ungraceful power loss — essential for write-heavy workloads like continuous video recording across many streams.
• Dynamic Disk Pools: DDP distributes data and parity across all drives in the pool, dramatically reducing rebuild times after a drive failure compared to traditional RAID on a 192-spindle array. On a full 4U60 population, DDP rebuild times can be orders of magnitude faster than RAID 6 rebuild on a full stripe — a real operational risk difference.
• 2325W Platinum Redundant PSUs: The 4U60's dual 2325W hot-swap Platinum power supplies are sized for full drive populations. Both are field-replaceable without downtime, and Platinum efficiency rating keeps the heat and power overhead in check across 24/7 operations.

Deployment Considerations:

• The 4U60 PSUs require 200–240V input — not the standard 100–240V range used by the 2U12 and 2U24 variants. Verify rack PDU voltage delivery before specifying this chassis in a new rack build; retrofitting a PDU after the fact is a project in itself.
• Drive-level encryption requires FIPS-certified drives specified at order time — you cannot enable encryption by swapping in standard drives after the fact. Plan the encryption requirement upfront if you're in a regulated environment.

This controller is the right fit for large-scale surveillance video repositories, backup target storage, or any 4U-constrained deployment that needs multi-petabyte raw capacity with full hot-swap redundancy and an active-active I/O path — not a general-purpose mid-range array where a smaller 2U24 form factor would suffice.
