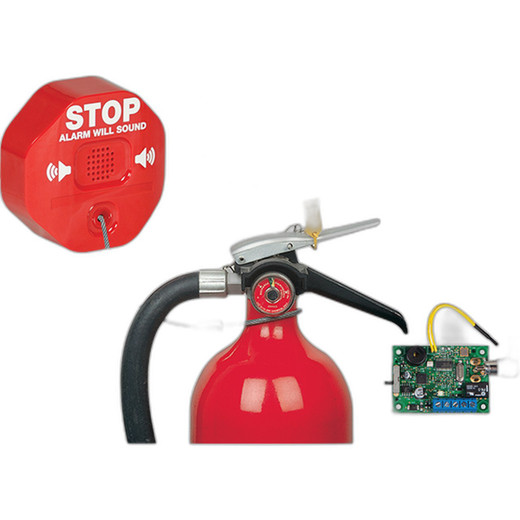

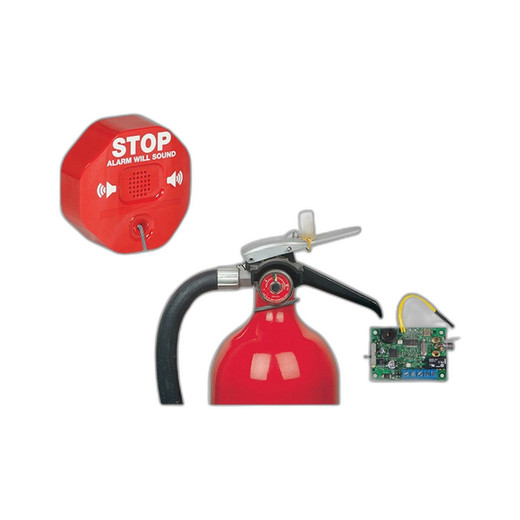

STI STI-6200WIR9 Wireless Slave Receiver
Overview
The STI-6200WIR9 is a single-channel wireless slave receiver operating at 9VDC, designed to provide remote control capability within door lock and strike assemblies. Deploy this unit when you need wireless communication between a master control unit and wired lock/strike hardware across multi-door installations. The slave receiver integrates into existing access control architectures where hardwired strike control would otherwise require separate conduit runs or power drops to each door.
Compatibility
The STI-6200WIR9 pairs with STI Wireless Theft Stopper® master control units and compatible lock/strike hardware. Confirm your master unit supports the wireless protocol used by this receiver before installation. The unit operates via wireless communication protocol and requires a 9VDC power supply sourced from your existing control panel or dedicated 9VDC power module. Voltage compatibility verification is mandatory—operating outside the 9VDC window will cause the receiver to malfunction or fail.
Installation Notes
Wire the STI-6200WIR9 to a dedicated 9VDC power supply within your control panel or remote power module. Confirm that your power source can sustain 9VDC under maximum load (consult the master unit datasheet for total current draw across all slave receivers). Position the receiver within range of your master transmitter to ensure reliable wireless communication; obstruction by metal conduit, electrical panel enclosures, or dense concrete may degrade signal strength. Test wireless pairing and door strike actuation before final deployment to rule out RF interference from nearby equipment.
What's in the Box
- 1x STI-6200WIR9 single-channel wireless slave receiver
