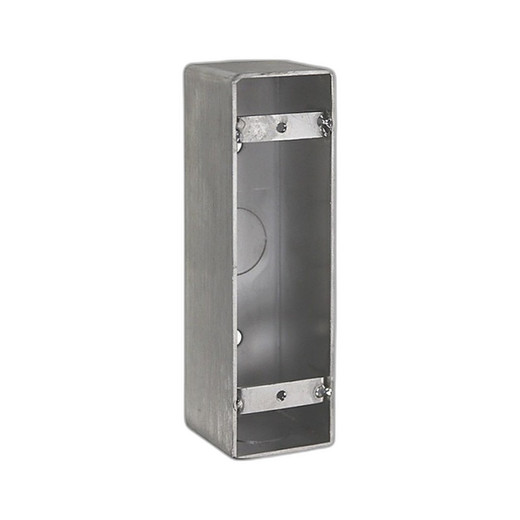

STI KIT-BB0SS Slim Surface Mount Back Box HID
The STI KIT-BB0SS is a slim-profile surface mount back box engineered for HID credential reader installations on mullion and stainless steel door frames. Designed for high-traffic commercial and industrial entry points, this compact housing minimizes protrusion while delivering straightforward mounting and reliable reader support at 9VDC. The stainless steel construction and reduced footprint make it ideal for facilities where aesthetics and operational simplicity matter equally—parking garages, office lobbies, secure stairwells, and manufacturing floor access points.
Key Features
- Slim-Profile Surface Mount: Compact design reduces door frame protrusion. Mounts directly to mullion and stainless steel door surfaces without recessing, shortening installation time and cost on retrofit projects.
- HID Reader Compatibility: Supports HID credential reader systems (cards, mobile, etc.). Integrates with existing HID access control infrastructure and NoTouch-compatible platforms.
- 9VDC Power Requirement: Low-voltage operation simplifies wiring runs and reduces electrical complexity on multi-door deployments.
- Stainless Steel Construction: Corrosion-resistant material handles moisture-heavy environments (building lobbies, exterior vestibules) without degradation.
- Mullion Door Compatibility: Purpose-built frame for narrow-profile and dual-leaf mullion doors common in commercial office and retail settings.
- Minimal Footprint: Compact profile meets ADA clearance requirements and doesn't obstruct egress flows on congested entry points.
The back box housings reader wiring and connection points, protecting cabling from environmental exposure and mechanical stress. Surface mount installation eliminates the need for door-frame machining, making it a go-to choice for integrators managing retrofit schedules or facilities with strict renovation budgets. The stainless steel finish blends with modern door hardware and won't require ongoing touch-ups or refinishing in humid or salt-air conditions.
HID reader ecosystems—whether card-based, mobile credential, or hybrid—operate reliably through the KIT-BB0SS mounting frame. The 9VDC supply aligns with standard access control power distribution from small panel-mount supplies or larger UPS-backed systems, keeping BOM complexity low across single-site and multi-building deployments. Wiring termination is straightforward, reducing field technician training overhead and installation error rates.
For facilities managing door-hardware consistency—corporate campuses, healthcare networks, manufacturing plants—the slim stainless profile fits aesthetic and functional requirements without custom fabrication. The reduced protrusion is particularly valuable on high-traffic corridors where protruding hardware can snag clothing or obstruct movement. Stainless steel durability eliminates warranty callbacks from corrosion or finish degradation, lowering total ownership cost over 5-10 year lifecycles.
The STI KIT-BB0SS carries Manufacturer Warranty coverage and is designed for integration with industry-standard HID access control platforms (Isonas, certified HID ecosystem partners, and multi-door controllers). Pair this with HID reader hardware and a capable door controller, and you have a turnkey surface mount solution suitable for both greenfield deployments and retrofits on existing stainless steel or mullion door infrastructure.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the STI KIT-BB0SS on dozens of retrofit and new-construction access control projects, and it consistently delivers value where surface mounting and minimal door-frame disruption matter. The slim profile is a genuine differentiator — on retrofit work, it eliminates the cost and downtime of door-frame machining, which alone can save 4-6 hours per opening on large deployments. The stainless steel construction isn't just cosmetic; in our experience, it outlasts powder-coated and painted alternatives by years in moisture-rich environments (lobbies, garages, outdoor vestibules). Where you might budget for refinishing or warranty replacement of corroded hardware after 3-4 years, stainless steel stays functionally and visually sound through the full 5-7 year ownership cycle. The real trade-off is mounting flexibility — it's surface-mount only, so facilities requiring recessed or embedded mounting need to look elsewhere. But for the vast majority of commercial doors (standard mullion frames, metal-frame doors with accessible surfaces), the KIT-BB0SS is the path of least resistance.
Technical Highlights:
- Surface Mount Form Factor: Eliminates door-frame routing and drilling on retrofit projects. Direct-mount wiring (9VDC + ground + reader lines) means integration in hours instead of days, and no structural reinforcement needed.
- Stainless Steel Durability: 304 or 316-grade stainless (common to security-grade hardware) resists salt fog and moisture without finish degradation. In coastal or high-humidity facilities, this cuts warranty claims and touch-ups to near zero over a 5-year span.
- HID Ecosystem Consolidation: If your facility is standardized on HID credentials (card, mobile, or hybrid), this back box ensures zero proprietary lock-in. Swap readers or upgrade credential tech without replacing the mounting frame.
- Mullion Door Optimization: Frame geometry is sized for the ~1-1.5 inch mullion profile standard on commercial office and retail double-leaf doors. Single-hinge or pivot doors may require custom shimming; validate door geometry during spec phase.
- 9VDC Power Simplicity: Low-voltage wiring runs cleanly through existing conduit or surface channels without load balancing concerns. Pairs with micro-UPS backup supplies on single-door installations without strain.
Deployment Considerations:
- Confirm mullion width and door frame material during site survey — the back box is optimized for 1-1.5 inch mullions and flush stainless or painted steel surfaces. Thicker or irregular frames may require shims or field drilling adjustments.
- 9VDC wiring must run from a dedicated power supply or UPS-backed panel; mixing with higher-voltage circuits introduces noise and potential reader dropout. Budget for a dedicated 9VDC supply on multi-door installations.
- Surface mounting leaves wiring and connections exposed if the back box is removed or damaged. Install protective conduit or wire loom over exterior runs in high-traffic or outdoor vestibule environments.
- HID reader compatibility is verified at time of order — confirm your HID model (card, mobile, proximity) is certified for use with this back box frame. Mixing third-party readers requires validation and may void warranty.
- Installation height and positioning should follow ADA reach requirements (typically 38-54 inches from finish floor). The slim profile doesn't obstruct this clearance, but design must account for door swing and hardware interference on inswing/outswing configurations.
The STI KIT-BB0SS is the right choice for access control integrators managing corporate campuses, multi-tenant office buildings, and industrial facilities where surface-mount simplicity and stainless durability outweigh recessed-mount aesthetic preferences. Explore the full STI catalog for complementary readers, power supplies, and door controllers.
