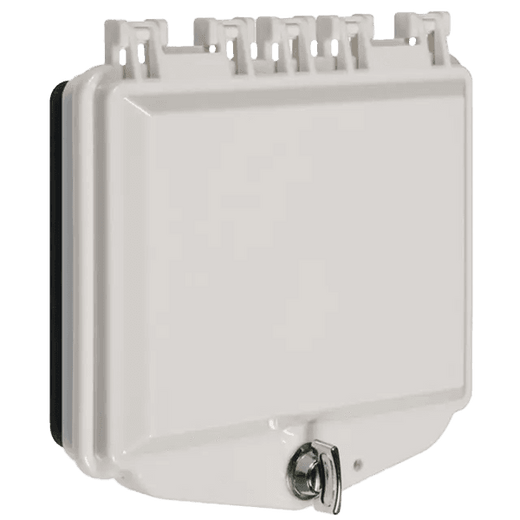

STI STI-7511A-OW Polycarbonate Enclosure with Deep White Back Box
Overview
The STI-7511A-OW is a lockable polycarbonate enclosure designed to house strike assemblies and similar door control hardware in access control installations. The deep white back box configuration provides mounting depth for strike mechanisms while the polycarbonate cover protects against physical damage, vandalism, dirt, and environmental exposure. Typical working range is −40°F to 250°F (−40°C to 121°C), making it suitable for both indoor and outdoor mounting on door frames where strike protection is required.
Compatibility
This enclosure integrates with STI strike mechanisms and similar access control door hardware requiring vandalism and weather protection. The unit ships with spacers, integrated hinge, and mounting hardware. Verify that your specific strike assembly or control device fits the internal dimensions and mounting hole pattern before ordering. Installation hole locations are provided in the product documentation for field reference.
Installation Notes
Fast and easy installation with included gaskets and hardware. The cover features an integrated hinge for simple access. The enclosure is lockable via key lock or thumb lock options (select at time of order). Mounting is suitable for flat surfaces on Type 3R industrial control panels and door frame applications. The polycarbonate material carries a 94V-2 flammability rating and is backed by a three-year manufacturer warranty against breakage and damage in normal use.
What's in the Box
- Polycarbonate cover with integrated hinge
- Deep white back box
- Spacers (formed polycarbonate)
- Mounting hardware
- Gaskets
