STI EFSPBKT Swing Panel Bracket Kit
Overview

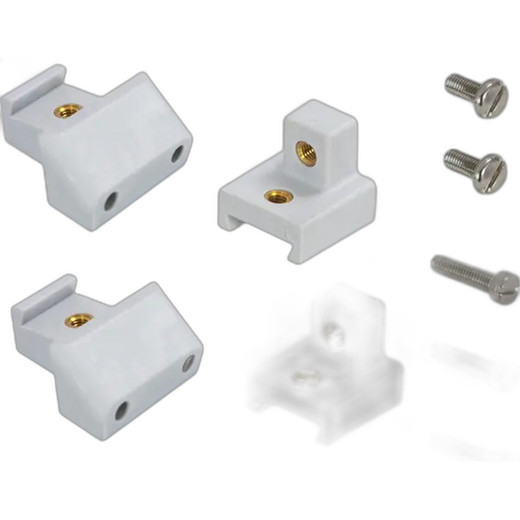

The STI EFSPBKT is a mounting bracket kit designed to secure swing panel assemblies in door-mounted access control installations. Operating at 9VDC, this bracket provides the structural support needed to integrate swing panels into commercial and institutional security door frames while maintaining environmental protection. The kit addresses the specific challenge of reliably mounting larger weather-exposed access control panels without compromising door integrity or restricting legitimate device operation.
Compatibility
The EFSPBKT is engineered for use with STI swing panel assemblies in standard door frame mounting configurations. Verify door frame material (wood, metal, masonry) and load-bearing capacity before installation. The 9VDC operating voltage integrates with typical access control power supplies and backup battery systems common in commercial security deployments. Confirm that your door strike system and frame specifications support the bracket's physical footprint and mounting method before procurement.
Installation Notes
Position the bracket assembly over the mounting location and mark the four fixing holes using a 7mm drill bit for masonry or standard wall anchors for wood/metal frames. Secure the bracket frame with the provided wall fixings, ensuring all four points are firmly fastened to prevent panel deflection or misalignment. For surface-mounted configurations, use gasket inserts to seal unused cable entry holes and protect against environmental ingress. Verify that all fastening hardware is corrosion-resistant when installing in outdoor or high-moisture environments. Do not exceed the rated load capacity for the bracket assembly.
