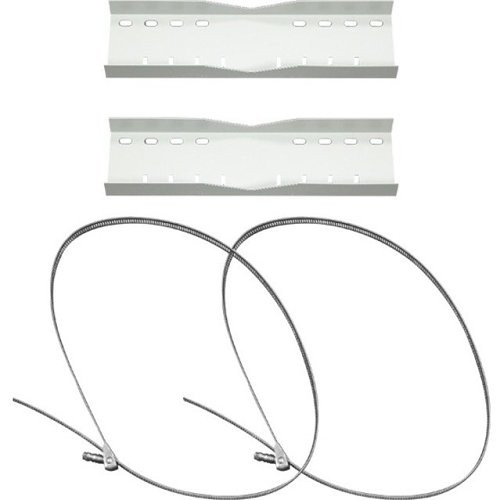

STI STI-PMK1012 Pole Mount Bracket Kit
Overview
The STI-PMK1012 is a pole mount bracket kit engineered for door access control strike installations where the strike mechanism must be secured to a pole-mounted frame rather than directly to the door or frame. This is the correct choice when your door opening architecture requires external pole bracing — common in wide openings, glass doors, or installations where the strike cannot be surface-mounted to the frame itself. Operates at 9VDC, consistent with standard electromagnetic strike systems in access control architectures.
Compatibility
The STI-PMK1012 is compatible with 9VDC strike systems deployed in standard door frame configurations. Verify that your specific strike model supports pole-mount attachment and that the mounting pattern aligns with your door frame geometry. Consult the strike system datasheet and your installation drawings before ordering to confirm frame-to-pole spacing and any cable routing constraints.
Installation Notes
Pole mount installation requires stable structural support — the pole itself must be anchored to building framing or concrete to prevent deflection under strike load. Position the bracket to align the strike with the door latch receiving point; misalignment will cause binding and premature latch wear. Drill pilot holes using a 7mm masonry bit if mounting into concrete or masonry pillars. Secure all fasteners firmly — vibration from repeated door closure can loosen hardware over time. Ensure cable entries use appropriate gaskets to prevent water ingress if installed in outdoor or wet environments. Test the strike under full power draw before commissioning.
What's in the Box
- Pole mount bracket assembly
- Mounting fasteners and spacers
- Installation template
