Digital Watchdog Star-Light Plus Universal HD - DWC-D3863WTIRW

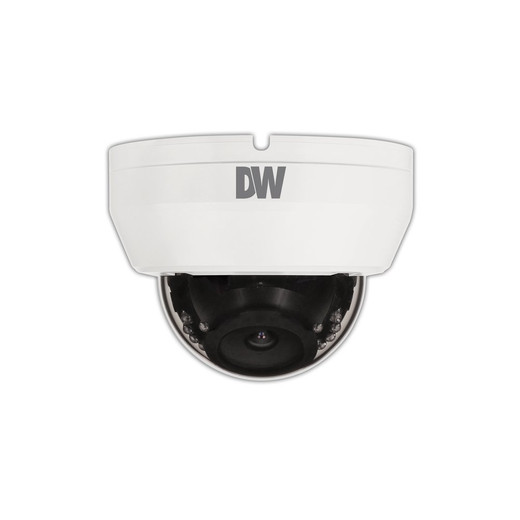

Digital Watchdog DWC-D3863WTIRW 4K Varifocal Dome Camera

Overview

The Digital Watchdog DWC-D3863WTIRW is a 4K indoor dome camera built around a 1/1.8" CMOS sensor that delivers 3840×2160 resolution at 15fps or scales down to 1080p/30fps for bandwidth-constrained networks. The varifocal 3.6–10mm lens (100.3° to 46.4° field of view) lets you dial in coverage without swapping optics, and the 120dB WDR coupled with 0.1 lux color sensitivity handles mixed-lighting retail floors, office lobbies, and warehouses where you need both detail and speed. Dual-voltage power (DC12V or AC24V) means flexible wiring — no separate PSU required for most setups. The 100ft IR range supports evidence-grade night recording without external lighting.

Key Features

• 4K resolution (3840×2160): Captures fine detail for license plates, facial recognition, and document capture — but only at 15fps. Drop to 1440p or 1080p to reach 30fps if your VMS or bandwidth demands the frame rate; the 4MP resolution at 30fps still delivers crisp evidence-grade footage without the storage penalty of full 4K.
• Varifocal 3.6–10mm lens with motorized iris: Adjust focal length without opening the dome — saves time in multi-camera deployments and lets you fine-tune coverage after installation. The p-iris maintains consistent exposure across the entire zoom range, reducing glare and blown-out backgrounds.
• 120dB WDR (Wide Dynamic Range): Handles scenes with extreme contrast — sunlit windows opposite dark corners — without HDR halo artifacts. This is critical in lobbies with glass doors or retail environments where half the field of view might be backlit.
• 0.1 lux color sensitivity plus 100ft IR: Sees color detail in very dim conditions (0.1 lux is roughly a parking lot with minimal ambient light), and switches to IR mode in complete darkness. The 100ft range covers most indoor ceiling heights and mid-sized rooms without IR bleaching. Expect usable B/W footage in true darkness; IR wash will blur fine detail beyond 60–70ft depending on reflective surfaces.
• 3D/2D digital noise reduction: Cleans up the grain in low-light frames without smearing motion — important for analytics or frame-by-frame evidence review where temporal smoothing creates false confidence in moving subjects.
• Programmable shutter (1/30–1/30,000s): Lock the shutter to freeze fast motion (loading docks, doorways) or open it fully in darkness to maximize light intake. Most integrators leave this in auto, but manual control is there if you need to match frame rate to motion blur expectations.
• Dual-voltage power (DC12V or AC24V): Run off a 12V PoE injector or traditional 24V transformer — no vendor lock-in. DC12V with IR on draws 6.98W; AC24V draws 6.38W. Both stay well under 95W, so you won't strain a modest power budget on large camera counts.
• HD-TVI, HD-CVI, HD-Analog, and CVBS outputs: This is a hybrid camera — it can feed into legacy analog DVRs, newer TVI/CVI recorders, or modern IP systems with a converter. Useful if you're upgrading incrementally or running mixed-generation infrastructure.

Integration & Compatibility

The DWC-D3863WTIRW is fundamentally an analog/hybrid camera with multiple video outputs (TVI, CVI, analog, CVBS). It does not have native IP streaming or ONVIF support — you'll need a capture card or TVI/CVI receiver to ingest it into an IP VMS like Milestone XProtect or Axis Camera Station. If you're running a pure IP network, budget for a TVI-to-IP converter or integrate it into a Digital Watchdog TVI/CVI NVR ecosystem. Its plastic indoor housing and polycarbonate dome are rated for general indoor use (10–90% RH, non-condensing, -4°F to 122°F operating range) — not suitable for direct weather exposure or high-humidity server rooms.

What's in the Box

Package contents are not detailed in the available specifications. Contact pre-sales engineering for exact included accessories (mounting bracket, fasteners, lens adjustment tools, etc.).

Frequently Asked Questions

Q: Does the DWC-D3863WTIRW support ONVIF or IP streaming?

A: No. This is a hybrid analog/TVI/CVI camera. It does not have native IP output or ONVIF support. You'll need to feed it into a TVI/CVI receiver or use a third-party converter to integrate it into an IP VMS.

Q: What's the warranty on the DWC-D3863WTIRW?

A: 5-year manufacturer warranty.

Q: What's the maximum IR range?

A: 100 feet (approximately 30 meters). Actual usable range depends on reflective surfaces and scene contrast; expect optimal detail within 60–70 feet indoors.

Q: Can I use this camera outdoors?

A: No. The DWC-D3863WTIRW has a plastic indoor housing and polycarbonate dome, rated for indoor use only. It is not weatherproof or UV-hardened for outdoor mounting.

Q: What power supply do I need?

A: Either DC12V or AC24V. The camera draws 6.98W (DC12V, IR on) or 6.38W (AC24V, IR on). You can use a standard 12V or 24V transformer or PoE injector depending on your infrastructure.

Q: What video formats does it output?

A: HD-TVI, HD-CVI, HD-Analog, and CVBS (composite). It does not output H.264 or H.265 streams natively — it is not an IP camera.

Karl Wilson

I've deployed the DWC-D3863WTIRW in retail environments and small-to-medium office buildings where you're upgrading from pure analog but not ready to go full IP. The 1/1.8" CMOS sensor paired with the varifocal 3.6–10mm lens gives you real flexibility — you adjust zoom without touching the dome, and the 120dB WDR keeps backlit doorways and checkout areas from washing out. The key thing: this is not an IP camera, so if your VMS is Milestone or Axis native, you'll need a TVI converter in the chain.

Technical Highlights:

• 120dB WDR with 0.1 lux color sensitivity: Handles retail floors with overhead skylights and dark aisles in the same frame. You get usable color even at 0.1 lux (roughly a parking lot after dusk), then flips to IR in complete darkness. That range covers most indoor scenarios without external lighting.
• Dual voltage (DC12V / AC24V) at 6–7W: Run it off a PoE injector, a traditional transformer, or even a battery backup without power-budget concerns. The IR on draws under 7W, so 8–10 cameras don't blow a typical 24V circuit.
• 4K at 15fps, 4MP/1440p at 30fps scaling: If your NVR or network can't handle 4K frame rate, drop to 1440p and get 30fps — still 4 megapixels, still evidence-grade, cuts your bitrate roughly in half.

Deployment Considerations:

• This is a TVI/CVI/analog hybrid, not ONVIF. If you're integrating into an IP-only environment, budget for a converter or ensure your NVR has TVI input cards. No vendor lock-in, but no plug-and-play either.
• Plastic housing and polycarbonate dome — indoor only. High humidity (>90% RH) or temperature swings below -4°F will shorten dome life. If you're in a humid warehouse, skip this and reach for a stainless-steel alternative.

Best fit: retail, office lobbies, and light warehouse monitoring where you own the cabling and can run either 12V or 24V. Skip it if you're pure IP with no TVI receiver, or if you need outdoor capability.
