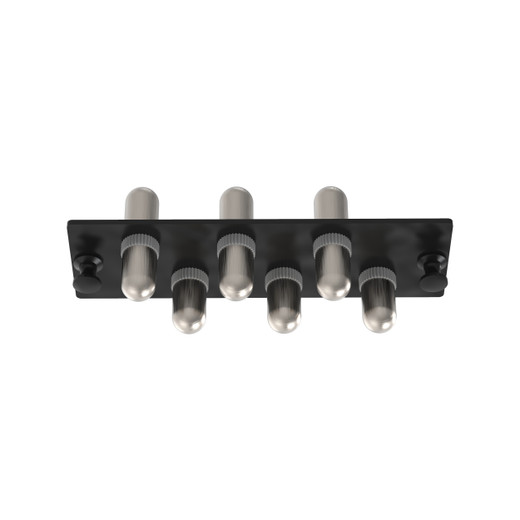

Panduit FAP6WSTZ Opticom 6-Port ST Fiber Adapter Panel

The Panduit FAP6WSTZ delivers front-loading fiber connectivity for datacenter and telecom installations where ST simplex connections are required. This OS2-rated adapter panel houses six ST simplex adapters in a compact steel chassis designed for Opticom enclosure integration. Ideal for enterprise MDA/HDA cross-connects, carrier handoff terminations, and campus fiber backbone distribution where legacy ST infrastructure must interface with modern patch panel systems. The front-access design eliminates the need for rear rack access during MACs (moves, adds, and changes), critical in dense 4-post installations or wall-mount applications with limited clearance.

Key Features

• 6 ST simplex adapters in 1.38" × 4.3" footprint for high-density fiber termination
• OS2 single-mode rated (9/125µm) with backward compatibility for OM1/OM2/OM3/OM4 multimode fiber
• Zirconia ceramic split sleeves deliver <0.2dB insertion loss and long-term dimensional stability
• Steel body construction provides mechanical durability and EMI shielding in high-density racks
• Front-loading design enables patching and troubleshooting without rear rack access
• TIA 942 datacenter cabling standard compliant for main, horizontal, and equipment distribution areas
• Integrates with Opticom wall-mount enclosures, rack-mount chassis, and zero-U bracket systems
• Meets and exceeds TIA/EIA-568-C.3 fiber optic cabling standards, RoHS compliant

The ST connector remains prevalent in telecom central offices, campus fiber backbones, and legacy enterprise installations despite the industry shift toward LC and MPO connectors. This panel addresses those environments with professional-grade materials: each adapter uses a zirconia ceramic split sleeve rather than polymer alternatives, ensuring consistent ferrule alignment and minimal insertion loss degradation across thousands of mating cycles. The 2.5mm ST ferrule standard and bayonet twist-lock mechanism provide secure physical contact even in high-vibration rack environments. OS2 single-mode rating certifies the panel for 9/125µm fiber deployments supporting 10GBase-LR, 40GBase-LR4, and 100GBase-LR4 links at distances up to 10km and beyond, while the published OM1/OM2/OM3/OM4 compatibility allows the same panel to terminate multimode fiber during infrastructure migrations or mixed-mode deployments.

The panel's 35.2mm height and 109.1mm width align with Panduit's Opticom modular enclosure system, allowing integration into 1U/2U rack-mount chassis, wall-mount boxes, and zero-U vertical cable managers without adapter. TIA 942 data center cabling standard specifies cross-connect requirements for main distribution areas (core switching), horizontal distribution areas (aggregation switching), and equipment distribution areas (server/storage connectivity)—this panel satisfies all three zones when deployed with appropriate Opticom mounting hardware. The front-loading architecture is particularly valuable in 2-post open-frame racks, wall-mount installations behind equipment, and 4-post racks with cable management arms or rear-mounted power distribution where traditional rear-access fiber panels create accessibility problems. For large-scale deployments, the 10-pack carton quantity and compact form factor reduce logistics overhead while maintaining per-port costs competitive with field-terminated ST connectors.

Steel body construction differentiates this panel from polymer-chassis alternatives common in price-sensitive markets. The steel housing provides a grounding path for static discharge, resists deformation under the mechanical stress of ST bayonet insertion/removal cycles, and offers EMI shielding that prevents RF interference in mixed copper/fiber rack environments. Zirconia ceramic split sleeves maintain ferrule alignment tolerances under temperature cycling and physical stress better than phosphor bronze or polymer sleeves, directly impacting long-term link performance in carrier-grade and mission-critical installations where connector wear leads to increasing insertion loss and eventual link failure. The black finish integrates with standard rack aesthetics while the TIA/EIA-568-C.3 compliant port spacing accommodates low-profile ST boots without cross-port interference during high-density patching operations.
