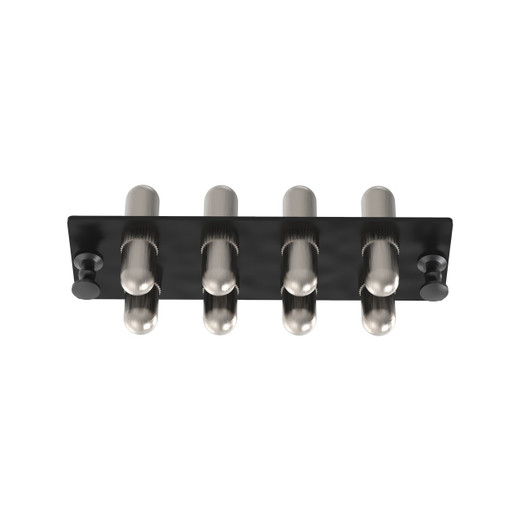

Panduit FAP8WSTZ Opticom 8-Port ST Simplex OS2 Fiber Adapter Panel

The Panduit FAP8WSTZ Opticom fiber adapter panel delivers eight ST simplex connections in a compact front-loading form factor engineered for single-mode OS2 deployments. Built with steel adapter bodies and precision zirconia ceramic split sleeves, this panel provides the mechanical stability and insertion-loss performance required for TIA-942 data center cross-connects in main distribution areas (MDA), horizontal distribution areas (HDA), and equipment distribution areas (EDA). Designed to integrate seamlessly with Panduit's Opticom wall-mount and rack-mount enclosures, the FAP8WSTZ addresses the density and cable-management challenges faced by network installers working in space-constrained telecommunications rooms and equipment closets.

Key Features

• Eight ST simplex adapters in a 4.3-inch-wide front-loading panel for high-density fiber termination
• OS2 single-mode fiber rating supports 9/125 μm cable for long-haul and campus backbone applications
• Steel adapter bodies with zirconia ceramic split sleeves ensure mechanical durability and low insertion loss
• Front-loading design allows adds, moves, and changes without disturbing adjacent connections or rear cable routing
• Mounts directly into Opticom wall-mount enclosures, rack-mount chassis, and zero-U adapter panel brackets
• TIA/EIA-568-C.3 compliant and exceeds industry insertion-loss and return-loss specifications
• Black finish integrates with standard rack aesthetics in enterprise and telecom environments
• RoHS compliant for environmentally responsible installations

The FAP8WSTZ's construction centers on precision-manufactured zirconia ceramic split sleeves—the industry standard for single-mode fiber alignment. Zirconia's hardness (second only to diamond) prevents wear from repeated mating cycles, maintaining sub-0.5 dB insertion loss over thousands of connector insertions. The steel adapter body provides structural rigidity that prevents ferrule misalignment under cable stress, a common failure mode in plastic-body adapters when patch cords are pulled at an angle during moves or troubleshooting. Each ST simplex adapter uses a bayonet-style coupling mechanism that locks with a quarter-turn, providing tactile confirmation of full engagement—critical in dimly lit equipment rooms where visual confirmation is difficult. The panel's 1.38-inch overall height allows stacking multiple panels vertically within a single enclosure, maximizing port density per rack unit. The 4.3-inch width fits standard Opticom mounting footprints without requiring adapter brackets or shims, simplifying installation and reducing the risk of misalignment that can stress fibers during cable dress. The simplex configuration—one fiber per adapter port—suits point-to-point trunk runs and passive optical LAN architectures where transmit and receive fibers terminate at different physical locations, as opposed to duplex LC or SC connectors that bundle both fibers in a single housing.

In TIA-942 data center architectures, the FAP8WSTZ serves as the physical-layer termination point for backbone fiber trunks running between distribution areas. A typical deployment might use the panel in a horizontal distribution area enclosure to terminate eight single-mode fibers from an MDA, with patch cords connecting onward to access switches or media converters. The front-loading design is particularly valuable in zero-U configurations where the panel mounts on the side of a network rack—technicians can access the adapters without reaching behind equipment or disrupting rear cable pathways, a significant advantage when troubleshooting link failures during after-hours maintenance windows. For building backbone applications, the OS2 rating supports transmission distances up to 10 km at 10 Gbps (10GBASE-LR) and 40 km at 1 Gbps (1000BASE-LX), making the panel suitable for campus fiber rings and inter-building links where distance exceeds multimode fiber's 300-meter reach. The panel also supports OM1, OM2, OM3, and OM4 multimode fibers via the same ST interface, allowing mixed-mode deployments where legacy 62.5/125 μm OM1 fiber coexists with modern 50/125 μm OM3 or OM4 cable—common in phased data center upgrades where older horizontal fiber remains in service while new backbone trunks are deployed to single-mode standards.

The Opticom ecosystem integration extends to cable management accessories designed specifically for the FAP8WSTZ form factor. Panduit's fiber routing guides and bend-radius protection trays mount alongside the panel inside Opticom enclosures, ensuring that fibers maintain the 30 mm minimum bend radius required by TIA-568-C.3 to prevent signal attenuation and long-term fiber fatigue. When deployed in wall-mount enclosures, the panel's front-access architecture allows installers to route incoming trunk cables through rear knockouts, secure them with strain-relief brackets, and dress patch cords from the front—separating trunk cable management from user-accessible patching to reduce the risk of accidental fiber damage during routine MAC operations. In rack-mount applications, multiple FAP8WSTZ panels can be installed in a single Opticom chassis alongside LC and SC adapter panels, creating a mixed-connector patching environment that accommodates the heterogeneous equipment mix typical in enterprise IT deployments where storage area networks (SANs) use LC connectors while legacy telecom gear retains ST interfaces. The eight-port density strikes a balance between port count and per-port accessibility—sufficient spacing to manipulate individual connectors without disturbing neighbors, yet compact enough to fit three panels (24 ports total) in a standard 2RU Opticom chassis.

ST connector technology remains prevalent in industrial control networks, legacy telecom installations, and specialized applications like fiber-to-the-antenna (FTTA) systems for distributed antenna networks in large venues. The bayonet coupling mechanism provides superior vibration resistance compared to push-pull LC or push-twist SC connectors, making ST adapters the preferred choice for environments subject to mechanical shock—manufacturing floors, transportation hubs, and outdoor equipment shelters. The FAP8WSTZ's steel construction further enhances this durability advantage, with the adapter body capable of withstanding side-load forces up to 10 pounds without ferrule misalignment, compared to 3-5 pounds for typical plastic-body adapters. For retrofit projects where existing ST-terminated fiber infrastructure must integrate with new equipment, the panel provides a clean migration path: terminate legacy ST patch cords on one side of the panel and use ST-to-LC hybrid patch cords on the equipment side, allowing a phased transition to LC connectivity without re-terminating building fiber. This approach reduces downtime and eliminates the fusion-splicing labor required to convert trunk cables from ST to LC connectors.

The FAP8WSTZ meets TIA/EIA-568-C.3 performance requirements for fiber optic connector and adapter specifications, ensuring interoperability with ST connectors from any manufacturer compliant with the same standard. Typical insertion loss measures below 0.3 dB, with return loss exceeding 20 dB for PC (physical contact) polish and 40 dB for UPC (ultra-physical contact) polish connectors. RoHS compliance makes the panel suitable for projects with environmental procurement mandates, including government contracts and LEED-certified building fitouts where hazardous substance restrictions apply. The front-loading architecture reduces installation labor by 20-30 percent compared to rear-load panels in retrofit scenarios where cable pathways are already congested—installers can mount the panel, route trunk cables, and snap in pre-terminated cassettes from the front without threading connectors through tight rear openings. Packaged individually with ten panels per carton, the FAP8WSTZ accommodates both single-enclosure deployments and multi-building projects where consistent adapter specifications across dozens of telecommunications rooms ensure interchangeable spare parts inventory and simplified technician training. For data center operators planning capacity expansion, the panel's compatibility with Opticom's modular enclosure system allows infrastructure to scale in eight-port increments—add a panel when a new switch stack comes online, rather than over-provisioning a 96-port chassis that sits half-empty for years.
