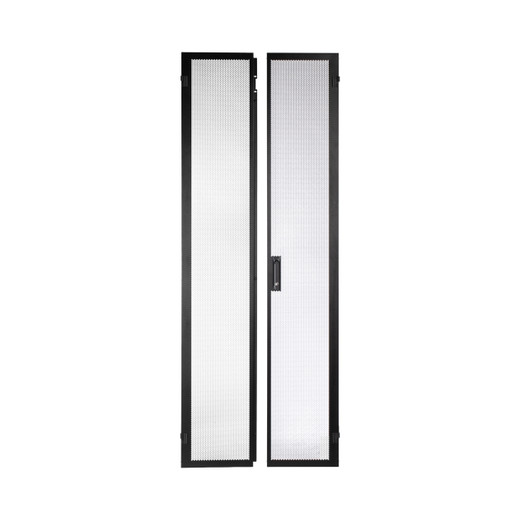

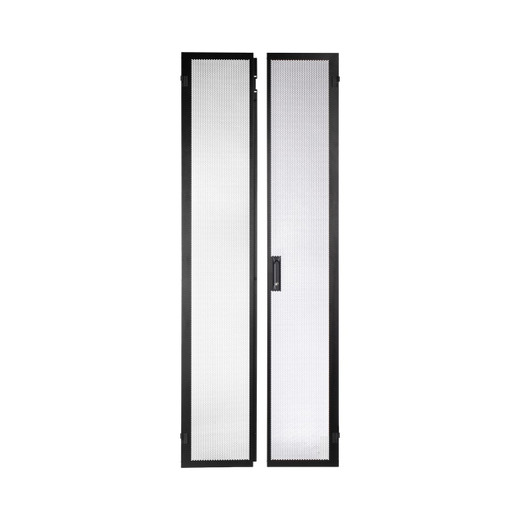

Panduit XG-DRSP848B FlexFusion Split-Hinged Door

The Panduit XG-DRSP848B delivers tool-free front access for 800mm-width rack enclosures in space-constrained datacenter and network closet deployments. This 87.24-inch split-hinged door integrates with FlexFusion cabinet systems to provide swing-clearance advantages in tight aisle configurations—each half opens independently, reducing the footprint required for maintenance access compared to traditional full-swing doors. Black powder-coat finish matches standard rack aesthetics while RoHS compliance meets procurement requirements for enterprise and colocation facilities.

Key Features

Split-hinge design—each door half swings independently for confined-space access without aisle obstruction

87.24 in height (2215.9 mm) spans full 42U-45U rack assemblies from floor to top rail

800 mm width matches industry-standard rack frame dimensions for seamless FlexFusion integration

Tool-free installation with integrated hinge mechanism—no drilling or custom hardware

RoHS-compliant construction meets federal and state electronics procurement standards

The split-hinge mechanism solves the swing-radius problem inherent to datacenter hot-aisle layouts and network closets with wall-mounted equipment. Traditional full-width doors require 24-30 inches of clear aisle space to swing fully open; the XG-DRSP848B halves that demand by allowing technicians to open one side at a time. Each half latches securely in the open position, leaving hands free for equipment installation or cable management. The hinge assembly mounts to standard FlexFusion vertical rails without modification—alignment pins locate the door, and captive fasteners secure it in under two minutes.

Height coverage spans the full usable rack space from floor-mounted rails through top cross-members, ensuring unobstructed airflow paths when closed and complete equipment access when open. The 800 mm width dimension aligns with ANSI/TIA-942 datacenter rack standards, making this door compatible with Panduit Net-Access, Net-Contain, and FlexFusion cabinet families as well as third-party frames adhering to the same 19-inch/23-inch equipment mounting spec. Black finish coordinates with existing infrastructure while powder-coat treatment resists scratches during repeated access cycles in high-traffic colocation and enterprise server-room environments.

Split-hinged doors are the field-proven choice for retrofit installs where aisle width cannot be expanded and for new builds targeting maximum rack density per square foot. The independent swing action eliminates the need to relocate adjacent equipment or temporarily remove overhead cable trays during maintenance windows—a concrete advantage in 24/7 operations where access-path disruption triggers change-control reviews and extended approval cycles.
