Panduit XG-DRSP648B 87" Split-Hinged Rack Door

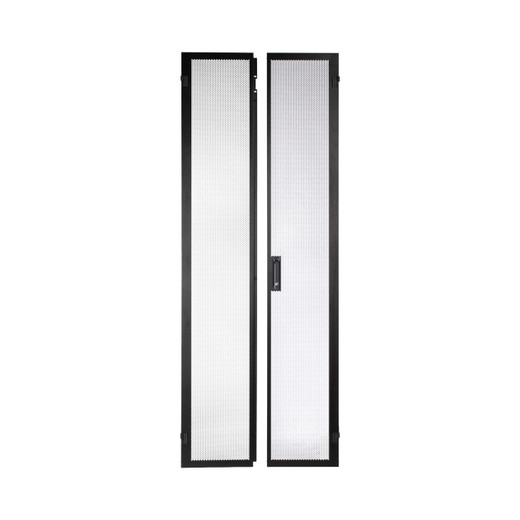

Panduit XG-DRSP648B FlexFusion Split-Hinged Rack Door

The Panduit XG-DRSP648B is a full-height split-hinged door engineered for FlexFusion and standard 600mm-width server racks in datacenter, telco CO, and enterprise IT environments. At 87.24 inches tall, this door provides complete front or rear coverage for 42U and 45U rack enclosures, delivering physical security, airflow management, and professional aesthetics in a reversible hinge configuration. The split-hinge design allows the door to swing open from either side, critical in dense hot-aisle/cold-aisle deployments where space constraints or adjacent rack positioning limits traditional single-swing access. Black powder-coat finish integrates with Panduit's FlexFusion ecosystem and most third-party cabinets, while RoHS compliance ensures global deployment eligibility in regulated facilities.

Key Features

• Full-height coverage: 87.24" (2215.9mm) for 42U–45U standard racks
• Split-hinge reversible design opens left or right for tight-aisle installations
• 600mm (23.5") width fits industry-standard rack frames
• FlexFusion-compatible for seamless integration with Panduit infrastructure
• Black finish for uniform appearance across mixed-vendor deployments
• RoHS compliant construction for environmental and procurement mandates
• Field-reversible hinge orientation without re-ordering
• Solid construction for physical access control and dust mitigation

The split-hinge mechanism is the differentiator for installers managing constrained floor plans. Traditional hinged doors require clearance equal to the door width plus swing radius—impossible in back-to-back rack rows or when racks abut structural columns. The XG-DRSP648B's dual-hinge points allow the door to fold open in either direction, reducing the effective swing envelope and permitting access even when adjacent racks, cable ladder, or building infrastructure blocks one side. This is particularly valuable in retrofit scenarios where legacy layouts didn't anticipate modern rack densities, or in modular datacenter containers where every inch of aisle width is accounted for. Hinge orientation is field-selectable during installation, so a single SKU covers both left-hand and right-hand swing requirements—no need to track separate part numbers or delay deployments waiting for the correct swing variant.

At 87.24 inches, the door is sized for full-height enclosures common in enterprise server rooms and carrier-grade installations. It mates with standard 42U racks (approx. 73.5" internal height) and 45U racks (approx. 78.75" internal height), with the additional height accommodating top-mounted PDUs, cable management arms, or ventilation plenums that extend beyond the internal rail space. The 600mm width (23.5 inches) is the global standard for 19-inch rack depths, ensuring compatibility with Panduit Net-Access, APC NetShelter, Chatsworth, Rittal, and most OEM server cabinets. Installers should verify door frame mounting hole patterns match their specific enclosure—FlexFusion racks use Panduit's toolless clips, while third-party frames may require M6 cage nuts or threaded inserts. The door ships as a single assembly; no on-site hinge assembly is required, reducing installation time and eliminating the risk of misaligned hinge pins that can bind under repeated use.

Physical security is a primary function. The solid door panel obstructs visual access to racked equipment, preventing opportunistic reconnaissance of server models, patch panel layouts, or indicator-light status that could inform an attacker's targeting. Many facilities augment this with cam locks or paddle locks (lock hardware not included with XG-DRSP648B; Panduit offers compatible locking mechanisms as separate line items). For IT environments subject to SOC 2, PCI-DSS, or FISMA controls, a lockable door is often a baseline requirement for physical access logging and asset protection. The door also serves as a dust barrier in non-clean-room environments—warehouse edge compute deployments, industrial plant MDF closets, or school network rooms—where particulate ingress can foul server fans and optics over time.

Thermal planning: while solid doors improve security, they restrict airflow compared to perforated or mesh alternatives. The XG-DRSP648B is appropriate for installations where front/rear doors remain open during normal operation (relying on rack-mounted blanking panels and controlled room HVAC), or where the door is used only during off-hours and maintenance windows. High-density compute racks (>5kW per cabinet) typically require perforated doors or no doors at all to avoid exhaust air recirculation and hotspot formation. For moderate-density storage arrays, network aggregation racks, or UPS enclosures where heat load is under 3kW, the solid door can remain closed if room air handlers provide sufficient supply air pressure to drive convective flow through internal cable pass-throughs and top vents. Always verify that door installation does not create negative pressure zones that starve equipment intakes—thermal imaging or differential pressure measurement post-install is recommended for critical loads.

RoHS compliance (Restriction of Hazardous Substances Directive 2011/65/EU and amendments) certifies that the door's materials and finishes contain permissible levels of lead, cadmium, mercury, hexavalent chromium, and flame retardants. This is a procurement gate for European Union deployments, U.S. federal agencies following EO 13693, and Fortune 500 organizations with global environmental procurement policies. The black powder-coat finish is durable under normal handling and resists corrosion in temperature-controlled IT spaces; it is not rated for outdoor or high-salinity environments. Surface cleaning should use non-abrasive microfiber and pH-neutral cleaner to preserve finish integrity—avoid solvents that can dull or streak the coating.

The Panduit FlexFusion platform is a modular physical-layer system spanning copper/fiber connectivity, cable management, racks, and power distribution. Specifying the XG-DRSP648B within a FlexFusion deployment ensures aesthetic consistency (all black finish, uniform hinge and latch design language) and leverages Panduit's unified documentation and support model. Mixed-vendor environments can still use this door—verify mounting hole pitch and frame depth compatibility, and expect to provide your own fasteners if the host rack uses a non-Panduit hole pattern. Installation typically requires two technicians due to the door's height and weight; hinge alignment is easier with the rack frame already anchored and leveled. Budget 15–20 minutes per door for mount, hinge pin insertion, swing verification, and latch adjustment.

Panduit XG-DRSP648B ships as a single unit (Package Quantity: 1) with RoHS certification and is backed by Panduit's manufacturer warranty. It is the correct choice for integrators needing full-height physical security on standard-width racks, particularly where aisle space or hinge-side obstructions demand reversible swing capability and tool-free field configuration.
