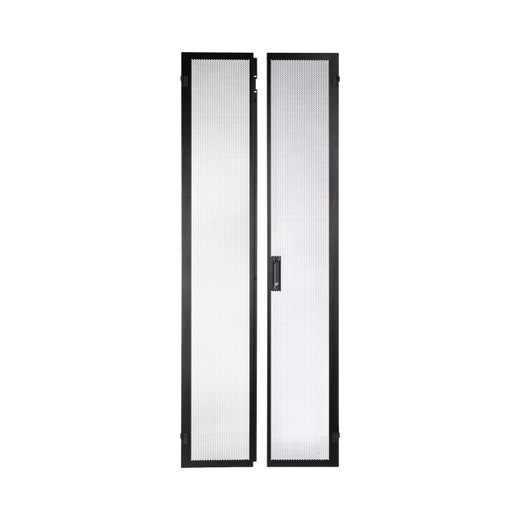

Panduit XG-DRSP851B FlexFusion™ Split-Hinged Rack Door

The Panduit XG-DRSP851B is a split-hinged front door engineered for 48U server racks and network enclosures in datacenter and IT infrastructure deployments. Part of Panduit's FlexFusion™ modular cabinet system, this 800mm-wide door provides tool-free access to rack-mounted equipment while maintaining physical security and supporting proper airflow management. The center-opening split-hinge design allows technicians to access either side of the cabinet independently—critical in high-density hot-aisle/cold-aisle configurations where traditional swing-out doors would block adjacent racks or intrude into containment curtains. RoHS-compliant construction and black powder-coat finish meet enterprise datacenter standards for both environmental compliance and professional appearance.

Key Features

• Split-hinged center-opening design for access in constrained aisle configurations
• 92.49-inch height (2349mm) accommodates 48U rack cabinets with full vertical clearance
• 800mm width matches standard deep server enclosure frames and mounting rails
• FlexFusion™ system compatible with Panduit modular cabinet infrastructure
• Tool-free quick-release mounting for rapid installation and reconfiguration
• Black powder-coat finish for consistent datacenter aesthetics across mixed deployments
• RoHS compliant for federal procurement and environmental disposal requirements
• Reinforced hinge mechanism rated for high-frequency access cycles

The split-hinge architecture divides the door into two independently opening panels that meet at a vertical center mullion, each swinging 180° to allow full-width access when both sides are opened or selective access when only one panel is needed. This design eliminates the 31.2-inch swing clearance required by conventional single-panel doors—a critical advantage in today's high-density datacenters where aisle widths are constrained to 36-42 inches for containment efficiency. The door frame integrates with Panduit's FlexFusion™ mounting rails via quick-release latches that require no tools for installation or removal, enabling rapid door swaps during cabinet reconfigurations or when transitioning between perforated and solid door types for thermal management tuning. The 2349mm height accommodates 48U of rack space (U1 through U48) with proper clearance for overhead cable management arms and floor-level PDU routing, ensuring the door does not interfere with top-mounted exhaust fans or bottom cable entry points.

Datacenter operations teams deploy split-hinged doors in hot-aisle containment systems where traditional doors would block airflow barriers or intrude into adjacent cold aisles during maintenance windows. The design serves high-change-rate environments like colocation facilities and network operations centers where frequent equipment access makes full door removal impractical but standard swing doors create technician bottlenecks during peak activity periods. Split-hinge doors integrate seamlessly with in-row cooling systems and overhead cable ladder infrastructure that leave limited vertical clearance above cabinets—the reduced swing arc prevents door collision with HVAC supply ducts and fiber tray systems. For security-sensitive deployments, the center mullion accepts optional electronic lock modules and integrates with datacenter infrastructure management (DCIM) platforms via Panduit's NetAccess™ cabinet monitoring accessories, enabling remote door status reporting and access logging for compliance audits.

The XG-DRSP851B's RoHS compliance ensures compatibility with federal procurement requirements under FAR 52.223-14 and state-level electronics disposal regulations including California AB 1826 and Washington E-Cycle program standards. The black finish matches ANSI/TIA-942 datacenter tier-standard cabinet colorways for visual consistency across mixed-vendor floor layouts. Panduit provides dimensional compatibility documentation and retrofit mounting brackets for integrating FlexFusion™ doors with legacy cabinet frames from APC, Chatsworth Products, Eaton, and other tier-1 manufacturers, allowing phased infrastructure upgrades without forklift cabinet replacements.
