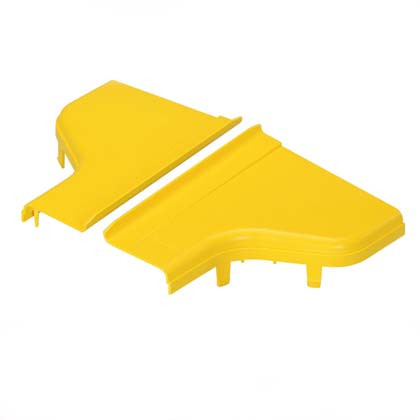

Panduit FRRF126SCLYL FiberRunner Split Reducer Cover 12-Inch to 6-Inch

Overview

The Panduit FRRF126SCLYL is a split-design cover for the FiberRunner™ straight reducer fitting, bridging a 12-inch channel down to a 6-inch channel in data center and central office fiber routing systems. Where most reducer covers require disassembling the raceway to install or service, this cover's tool-free clip mechanism lets technicians snap it on or off without pulling hardware — a meaningful time-saver when adding or rerouting fibers mid-run in a live cabinet row. The 19mm rounded opening formed at the transition point protects bend-sensitive fiber from sharp edges during cable add/remove cycles, which matters when you're working in a populated tray and can't afford to nick a live trunk.

Finished in FiberRunner yellow, the FRRF126SCLYL integrates visually with the broader Panduit FiberRunner catalog and keeps color-coded pathway identification intact across the row. At 13.63 inches wide and 2.74 inches tall, it fits the standard FiberRunner 12-inch channel profile without shimming or modification.

Key Features

• Tool-Free Clip Installation: The split cover clips directly onto the reducer fitting without screwdrivers, nut drivers, or any hand tools. In dense data center environments where access is tight and downtime windows are short, that means a technician can install or swap the cover one-handed while the other hand manages the fiber run — no tray evacuation required.
• 19mm Rounded Cable Entry Opening: The formed 19mm radius at the channel transition eliminates the sharp edges that standard straight-cut reducers leave exposed. Fiber optic cable bent over a hard corner at a 12-to-6 transition is a common source of microbend loss and jacket damage during moves-adds-changes; the rounded opening removes that risk without requiring a separate bend radius guide.
• Split-Cover Design: The two-piece split construction means the cover can be removed and reinstalled around cables already in the tray — you don't need to de-thread existing fiber to service the fitting. This is the spec that separates this product from one-piece covers in an active fiber routing system.
• Polycarbonate/ABS Construction: The PC/ABS blend delivers the impact resistance of polycarbonate with the easier moldability of ABS, producing a cover that handles routine technician contact without cracking while maintaining dimensional stability across the temperature swings typical of a data center raised floor or overhead ladder rack environment.
• Yellow Color Coding: FiberRunner yellow is a recognized pathway color in structured cabling installations — it identifies fiber optic routes at a glance and distinguishes them from copper pathways in multi-system cable management schemes. Consistent color use across all fittings and covers keeps audits and troubleshooting fast.
• RoHS Compliant: Materials meet RoHS restrictions on hazardous substances, which is a procurement requirement for deployments in the EU and for many enterprise sustainability programs worldwide. No additional substitution or documentation burden when specifying globally.
• UL-Listed Optical Fiber Cable Management Assemblies (to 2024): The UL listing covers the FiberRunner optical cable management assembly system through 2024, confirming the product meets the safety and performance requirements for fiber pathway systems — a checkbox that AHJs and enterprise procurement teams routinely require before approving installation.
• Telcordia GR-63-CORE and NEBS Level 3 Compliance: These standards govern environmental and mechanical durability for network equipment and supporting infrastructure in telecom central offices. NEBS Level 3 is the full qualification level — seismic, thermal, airflow, and fire resistance testing. If you're installing in a carrier CO or a colocation facility with NEBS requirements, this cover meets the same standard as the routing system it caps.

Integration & Compatibility

The FRRF126SCLYL is designed for use with the Panduit FiberRunner™ straight reducer fitting that transitions a 12-inch-wide channel to a 6-inch-wide channel. It is part of the broader wire routing and cable management product line and is intended to be paired with the corresponding FiberRunner reducer body — the cover alone does not form the reducer fitting. Verify the reducer fitting part number against Panduit's FiberRunner system configurator before ordering to confirm the cover is the correct match for your installed reducer.

This product is sold individually (package quantity: 1) and is available in carton quantities of 5, which aligns with typical row-level deployments where multiple reducer transitions occur along a single cable management run. For larger projects, ordering in carton quantities simplifies receiving and staging.

The FiberRunner system is widely deployed in data center infrastructure and central office environments. This cover supports those environments specifically — the NEBS Level 3 and Telcordia GR-63-CORE compliance makes it suitable for carrier-grade installations where a standard commercial cable manager would not qualify.

What's in the Box

• 1x Panduit FRRF126SCLYL FiberRunner Split Reducer Cover (12-inch to 6-inch, Yellow)

Frequently Asked Questions

Q: Does the FRRF126SCLYL require any tools to install or remove?

A: No. The split cover uses a clip mechanism that allows installation and removal without tools. This is specifically noted in the product design as a feature for environments where technicians need to add or remove cables without disrupting adjacent infrastructure.

Q: What size FiberRunner reducer does the FRRF126SCLYL fit?

A: The FRRF126SCLYL covers a straight reducer fitting that transitions from a 12-inch exit to a 6-inch exit. Overall dimensions are 13.63 inches wide and 2.74 inches tall (346.2mm x 69.6mm). It is not a universal fit — confirm your reducer fitting dimensions match before ordering.

Q: Is the FRRF126SCLYL compliant with NEBS Level 3 requirements?

A: Yes. The product meets Telcordia GR-63-CORE and Network Equipment Building Systems (NEBS) Level 3 test requirements, making it suitable for deployment in telecom central offices and carrier-grade colocation facilities with NEBS mandates.

Q: Is the FRRF126SCLYL RoHS compliant?

A: Yes. The FRRF126SCLYL is RoHS compliant, confirmed in the product standards documentation. This satisfies hazardous substance restrictions for EU deployments and enterprise sustainability procurement requirements.

Q: What material is the FRRF126SCLYL made from?

A: Polycarbonate/ABS blend. This combination provides the impact resistance of polycarbonate with the dimensional stability and moldability of ABS — appropriate for data center and central office environments where the cover may experience routine physical contact during cable management work.

Q: How many units come in a carton?

A: Carton quantity is 5 units. The FRRF126SCLYL is sold individually (package quantity of 1), but is also available in carton packs of 5 for larger row-level deployments.

Jerry Tildsen

The detail I keep coming back to on the FRRF126SCLYL is the 19mm rounded opening at the transition point. On a live fiber run — populated tray, mix of trunk and breakout cables, technician adding a new run during a maintenance window — that radius is the difference between a clean pull and a jacket nick on a cable you can't afford to touch. Panduit built the bend protection directly into the reducer cover rather than requiring a separate guide, which is the right call for an active environment.

Technical Highlights:

• Tool-Free Clip Mechanism: Snap-on/snap-off without any tools — covers a 13.63-inch-wide profile at the 12-to-6 transition. In a 48-cabinet row deployment, the time savings across multiple reducer transitions adds up fast versus covers that require a screwdriver and panel removal.
• NEBS Level 3 / Telcordia GR-63-CORE Compliance: This is not a commercial-grade cable manager dressed up with a compliance sticker — the FiberRunner system, including this cover, has passed the full NEBS Level 3 suite (seismic Zone 4, thermal cycling, airflow). That qualification is a hard requirement for carrier CO and Tier 1 colo procurement.
• Split-Cover Construction on PC/ABS: The two-piece split means you can remove and reinstall around cables already in the tray without de-threading fiber. The PC/ABS material handles repeated install/remove cycles without stress-cracking — relevant on high-churn MACs environments.

Deployment Considerations:

• The FRRF126SCLYL is the cover only — it requires the corresponding FiberRunner 12-to-6 straight reducer fitting body. Order the reducer fitting separately and confirm the exit dimensions (12-inch and 6-inch) match your installed channel before specifying this cover. Mismatched fittings are the most common field error on FiberRunner builds.
• Carton quantity is 5 units. For a full row deployment with multiple 12-to-6 transitions, order in carton increments to avoid piece-rate pricing on a high-count BOM line.

This cover is the right specification for carrier central offices, Tier 1 colocation, and enterprise data centers where NEBS Level 3 is either mandated by the facility or required by the equipment vendor's installation guide — environments where a non-listed cover would fail the commissioning checklist regardless of how well it fits.
