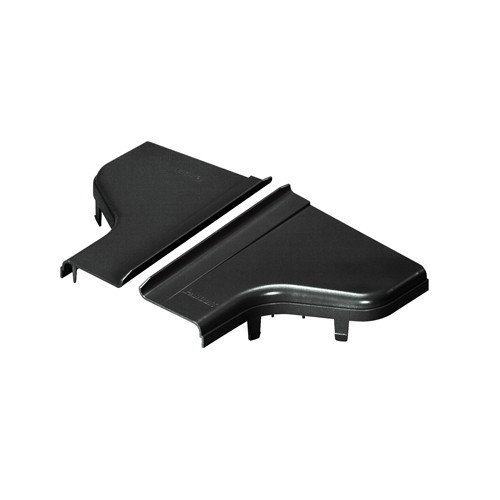

Panduit FRRF126SCLBL FiberRunner Split Cover Reducer 12-Inch to 6-Inch

Overview

The Panduit FRRF126SCLBL is a split cover reducer designed for the Panduit FiberRunner fiber routing system, bridging a 12-inch exit down to a 6-inch pathway in a single, factory-molded transition. It is engineered specifically for fiber routing and cable management applications in data centers and telco central offices where structured fiber pathways need to change dimensions without improvised field solutions. The polycarbonate/ABS construction holds its shape under the thermal and mechanical stress typical of densely loaded cable trays, and the split-cover design means you can install or service it without pulling existing fiber — a real advantage when running new drops into a live pathway.

At 13.63 inches wide and 2.74 inches tall (346.2mm × 69.6mm), this reducer occupies a defined footprint that aligns with FiberRunner's dimensional standards. The 7.81-inch overall length gives enough transition distance to avoid sharp bends at the reducer junction, protecting bend-radius-sensitive fiber from the stress that an abrupt reducer would introduce. If you've dealt with field-made cardboard or foam transitions in older installs, this is the reason purpose-built reducers exist.

Key Features

• 12-Inch to 6-Inch Reduction: Steps a 12-inch FiberRunner channel down to a 6-inch branch in a single fitting — eliminates improvised field transitions that risk bend-radius violations on OS2 or OM4/OM5 fiber runs.
• Split Cover Design: The cover separates from the base, letting technicians open the reducer and re-route or add fiber without disturbing adjacent cable bundles. Critical in live data center environments where downtime windows are tight.
• Polycarbonate/ABS Construction: This material combination resists the creep and deformation that pure ABS can exhibit under sustained cable weight — relevant in fully loaded 12-inch main runs that can carry several hundred fiber strands.
• 7.81-Inch Transition Length: The elongated body keeps fiber at or above minimum bend radius through the dimensional change, rather than forcing an abrupt 90° shoulder that would stress individual fibers at the transition point.
• RoHS Compliant: Meets RoHS requirements, which matters for data center operators under EU WEEE/RoHS procurement mandates or global sustainability reporting frameworks.
• UL Listed — 2024 Optical Fiber Cable Routing Assemblies: UL listing to the 2024 standard confirms the reducer meets independent fire and mechanical performance benchmarks for optical fiber routing. This is the certification auditors and AHJs look for on fiber pathway components in commercial construction.
• Telcordia GR-63-CORE Level 3 Compliant: GR-63-CORE Level 3 is the seismic and environmental performance standard used by telecom carriers. Level 3 compliance means this reducer has been validated to survive seismic Zone 4 conditions — relevant for carrier-grade central offices and any data center in a seismically active region.
• Black Finish: Matches standard FiberRunner black components, keeping pathway assemblies visually consistent across the rack room — useful when documentation photos need to clearly show fiber routing topology.

Integration & Compatibility

The FRRF126SCLBL is purpose-built for Panduit's FiberRunner fiber routing systems and is dimensionally matched to mate with 12-inch and 6-inch FiberRunner channels. It is sold as a single unit (package quantity: 1), available in carton quantities of 5 for larger deployments. Pair it with compatible fiber routing accessories — covers, fittings, and mounting hardware — to complete structured transitions between main trunks and branch runs. This reducer does not include mounting hardware beyond the cover itself; verify your specific FiberRunner channel mounting configuration before ordering.

What's in the Box

• 1× Panduit FRRF126SCLBL FiberRunner Split Cover Reducer (12-inch to 6-inch, Black)

Frequently Asked Questions

Q: What fiber routing channel sizes does the FRRF126SCLBL connect?

A: The FRRF126SCLBL is a reducer that transitions from a 12-inch FiberRunner channel (12-inch exit) to a 6-inch FiberRunner channel (6-inch exit). It is designed for use within the Panduit FiberRunner fiber routing system.

Q: Is the FRRF126SCLBL a split-cover design, or does it require removing fiber to install?

A: It is a split-cover reducer. The cover separates from the base, allowing installation and fiber access without removing existing cables from adjacent runs — an important practical consideration in live data center environments.

Q: What certifications does the FRRF126SCLBL carry?

A: The FRRF126SCLBL is RoHS Compliant, UL Listed to the 2024 Optical Fiber Cable Routing Assemblies standard, and compliant with Telcordia GR-63-CORE Network Equipment Building Systems Level 3 (seismic/environmental performance for telecom-grade installations).

Q: What are the physical dimensions of the FRRF126SCLBL?

A: Overall width is 13.63 inches (346.2mm), overall height is 2.74 inches (69.6mm), and overall length is 7.81 inches. It ships as a single unit; carton quantity is 5.

Q: What material is the FRRF126SCLBL made from?

A: It is constructed from polycarbonate/ABS — a blend that provides better dimensional stability and creep resistance under sustained cable loading compared to standard ABS alone.

Q: Is the FRRF126SCLBL suitable for telecom central office installations?

A: Yes. The product is explicitly rated for data centers and telco central offices, and its Telcordia GR-63-CORE Level 3 compliance makes it appropriate for carrier-grade central office fiber pathway infrastructure.
