Panduit FRRF126LSBL FiberRunner 12x4 to 6x4 Reducer Fitting
Overview

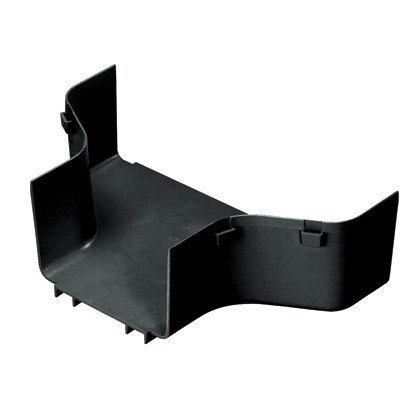

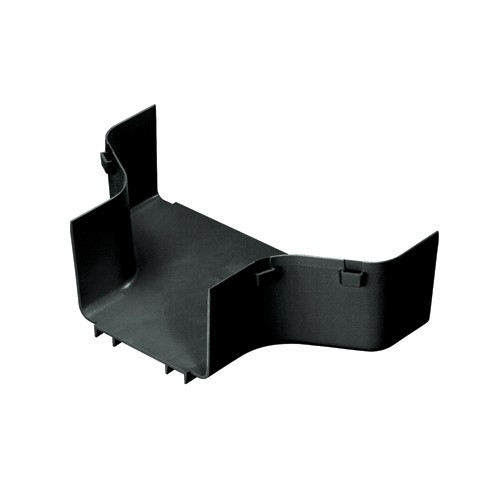

The Panduit FRRF126LSBL is a FiberRunner™ reducer fitting designed to transition optical fiber cable runs from a 12-inch-wide by 4-inch-tall raceway down to a 6-inch-wide by 4-inch-tall raceway. Built from polycarbonate/ABS in black, it is sized at 13.46 in. wide × 4.22 in. tall × 7.81 in. long — a compact transition section that keeps your fiber pathway continuous and bend-radius compliant without improvised adapter plates or field fabrication. Target environments are data centers and central telecommunications offices where FiberRunner 12x4 trunk runs fan into tighter distribution zones.
Explore the full Panduit catalog of cable management solutions, or browse the broader wire routing and cable management category to find compatible raceways, fittings, and accessories.
Key Features
- 12x4 to 6x4 Transition: Exits measure 12 in. on the trunk side and 6 in. on the distribution side — both at the same 4 in. height — so the raceway cross-section narrows laterally without changing vertical profile. That means your overhead ladder rack or ceiling grid alignment stays consistent through the reduction zone.
- Polycarbonate/ABS Construction: The material combination delivers impact resistance and dimensional stability in temperature-cycled data center environments. It is not a commodity PVC fitting — polycarbonate/ABS holds shape under the static load of fully dressed fiber bundles without creep.
- RoHS Compliance: The FRRF126LSBL meets RoHS requirements, which matters for enterprise customers with environmental procurement mandates and for any installation destined for export or EU-regulated facilities.
- UL-Listed Optical Cable Routing Assembly (through 2024): UL certification on the fiber routing assembly means it satisfies code-compliance requirements in commercial construction projects where the AHJ requires listed products in plenums and telecommunications rooms.
- Telcordia GR-63-CORE and NEBS Level 3 Compliant: These standards govern physical and environmental performance in carrier-grade and central office installations. If your project touches telecom infrastructure subject to NEBS, this fitting is pre-qualified — you do not need to run your own environmental stress testing on the raceway system.
- Sold as a Single Unit (Package Qty: 1): Order exactly the quantity your bill of materials calls for — no forced multi-packs that leave surplus inventory on the shelf for a one-time fit-out.
Integration and Compatibility
The FRRF126LSBL is engineered to mate with Panduit FiberRunner® 12x4 and 6x4 raceway channels and fittings. It is part of the FiberRunner™ fiber routing system — a modular architecture that includes straight sections, elbows, tees, and reducers sized to standard increments. When planning a data center trunk-to-distribution layout, pair this reducer with compatible fiber routing reducers and cover accessories to maintain a fully enclosed, bend-radius-managed pathway. The black colorway (FRRF126LSBL) matches standard FiberRunner black system components; verify your existing raceway color before ordering if color consistency is a project requirement. The FRRF126LSBL is not rated for outdoor or direct-sunlight-exposed installations — polycarbonate/ABS without UV stabilization is an indoor-only assembly.
Frequently Asked Questions
Q: What raceway sizes does the FRRF126LSBL connect?
A: It connects a FiberRunner 12-inch-wide by 4-inch-tall raceway to a FiberRunner 6-inch-wide by 4-inch-tall raceway. The height is consistent on both sides at 4 inches; only the width reduces.
Q: Is the FRRF126LSBL UL listed?
A: Yes. It meets UL optical cable routing assembly certification through 2024 and complies with Telcordia GR-63-CORE and NEBS Level 3 standards.
Q: Is the FRRF126LSBL RoHS compliant?
A: Yes, the FRRF126LSBL is RoHS compliant, making it suitable for projects with environmental materials mandates or EU-regulated facility requirements.
Q: What is the overall footprint of this fitting?
A: The fitting measures 13.46 in. wide × 4.22 in. tall × 7.81 in. long (341.9 mm × 107.2 mm). Plan clearance above the raceway path for the fitting depth when routing near obstructions.
Q: How many units come in a package?
A: The FRRF126LSBL ships as a single unit (Package Qty: 1), so you can order exactly the quantity your layout requires.
Q: Is this fitting suitable for outdoor or plenum installations?
A: It is designed for indoor data center and telecommunications office environments. No outdoor or direct-UV rating is stated in the manufacturer specifications. Verify plenum rating requirements with your AHJ — the UL listing covers optical cable routing assemblies, not necessarily plenum air-handling spaces.
The FRRF126LSBL comes up regularly in data center fit-outs where the main fiber trunk is sized 12x4 for capacity, but the zone distribution frames only have 6x4 ladder rack or trough allocated. The polycarbonate/ABS body handles the static load of a dressed fiber bundle without the creep you see in cheaper thermoplastic fittings — important when you have 50+ cables draping across the reduction zone.
Technical Highlights:
- Asymmetric Reduction (12 in. to 6 in. width, 4 in. height constant): Keeping the 4-inch height fixed through the transition means your vertical stack clearance stays predictable — no need to replan overhead obstructions mid-run just because the raceway narrows.
- NEBS Level 3 / Telcordia GR-63-CORE: These aren't checkbox certifications in carrier environments — they mean the fitting has been validated against seismic, thermal, and mechanical stress profiles that govern central office infrastructure. If your project specs call out NEBS, the FRRF126LSBL satisfies that requirement without qualification testing on your end.
- Overall Length 7.81 in.: The fitting body occupies nearly 8 inches of raceway run. Budget that in your as-built drawings — it is not a zero-footprint splice plate, and tight equipment room layouts need the clearance accounted for in the overhead pathway plan.
Deployment Considerations:
- Confirm that both adjacent raceway sections are FiberRunner-compatible (12x4 and 6x4 respectively) before ordering — this fitting is not a universal adapter and will not mate with third-party raceway profiles of the same nominal size.
- The black colorway (FRRF126LSBL) matches standard FiberRunner black system components; if your installation uses light-colored or yellow FiberRunner (common in some carrier facilities), order the matching color variant to maintain system uniformity and avoid inspection flags.
The FRRF126LSBL is the right call for enterprise data center main-distribution-area to horizontal-distribution-area transitions where the trunk raceway is oversized for capacity headroom and the distribution zone runs a tighter 6x4 pathway. It keeps the fiber system modular, code-compliant, and bend-radius managed without field fabrication.
