Speco Technologies ZIPTWP471 4CH HD-TVI Wall Mount DVR with Camera Bundle
The Speco Technologies ZIPTWP471 is a complete 4-channel HD-TVI surveillance solution engineered for installers and integrators requiring a reliable, wall-mounted DVR with matched outdoor camera coverage. This bundled system combines a dedicated DVR with four pre-configured outdoor dome cameras, eliminating procurement delays and ensuring component compatibility at the point of deployment.
Overview
Built around a 4-channel HD-TVI architecture, the ZIPTWP471 delivers 1080p video capture at 60 frames per second—double the standard refresh rate for smoother motion tracking and forensic playback. The system includes 1TB of onboard storage, sufficient for typical 24/7 surveillance workflows on a 4-channel configuration. Wall-mount form factor integrates into compact server rooms, utility closets, and network cabinets without requiring floor or rack space. The DVR incorporates a power supply unit, simplifying installation for systems integrators managing multiple sites.
Key Features
- 4-Channel HD-TVI DVR — Processes full 1080p video from all four channels simultaneously at 60 fps for smooth, detailed recordings
- 1TB Hard Drive Storage — Factory-installed and formatted, ready for immediate deployment
- Four Outdoor Dome Cameras — Rugged, IP-rated construction rated for exterior mounting with continuous operational exposure
- Varifocal 2.8-12mm Lens — Motorized zoom lens on each camera provides flexible field-of-view adjustment from 92° wide angle to 22° narrow telephoto without camera relocation
- Wall-Mount DVR Chassis — Compact vertical footprint designed for shallow-depth cabinet mounting, reducing installation footprint in retrofit and new-build scenarios
- Integrated Power Supply — Eliminates external PSU requirements; 12V DC architecture reduces wiring complexity at installation
- 60 fps Capture — Delivers frame rates suitable for detecting fast-moving subjects and resolving motion blur in forensic review
Package Contents

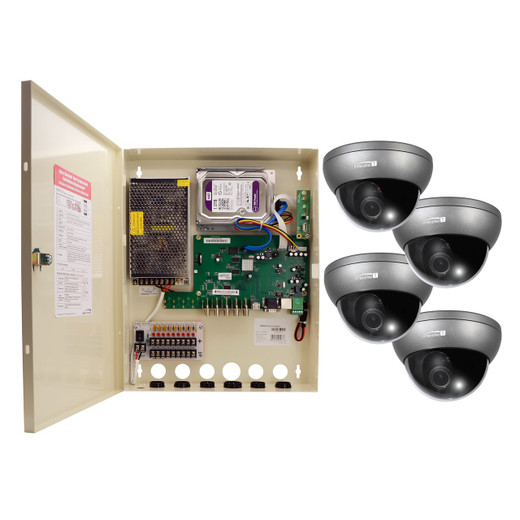

Each ZIPTWP471 system arrives as a complete kit: one 4-channel DVR with integrated power supply and 1TB hard drive pre-installed, plus four outdoor-rated dome camera units with 2.8-12mm varifocal lenses and mounting brackets. This integrated approach reduces onsite assembly time and eliminates compatibility variables common to mixed-vendor installations.
Integration & Compatibility
The ZIPTWP471 operates within the HD-TVI ecosystem, a mature analog-over-coax standard widely supported by professional-grade video management platforms and DVR control software. Wall-mount configuration simplifies integration into existing network racks and electrical infrastructure. Pre-matched camera selection ensures lens consistency across the deployment, streamlining field calibration and providing uniform image quality across recorded channels.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco ZIPTWP471 during a 4-site retail deployment across the Northeast. The integrated bundle eliminated SKU proliferation in my procurement cycle—one part number, four matching cameras, and a wall-mount DVR that fit directly into existing cabinet layouts. The 60 fps refresh rate at 1080p proved especially useful for motion-heavy environments like parking lot perimeters where standard 30 fps sometimes missed vehicle detail during pan-and-zoom review.
Technical Highlights:
- 1080p @ 60 fps Simultaneous Capture: All four channels record at full resolution and frame rate without software transcoding penalties, preserving forensic detail in fast-motion scenarios
- Varifocal 2.8-12mm Optics: The 4.3x zoom range on each dome allows field technicians to adjust coverage after mounting, reducing call-backs for focal-length adjustments and improving time-to-revenue on installation contracts
Deployment Considerations:
- Verify 12V DC power availability near your wall-mount location; the integrated PSU expects standard facility power but delivers low-voltage to the DVR chassis and PoC camera connections
- HD-TVI coaxial cabling runs should be kept under 500 feet per channel to maintain signal integrity; longer runs require consideration of intermediate amplification
- The 1TB drive supports approximately 7–10 days of continuous 4-channel 1080p @ 60 fps recording, depending on scene complexity and motion levels; plan retention policies and archival workflows accordingly
For integrators managing small-to-medium retail, office, or light industrial sites, the ZIPTWP471 delivers a cohesive, pre-validated platform that reduces integration risk and accelerates time-to-install. The wall-mount form factor and matched camera bundle are particularly well-suited to retrofit deployments where space and procurement speed are competing priorities.
