Speco ZIPTW4D1 4CH HD-TVI Wall Mount DVR 1080p

Speco Technologies ZIPTW4D1 4-Channel HD-TVI DVR System

Overview

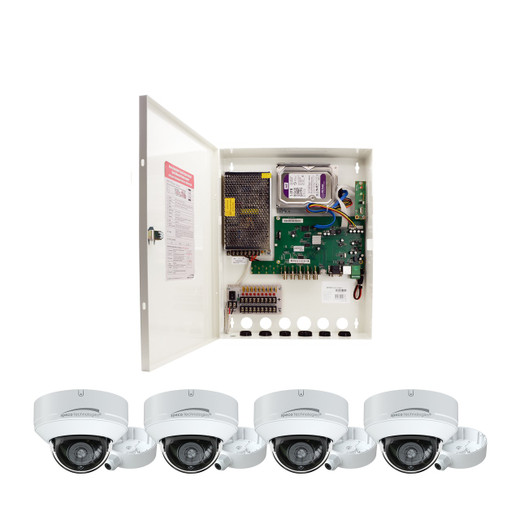

The Speco Technologies ZIPTW4D1 is a complete 4-channel HD-TVI DVR system designed for small to mid-size installations requiring integrated surveillance coverage. This wall-mounted DVR delivers 1080p video capture at 60 frames per second, providing smooth motion rendering and detailed forensic playback. The system ships with four outdoor infrared dome cameras equipped with 2.8mm fixed lenses, white finish housings, and pre-configured connectivity—eliminating on-site camera sourcing and reducing integration labor. The 1TB internal storage provides baseline capacity for continuous recording across all four channels.

Key Features

• 4-Channel HD-TVI Recording: Simultaneous capture from four analog HD-TVI camera inputs at 1080p resolution and 60 fps frame rate
• 1080p Resolution at 60 fps: Supports smooth, high-frame-rate video ideal for motion-heavy environments and frame-accurate event review
• 1TB Internal Storage: Factory-installed hard drive for continuous DVR operation without external NAS or SAN dependencies
• Four Included Outdoor IR Dome Cameras: Fixed 2.8mm lens design; infrared illumination for low-light and nighttime operation; white powder-coated housing for exterior durability
• Wall-Mount Form Factor: Compact DVR chassis designed for wall installation, suitable for control rooms, retail locations, and secured facility spaces
• IR Dome Camera Design: Vandal-resistant dome form factor with integrated infrared LEDs; 2.8mm lens provides wide field of view typical for entry-point and perimeter monitoring

Deployment & Integration

The ZIPTW4D1 addresses complete-system procurement for integrators and end-users seeking a proven DVR platform with matched optics. The 2.8mm fixed focal length across all four included cameras standardizes field-of-view expectations and simplifies installation planning. The HD-TVI protocol is a recognized analog-based HD standard compatible with most mid-range coaxial infrastructure, making retrofit installations straightforward without wholesale cabling replacement. The 60 fps capture rate accommodates high-motion detection requirements and supports forensic-quality playback for incident investigation and compliance documentation.

The wall-mount DVR footprint is suitable for NOC deployment, branch office security stations, and retail command centers where space is limited but monitoring visibility is required. Four-channel capacity scales appropriately for entrance monitoring, perimeter coverage, or split-zone supervision of a single large facility.

Package Contents

• Speco ZIPTW4D1 4-channel HD-TVI DVR with 1TB hard drive
• Four outdoor IR dome cameras with 2.8mm fixed lenses (white housing)
• Pre-configured coaxial camera connections
• Power supply and connection cabling

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've worked with the Speco ZIPTW4D1 in several retail and small commercial deployments over the past year. The appeal here is straightforward: you receive a matched, tested 4-channel DVR with four cameras already selected and shipped together. This eliminates the integration step of sourcing four separate dome cameras and ensures optics consistency across all four channels. The 1080p/60fps capability delivers smooth video—especially valuable if you're monitoring active areas like loading docks or customer entry zones where motion blur or frame dropping can compromise forensic utility.

Technical Highlights:

• 60 fps Capture: The ZIPTW4D1 records all four channels simultaneously at 60 frames per second, twice the typical 30 fps DVR standard. This is material for motion-heavy environments and gives you finer temporal resolution for frame-by-frame review during incident investigation.
• Integrated IR Dome Cameras: The four included cameras feature infrared illumination and 2.8mm fixed lenses. The dome form factor resists tampering and provides consistent wide coverage across entry points or perimeter zones without requiring separate pan-tilt assembly.
• 1TB On-Board Storage: The DVR includes a factory-installed 1TB hard drive. Calculate retention based on your compression settings and motion-detection configuration, but this baseline capacity supports 5–15 days of continuous 4-channel recording depending on codec and scene complexity.

Deployment Considerations:

• Verify your coaxial run distances. HD-TVI over coax remains limited to approximately 300–400 meters depending on cable quality and signal conditioning. If your camera endpoints exceed that, consider intermediate repeaters or a hybrid fiber/coax solution.
• Plan for network connectivity if you require remote viewing or alarm notification. Confirm LAN integration points and whether your facility IT allows the DVR on the primary network or mandates a segregated surveillance VLAN.

For integrators doing small-to-medium commercial work, the ZIPTW4D1 is a solid choice. You eliminate camera selection variability, reduce spare-parts inventory, and deliver a unified system with known interoperability. The 60 fps throughput is a genuine advantage over consumer-grade alternatives. Install and configure the coax runs, set your recording schedule, and you're operational the same day.
