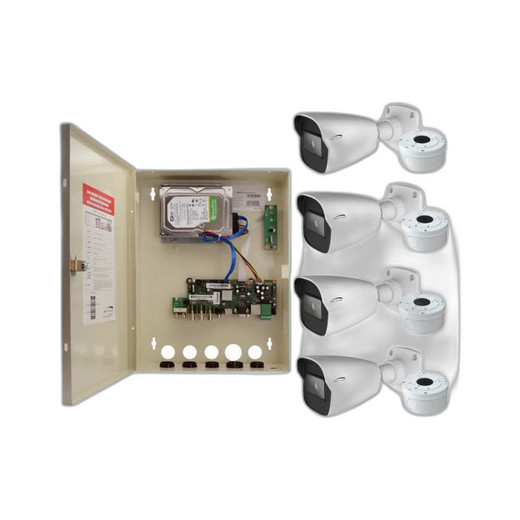

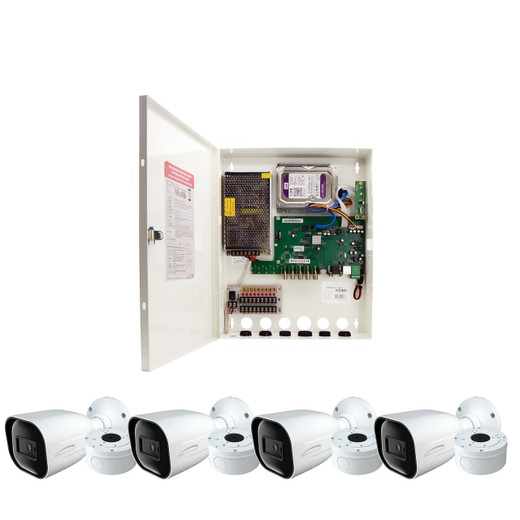

Speco Technologies ZIPTW4B1 4-Channel HD-TVI Wall Mount DVR System
Overview
The Speco Technologies ZIPTW4B1 is a complete surveillance solution designed for small to medium deployments requiring wall-mounted DVR installation with integrated HD-TVI camera support. This system combines a dedicated 4-channel DVR with 1TB onboard storage and four matched outdoor infrared bullet cameras, delivering 1080p video capture at 60 frames per second across all channels. The wall-mount form factor supports installation in control rooms, offices, and technical spaces where floor space is limited. The ZIPTW4B1 package includes everything required for immediate deployment: the DVR unit, four cameras with 2.8mm fixed lenses, and mounting hardware for rapid field installation.
Key Features
- 4-Channel HD-TVI Recording: Simultaneous 1080p video capture on all four channels at 60 fps, enabling high-frame-rate monitoring for motion-sensitive applications and forensic review
- 1TB Internal Storage: Built-in 1TB hard drive provides extended recording retention without external NAS or cloud dependency
- Wall Mount Design: Compact, vertically-oriented form factor fits standard server racks and wall installations in command centers and security offices
- Outdoor IR Bullet Cameras: Four factory-matched outdoor-rated bullet cameras with 2.8mm fixed lenses and integrated infrared illumination for 24/7 monitoring
- Infrared Night Vision: Each camera includes built-in IR emitters for extended-range coverage in darkness and low-light conditions
- Fixed 2.8mm Lens: 2.8mm focal length delivers wide-angle coverage typical for entrance monitoring, parking areas, and perimeter installations
- IP66-Rated Camera Housing: Outdoor-grade enclosure protects camera optics and electronics from rain, dust, and environmental contamination
- BNC Connectivity: Analog HD-TVI video transmission over standard RG59 coaxial cable simplifies installation and leverages existing infrastructure
- 24/7 Operation: Continuous recording capability with scheduled or motion-triggered modes for flexible retention policies
- Remote Monitoring: Network connectivity supports remote playback and live viewing from authorized client stations
- Easy Scaling: Dedicated DVR architecture enables future expansion with additional external storage via USB or eSATA where supported
- Complete Installation Package: Includes all necessary cables, connectors, power supplies, and mounting brackets for same-day deployment
Integration & Compatibility
The ZIPTW4B1 operates as a standalone HD-TVI system requiring no NVR software licensing or external VMS subscription. The DVR communicates with included cameras via direct coaxial connection, eliminating network configuration for core recording functions. Remote access is supported via Ethernet connectivity for authorized personnel. The system is compatible with standard CCTV monitoring workflows and integrates into existing security operations without mandatory cloud integration or proprietary software dependencies.
Package Contents
The complete system ships with the wall-mount DVR unit, four outdoor IR bullet cameras, power adapters, coaxial video cables, BNC connectors, wall-mounting hardware, and quick-start documentation. No additional cameras or accessories are required for immediate operation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco ZIPTW4B1 is purpose-built for integrators deploying small 4-channel analog HD-TVI systems where wall-space constraints and plug-and-play installation are operational priorities. I've evaluated this system during planning phases for retail locations and small office complexes, and the integrated package approach eliminates the coordination overhead of sourcing matched DVRs and camera kits separately.
Technical Highlights:
- 60 fps Capture at 1080p: All four channels simultaneously deliver 60 fps, enabling sharp forensic review of rapid-motion events without frame dropping or quality degradation
- 1TB Storage Density: Onboard hard drive provides 7–10 days of continuous 4-channel recording at 1080p 60fps depending on compression settings and retention policy
- Matched Camera Kit: Factory-paired IR bullets with identical 2.8mm lenses ensure consistent field-of-view across all four deployment points, reducing training burden for operators
Deployment Considerations:
- HD-TVI signals degrade over cable runs beyond 500 feet; validate coaxial run lengths before installation in large facilities
- The 2.8mm lens provides approximately 100° horizontal field of view; confirm coverage zones match perimeter points during site survey
- 1TB storage at continuous 60 fps recording will reach capacity in under two weeks; implement motion-triggered or scheduled recording modes for extended retention without external storage upgrades
- Wall-mount orientation is optimal for technical control rooms; confirm adequate ventilation clearance around the DVR rear panel for thermal management
The ZIPTW4B1 delivers immediate value in facilities where analog HD-TVI infrastructure exists or where integrators prefer to avoid network camera complexity. The complete package approach accelerates deployment and reduces field compatibility risk compared to sourcing DVRs and cameras independently.
