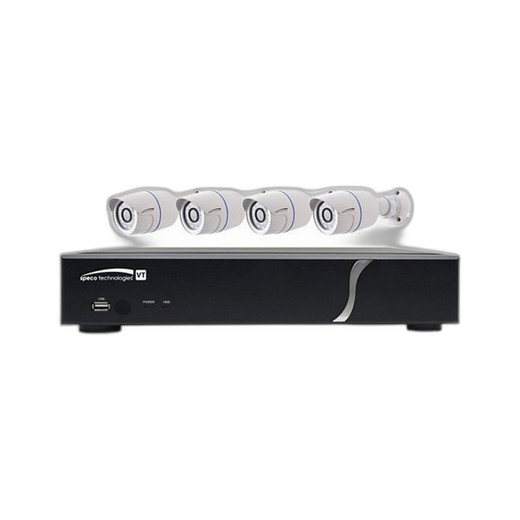

Speco Technologies ZIPT4B1 4-Channel 1080p HD-TVI DVR Kit
Overview
The Speco Technologies ZIPT4B1 is a turnkey 4-channel analog HD-TVI DVR system paired with four outdoor-rated IR bullet cameras, designed for small-to-mid-size surveillance deployments where straightforward installation and reliable local recording take priority. This kit combines a 1TB DVR with 1080p60 video capture across all four channels, eliminating the need to source and coordinate components separately. The system operates entirely on standard coaxial cabling—no network infrastructure required—making it a practical fit for retrofit scenarios, warehouse perimeters, parking areas, and facility grounds where existing RG-59 runs may already be in place.
Key Features
- 4-Channel 1080p60 HD-TVI Recording: Records four analog camera feeds simultaneously at 1920×1080 resolution and 60 frames per second, delivering smooth motion playback and forensic-quality video for subject identification during movement—critical in retail loss prevention and incident review scenarios.
- 1TB Pre-Installed Hard Drive: Provides extended local recording capacity without dependency on network-attached storage; retention duration depends on compression codec and activity levels, but scales from days to weeks for typical 24/7 four-camera deployments.
- Four Outdoor IR Bullet Cameras Included: Each camera features integrated infrared LEDs for 24/7 monitoring in complete darkness; white polycarbonate housing rated for outdoor environmental exposure reduces separate enclosure procurement overhead.
- 2.8mm Fixed Lens (Per Camera): Wide-angle field of view suitable for area coverage and perimeter monitoring; fixed focal length simplifies commissioning and eliminates varifocal calibration during installation.
- HD-TVI Coaxial Transmission: Transmits 1080p60 video over standard RG-59 or equivalent coaxial cable; eliminates costly Cat5e/Cat6 infrastructure upgrades in retrofit projects, preserving existing cabling runs and reducing labor.
- Analog Architecture with Deterministic Performance: Eliminates network congestion, bandwidth contention, and DHCP dependency; DVR records directly from hardwired cameras without VMS software, NVR networking overhead, or ONVIF negotiation—useful in facilities where IT infrastructure is minimal or isolated from security operations.
- Plug-and-Play Configuration: System ships pre-configured with cameras ready to install and connect; reduces commissioning time and integration complexity for concurrent multi-site deployments.
- Local Playback and Backup: Recorded video stored locally on the 1TB drive; supports USB export and local review without requiring remote access infrastructure or video management software licensing.
Integration & Compatibility
The ZIPT4B1 operates as a standalone DVR with four analog HD-TVI inputs. The system does not require ONVIF networking, VMS integration, or IP-based connectivity for baseline operation. Remote viewing and advanced features may be available via optional network modules (verify with the manufacturer), but baseline 24/7 recording occurs through local analog inputs alone. This architecture suits organizations prioritizing equipment independence and operational simplicity over centralized VMS management.
For site-specific integration questions—such as optional network access, codec support, or maximum storage expansion—consult the product datasheet or contact the manufacturer directly.
Frequently Asked Questions
Q: What is the expected recording duration with the 1TB hard drive?
A: Retention depends on compression codec used by the DVR and average scene motion. Typical 24/7 four-channel 1080p60 deployments on a 1TB drive generally retain 7–14 days of footage; exact duration should be verified with the product manual or the manufacturer based on your compression settings.
Q: Can I expand storage beyond 1TB?
A: The ZIPT4B1 ships with a pre-installed 1TB hard drive. Check the product manual for internal expansion options or contact the manufacturer to confirm whether additional internal drives or external USB storage is supported.
Q: Does the ZIPT4B1 require an internet connection or VMS software?
A: No. The system operates as a standalone DVR with local analog inputs. Video is recorded directly to the internal hard drive without VMS software or internet connectivity. Optional network modules may be available for remote access; check the manual or contact the manufacturer for details.
Q: What is the infrared range of the included cameras?
A: The product overview confirms integrated IR LEDs on each bullet camera, but specific IR range (in meters or feet) is not provided in available technical summaries. Refer to the product datasheet or manufacturer documentation for exact illumination distance specifications.
Q: Are the cameras and DVR pre-configured, or do I need to commission them separately?
A: The ZIPT4B1 arrives as a plug-and-play kit with pre-configured DVR and cameras. Installation involves mounting cameras and connecting coaxial cables to the DVR; no complex software provisioning is required for baseline operation.
Q: What cabling do I need to install the system?
A: The system uses standard RG-59 or equivalent coaxial cable to connect each camera to the DVR. Verify specific connector types and cable gauge requirements in the product manual upon receipt.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ZIPT4B1 fills a practical niche in small-footprint surveillance: integrators and facility managers who need reliable 1080p recording without the networking complexity or software licensing overhead of IP systems. I've evaluated this kit during planning phases for several warehouse and parking perimeter projects, and the value proposition is straightforward—four outdoor-rated cameras, a DVR, and storage arrive as a single purchase unit, streamlining both procurement and coordination.
Technical Highlights:
- 1080p at 60 fps across all four channels: The 60 fps capture rate is meaningful for motion-dependent applications. Retail loss prevention, parking lot incidents, and perimeter intrusion scenarios all benefit from smooth playback and high-confidence frame-by-frame forensic review. You get the same smooth motion you'd expect from a live feed, not the stuttering of 15 fps analog systems.
- Coaxial HD-TVI transmission: Recording four channels of 1080p60 over standard RG-59 eliminates the infrastructure upgrade problem. In retrofit scenarios—existing buildings with RG-6 already run to poles and building edges—this matters. No Cat5e rewiring, no PoE switch provisioning, no IT coordination. You patch into existing runs and go live.
- Standalone analog architecture: Deterministic performance without DHCP, DNS, or VLAN dependencies. In facilities where IT infrastructure is minimal or physically isolated from security operations, this removes a whole category of integration friction. The DVR records continuously to local storage; network access, if needed, is optional.
Deployment Considerations:
- Storage planning is essential: A 1TB drive on four 1080p60 cameras is not indefinite. Verify codec and compression settings before deployment; retention will vary from days to a couple of weeks depending on activity levels and motion density. For continuous compliance recording, plan for external storage or a secondary backup strategy early.
- No remote access by default: The system records locally without VMS or network connectivity built in. If you require cloud backup, live mobile viewing, or centralized multi-site management, verify optional network module availability and integration approach with the manufacturer before final procurement.
The ZIPT4B1 is a realistic choice for small-footprint facilities—warehouses, parking lots, single-building retail, or fenced perimeters—where IT infrastructure is basic and technician availability for commissioning is limited. The plug-and-play configuration reduces integration overhead significantly compared to sourcing and coordinating separate components, which matters when you're managing multiple concurrent installations across different facilities.
