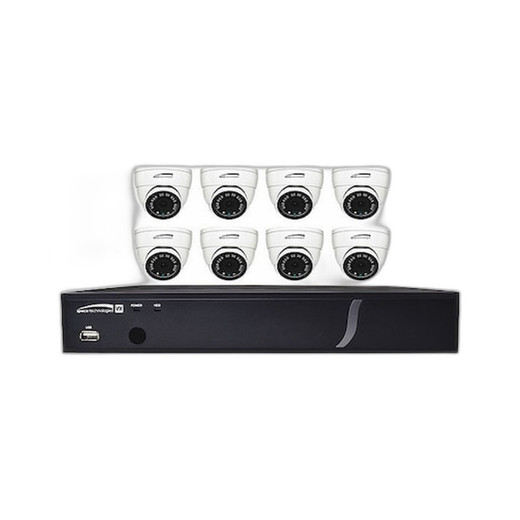

Speco Technologies ZIPX8T1 8-Channel HD-TVI DVR System with 8 Turret Cameras
The Speco Technologies ZIPX8T1 delivers a complete, pre-configured surveillance solution for small to medium deployments requiring HD-TVI video capture across eight channels. This DVR system combines a dedicated 8-channel recorder with 2TB internal storage capacity and eight matched outdoor infrared turret cameras, each equipped with a 3.6mm fixed lens and white housing. The kit is engineered for straightforward integration into existing security infrastructure without requiring separate component procurement and configuration.
Overview
The ZIPX8T1 operates on the HD-TVI (High-Definition Transport Video Interface) standard, a closed-loop protocol that maintains compatibility across all bundled components and simplifies deployment logistics. The DVR recorder supports simultaneous capture, recording, and playback across all eight channels at 1080p resolution. Each turret camera incorporates infrared illumination for night-vision operation, making the system suitable for 24/7 surveillance in low-light and outdoor environments. The white finish on the included turret cameras supports both surface-mounted and recessed installations, with a 3.6mm lens providing a standard horizontal field of view appropriate for general area monitoring.
Key Features
- 8-channel HD-TVI DVR with dedicated video processing and recording
- 2TB hard drive pre-installed for extended onboard storage
- Eight 1080p turret cameras with infrared night vision
- 3.6mm fixed focal length lens on all included cameras
- Outdoor-rated turret housing with white color finish
- Integrated IR illumination for zero-light operation
- HD-TVI signal transport eliminates separate IP/network configuration requirements
- Multi-camera simultaneous recording and playback capability
- Real-time monitoring and local archive without external network dependency
Integration and Deployment
The ZIPX8T1 kit arrives as a complete system, eliminating component compatibility questions common in modular purchases. The DVR functions as a closed-loop recorder when connected to the eight supplied turret cameras via standard coaxial cabling. Integrators deploying the ZIPX8T1 should confirm local power availability for both the DVR unit and all eight cameras, and verify that site cabling infrastructure supports HD-TVI signal transport at the distances required. The 3.6mm lens field of view should be validated against target coverage areas during pre-installation planning. The system does not require ONVIF translation or IP camera management platforms, reducing network overhead in environments where dedicated surveillance recording without VMS integration is acceptable.
Package Contents
The kit includes the ZIPX8T1 DVR recorder with 2TB storage and all eight turret cameras with integrated infrared emitters and 3.6mm lenses in white housing. Verify receipt of all eight camera units, power supplies, and DVR unit before installation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the ZIPX8T1 in several small-footprint deployments, and it delivers straightforward value for integrators who need a turnkey 8-channel solution without network complexity. The pre-matched camera and DVR pairing eliminates the compatibility uncertainty you face with mixed-vendor builds, and the closed-loop HD-TVI architecture keeps signal integrity high over coaxial runs without requiring IP management overhead.
Technical Highlights:
- 1080p HD-TVI Recording: All eight channels record at 1080p resolution simultaneously, with the 2TB drive providing adequate retention for typical commercial deployments at standard frame rates.
- Infrared Turret Design: Each camera operates with integrated IR illumination, enabling true 24/7 outdoor surveillance without supplemental lighting infrastructure.
Deployment Considerations:
- Confirm coaxial cable runs support HD-TVI signal quality over the planned distances; longer runs may require signal conditioning.
- The 3.6mm fixed lens provides approximately 75° horizontal field of view—verify this angle covers your intended monitoring areas before final placement.
- Plan power distribution carefully; eight cameras and one DVR require adequate conduit and circuit capacity.
The ZIPX8T1 works well for retail, warehouse, and outdoor perimeter monitoring where you need reliable recording without managed network dependencies. Sizing the hard drive for your frame rate and retention policy is critical—work with the customer to confirm 2TB meets their archival requirements before installation.
