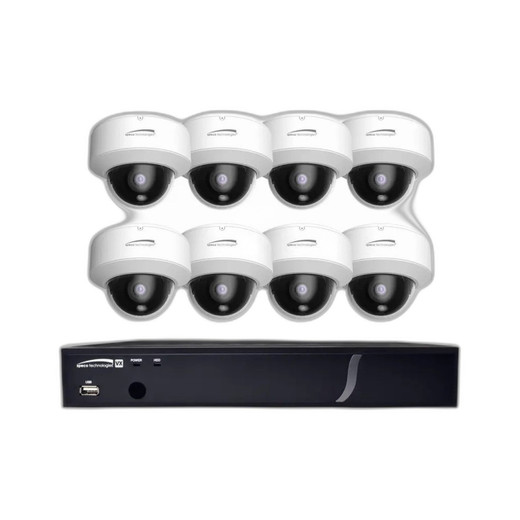

Speco Technologies ZIPT88D2 8-Channel HD-TVI DVR System with 8 Outdoor IR Dome Cameras
Overview
The Speco Technologies ZIPT88D2 is a complete HD-TVI surveillance solution engineered for small-to-medium deployments requiring reliable analog video capture with hybrid recording flexibility. This 8-channel DVR system ships with 2TB of onboard storage and includes eight matched outdoor infrared dome cameras, eliminating integration complexity and reducing procurement cycles for security integrators and IT managers. The ZIPT88D2 delivers 1080p resolution recording at 120 fps across all channels, enabling simultaneous high-frame-rate capture for motion-sensitive environments such as retail, hospitality, and light industrial facilities.
Key Features
- 8-Channel HD-TVI DVR with 2TB HDD: Dedicated DVR platform with factory-installed 2TB hard drive, supporting full 1080p recording across all eight channels simultaneously
- 120 fps Recording Capability: Captures high-frame-rate video at 1080p resolution, enabling forensic-quality playback and improved motion detail for incident review
- Eight Outdoor IR Dome Cameras (2.8mm fixed lens): Weatherproof outdoor domes with infrared illumination and standardized 2.8mm lens for fixed wide-angle coverage, designed for perimeter and facility monitoring
- 1080p (1920×1080) Resolution: Full HD video clarity across all camera channels for detailed subject identification and evidence documentation
- Infrared Night Vision: Built-in IR LEDs on each dome camera enable 24/7 surveillance without auxiliary lighting, critical for unmanned or low-light monitoring zones
- White Dome Housing: Aesthetically neutral white finish on camera bodies and dome covers, suitable for both indoor and outdoor architectural integration
- Complete System Packaging: Integrated kit eliminates compatibility concerns between DVR platform and camera models, reducing integration time and support overhead
- Fixed 2.8mm Lens: Wide-angle fixed focal length optimized for general-purpose area coverage without lens adjustment or servo maintenance
- Hybrid Recording Architecture: HD-TVI platform provides native analog transport with optional network bridging for hybrid and IP-capable deployments
Integration & Compatibility
The ZIPT88D2 operates as a closed system with dedicated HD-TVI camera channels, ensuring signal integrity without IP network dependencies. All eight cameras are pre-configured for the ZIPT88D2 DVR platform, streamlining field deployment and reducing setup complexity. The DVR supports simultaneous multi-channel playback and standard video export formats for chain-of-custody evidence workflows. Integration with VMS software or third-party monitoring platforms depends on network availability and optional IP gateway modules.
Package Contents
Each ZIPT88D2 kit includes the 8-channel DVR unit with 2TB pre-installed storage and eight matched outdoor IR dome cameras with 2.8mm lenses and white housings, all configured and ready for deployment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco Technologies ZIPT88D2 during planning phases for several mid-sized facility deployments, and the system architecture offers genuine advantages for integrators managing client expectations around simplicity and upfront cost. The bundled camera set eliminates SKU proliferation and compatibility testing—a meaningful operational benefit when provisioning multiple units across a territory.
Technical Highlights:
- Frame Rate Capability: The 120 fps recording at 1080p is genuinely useful for motion-rich environments (retail, transportation hubs, hospitality). This frequency captures fast-moving subjects with forensic clarity without requiring 4K sensor infrastructure.
- Storage Density: The 2TB factory HDD provides approximately 30–40 days of continuous 8-channel recording at 1080p/30 fps, depending on compression settings and scene complexity. For extended retention, external or NAS-attached storage is necessary.
- Camera Consistency: All eight domes ship with identical 2.8mm optics and IR specification, eliminating the variable focusing and illumination mismatches that occur when integrators source cameras independently.
Deployment Considerations:
- The fixed 2.8mm lens is a constraint for sites requiring mixed coverage angles. Plan outdoor placement to account for the wide field-of-view without pan/tilt adjustment capability.
- The ZIPT88D2 is an analog HD-TVI system; confirm that your client's monitoring center and VMS environment support HD-TVI inputs or that IP gateway hardware is budgeted separately if network integration is required.
- White dome housings are suitable for light architectural environments but may be visually intrusive in modern minimalist installations; discuss finish preferences early.
The ZIPT88D2 is an excellent fit for straightforward commercial and light industrial deployments where integrators need rapid provisioning, predictable camera behavior, and transparent total cost of ownership. The bundled approach reduces field callbacks and accelerates time-to-operation.
