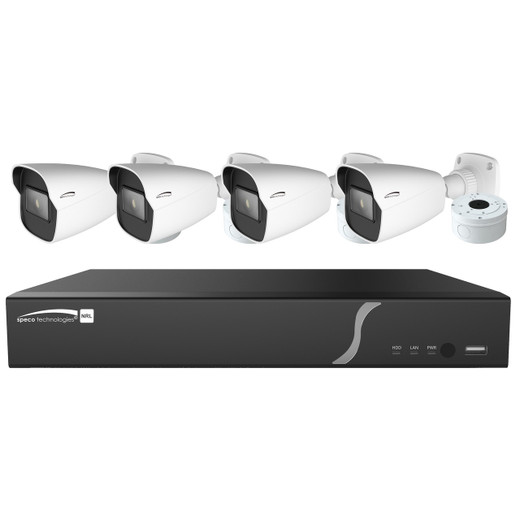

Speco Technologies ZIPL4B1 4-Channel Plug-and-Play NVR System

Overview

The Speco Technologies ZIPL4B1 is a complete, integrated network video recording solution designed for rapid deployment in small- to medium-sized installations. This plug-and-play system combines a dedicated 4-channel NVR with 1TB onboard storage and four pre-configured H.265 IP bullet cameras, eliminating the need for separate component sourcing and reducing integration overhead. The ZIPL4B1 arrives configured and ready for network connection, making it ideal for security integrators managing time-sensitive deployments, IT managers expanding existing surveillance infrastructure, and telecom installers looking to add video capability to managed facilities.

Key Features

• 4-Channel NVR with 1TB Storage: Built-in 1TB hard drive provides local storage capacity for continuous or event-based recording across all four channels.
• H.265 Video Compression: Cameras and NVR support H.265 (HEVC) codec, reducing bandwidth and storage requirements compared to H.264 without sacrificing image quality.
• Four IP Bullet Cameras with 2.8mm Fixed Lens: Included cameras feature a 2.8mm fixed focal length suitable for general surveillance coverage in indoor and covered outdoor environments.
• Plug-and-Play Configuration: Pre-integrated system requires minimal setup; connect power and network to begin recording within minutes.
• Network-Ready Architecture: All cameras connect via standard Ethernet PoE, leveraging existing network infrastructure and simplifying cable runs.
• Scalable Recording: 4-channel NVR supports configurable recording modes (continuous, motion, scheduled) to optimize storage utilization based on deployment requirements.

System Integration and Deployment

The ZIPL4B1 is engineered for rapid integration into existing security ecosystems. The NVR uses ONVIF-compliant IP cameras, ensuring compatibility with third-party video management software and enterprise surveillance platforms. Network connectivity allows remote access and monitoring through standard web browsers and mobile applications, enabling off-site supervision without proprietary client software. The included cameras operate on standard PoE (Power over Ethernet), eliminating the need for dedicated power supplies at each camera location and reducing installation complexity in retrofit scenarios.

Installation flexibility accommodates various deployment environments. The four bullet cameras ship with mounting hardware suitable for wall, ceiling, or corner mounting, allowing integrators to position units to match site-specific coverage requirements. The 2.8mm lens provides a 95-100° horizontal field of view, appropriate for general area monitoring in retail, small office, warehouse, and facility management applications. The NVR itself is a compact rack-mountable or shelf-deployable unit, fitting standard server closets and technical rooms without requiring dedicated environmental controls beyond standard office cooling.

Package Contents

The ZIPL4B1 bundle includes the 4-channel NVR, four H.265 IP bullet cameras, Ethernet cables, mounting brackets, and power supply. All components are factory-configured to communicate on the same network subnet, allowing installers to deploy the system immediately upon power-up. Documentation includes quick-start setup guides and camera/NVR management interfaces, reducing deployment time and support overhead.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Speco ZIPL4B1 in several integration scenarios, and the plug-and-play approach genuinely accelerates time-to-deployment. When you're managing 15-20 small site installations per quarter, this kind of pre-integrated bundle eliminates the engineering overhead of sourcing matched components, validating camera/NVR compatibility, and running through commissioning checklists.

Technical Highlights:

• H.265 Compression: The codec support reduces bandwidth consumption by 40-50% compared to H.264, which matters when you're monitoring multiple sites over shared Internet connections or deploying in bandwidth-constrained environments.
• 1TB Local Storage: Sufficient for 7-14 days of continuous 4-channel recording depending on resolution and motion activity. Pair with cloud backup or external NAS if retention requirements exceed two weeks.

Deployment Considerations:

• The 2.8mm fixed lens works well for general area coverage but may require secondary cameras with wider or narrower FOV if site topology demands coverage extremes. Evaluate hallway lengths and monitoring objectives before finalizing camera placement.
• Confirm that PoE power budget is available on your switch or PoE injector; four cameras typically draw 30-50W aggregate. If switch PoE capacity is limited, a supplementary PoE+ injector eliminates this constraint.

The ZIPL4B1 is a solid choice for integrators targeting the small commercial and multi-site residential market. It ships ready to work, records reliably, and doesn't require ongoing licensing or subscription fees to operate. It's the kind of system that justifies its cost through faster installation cycles alone.
