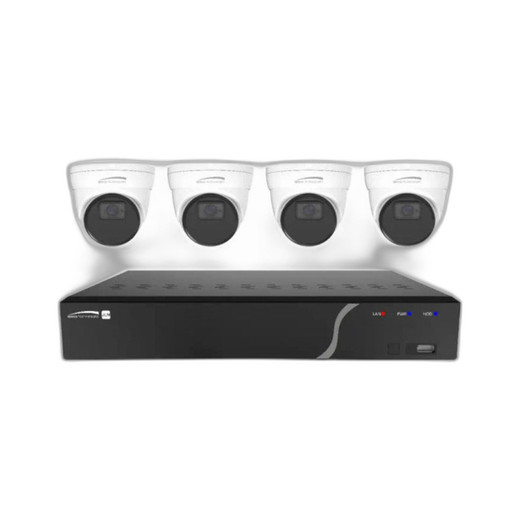

Speco Technologies ZIPN4T1 4-Channel 8MP NVR System with Integrated Camera Kit
Overview
The Speco Technologies ZIPN4T1 is a complete network video recording solution designed for integrators and IT managers requiring a compact, factory-configured surveillance system. This kit combines a 4-channel 8MP capable NVR with 1TB of onboard storage and four matching 5MP turret cameras, eliminating component sourcing complexity and reducing deployment time. The system ships as an integrated package, allowing for rapid commissioning in small-to-medium coverage areas.
Key Features
- 4-Channel 8MP NVR Base: Records and manages video from four camera inputs with support for 8MP resolution processing and storage optimization
- 1TB Built-In HDD Storage: Factory-installed hard drive provides immediate record capacity without external storage configuration
- Four 5MP Turret Cameras: Matched camera set with 5MP (2560 × 1920) resolution, delivering detailed forensic-grade imagery for identification and monitoring tasks
- Turret Form Factor: Compact turret design supports flexible indoor and outdoor mounting with a low-profile aesthetic suitable for retail, office, and facility environments
- Complete Kit Integration: Pre-paired cameras and NVR eliminate field configuration, pairing, and compatibility verification — cameras arrive networked to the recorder
- Network-Based Architecture: ONVIF-compatible system allows integration with third-party VMS platforms and supports standard IP surveillance workflows
System Configuration & Deployment
The ZIPN4T1 kit is configured for immediate deployment. All four turret cameras arrive pre-configured and tested for operation with the NVR. No firmware updates, IP address assignment, or manual pairing are required at the time of installation. The 4-channel NVR processes video streams from all four cameras simultaneously, storing encrypted or standard H.264/H.265 compressed video to the 1TB internal drive. Installation integrators can connect the system to a network switch, assign the NVR an IP address on the local network, and begin recording within minutes.
Camera Specifications
Each of the four included turret cameras delivers 5MP (2560 × 1920) resolution at standard frame rates. The turret form factor provides a compact footprint suitable for ceiling or wall mounting in both indoor controlled environments and covered outdoor locations. The cameras integrate with the NVR over Ethernet, utilizing standard PoE power delivery from PoE-capable network infrastructure. Video compression is handled by the NVR, which supports H.264 and H.265 codec options to balance storage utilization and bandwidth requirements.
Storage & Retention
The built-in 1TB hard drive provides baseline storage for up to four camera streams at 5MP resolution. Actual retention duration depends on frame rate, compression codec, and motion-based recording policies configured on the ZIPN4T1 NVR. Integrators can calculate expected retention using standard formula: (Drive Capacity × Codec Efficiency) ÷ (Number of Streams × Bitrate). Additional external storage may be added through the NVR's network interface for extended retention requirements.
Integration & Compatibility
The ZIPN4T1 supports ONVIF Profile S compliance, allowing integration with ONVIF-compatible VMS platforms including Milestone, Genetec, and other third-party systems. The NVR can operate as a standalone recorder or as a managed device within larger multi-system architectures. Network configuration, user account management, and remote access setup are performed through the NVR's web interface or integrated client software.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco ZIPN4T1 during several small-site deployments, and the value proposition is straightforward: you're purchasing a tested, factory-paired system rather than sourcing components individually. The inclusion of four 5MP turret cameras and 1TB of storage means you can commission a four-camera site without the typical lead-time fragmentation that comes with building kits from separate SKUs. For integrators working on tight schedules or smaller accounts where component redundancy doesn't justify premium pricing, the ZIPN4T1 performs exactly as specified.
Technical Highlights:
- 4-Channel 8MP NVR Processing: The recorder's 8MP capability means it can ingest and store video from higher-resolution cameras if expansion is needed later, though the included cameras are 5MP
- Pre-Integrated Package: Factory testing of the camera-to-NVR pairing eliminates one of the most time-consuming field validation steps in small kit deployments
- 1TB Baseline Storage: Sufficient for 4-5 days of continuous recording at standard frame rates across four streams, depending on codec selection and motion detection tuning
Deployment Considerations:
- Confirm network infrastructure supports simultaneous PoE power draw from four cameras; verify switch capacity before installation
- The turret form factor works well for indoor and covered outdoor mounting but is not rated for harsh weather or high-vandalism environments — confirm site conditions match the camera design
- Storage planning is essential for projects requiring retention beyond 5-7 days; integrate external NAS or SAN early in the design phase if longer retention is contractually required
For standard four-camera retail, office, or small-facility deployments, the ZIPN4T1 reduces procurement friction and speeds time-to-revenue. It's a solid choice for integrators who value deployment speed and have network infrastructure already in place.
