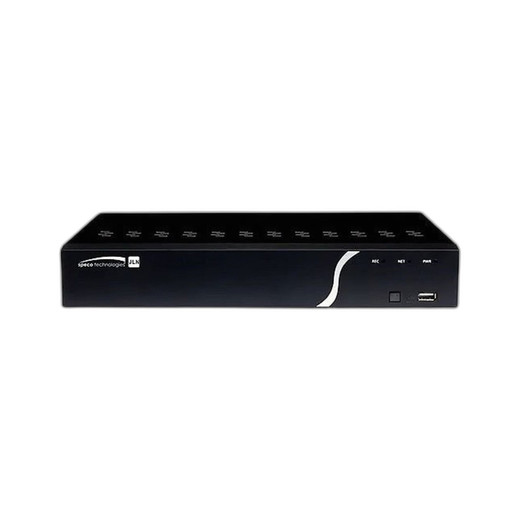

Speco Technologies ZIPK4N1 4-Channel H.265 NVR with Outdoor IR Camera Kit
Overview
The Speco Technologies ZIPK4N1 is a complete outdoor surveillance system pairing a 4-channel H.265 network video recorder with four weatherproof 5MP cameras equipped with infrared night vision. This is a wired, IP-based kit designed for distributed perimeter monitoring where you need reliable 24/7 coverage without the latency and interference risks of wireless systems. H.265 compression reduces storage footprint and bandwidth demand compared to H.264—meaningful when recording continuously across all four channels on 1TB of integrated storage. The system is NDAA-compliant, clearing procurement restrictions for federal agencies and government contractors.
Key Features
- 4-Channel H.265 NVR: Dedicated network video recorder supporting both H.265 and H.264 codecs. H.265 efficiency cuts storage requirements roughly in half depending on scene complexity—a real cost factor in 24/7 multi-camera deployments where you're filling that 1TB quickly.
- 5MP Resolution (2592×1944): Each camera delivers enough pixel density for facial identification and license plate legibility at typical outdoor distances. This is the practical floor for serious perimeter work; lower resolutions force you to choose between coverage area and detail.
- 100-Foot Infrared Range: OptimizedIR night vision with 100ft effective range covers large outdoor zones—parking lots, warehouse yards, campus perimeters—without requiring supplemental lighting that attracts attention or creates dark spots behind fixtures.
- IP66 Weatherproof Rating: All four cameras are sealed against direct rain, dust, and salt air. IP66 means no protective housing needed; skip this product only if you need full submersion protection (IP67 or higher) or explosive-atmosphere certification.
- 2.8mm Fixed Lens, ~100° Horizontal FOV: Wide angle suitable for entrance monitoring and general perimeter coverage. Fixed lens means no moving parts to fail in outdoor temperature swings; trade-off is you can't adjust zoom after installation.
- True Day/Night with Automatic IR Cut Filter: Automatic switching between color and monochrome as light drops ensures optimal image quality across lighting transitions. IR cut filter removes infrared contamination in daylight, preventing color wash.
- Digital WDR (DWDR): Handles high-contrast outdoor scenes—backlit building entrances, bright sun reflecting off wet pavement, vehicle headlights. DWDR compresses the dynamic range in software rather than hardware, so performance depends on scene complexity; it won't save you from pointing a camera directly into the sun.
- 802.3af PoE Power, 7W per Camera: Standard PoE means no separate 24VDC supplies or power-distribution headaches. At 7W per camera, you won't strain a typical enterprise switch's power budget—four cameras draw 28W total, well within any modern PoE infrastructure.
- 1TB Integrated Storage: Pre-configured NVR storage supports continuous 24/7 recording across all four channels. Actual retention depends on frame rate and compression; H.265 extends that window vs. H.264.
- NDAA Section 889 Compliance: Meets National Defense Authorization Act requirements. If you're selling to federal agencies, government contractors, or sensitive infrastructure (utilities, airports, ports), this certification clears a hard procurement gate.
System Architecture and Deployment Context
The ZIPK4N1 is a wired, IP-based kit—all four cameras connect via standard Ethernet cabling to the NVR. Eliminate wireless latency, frequency interference, and battery management in outdoor environments where reliability trumps convenience. Each camera's 7W PoE draw falls within standard 802.3af capacity, so you can deploy through enterprise switches, PoE injectors, or dedicated PoE midspans without additional power infrastructure. H.265 efficiency reduces bandwidth demand, supporting extended recording intervals or lower-cost network infrastructure. The NVR's independent channel recording and motion detection per zone are essential for multi-zone perimeter applications—parking lot coverage, warehouse yard quadrants, campus access-point surveillance.
Environmental Specifications
Operating range of -22°F to 131°F (-30°C to 55°C) covers North American climates from unheated storage facilities to sun-exposed outdoor mounting. IP66 weatherproofing protects against seasonal weather cycles—heavy rainfall, freeze-thaw, salt-air environments near coastal infrastructure—without performance degradation. Compact form factor and 1.5 lbs per camera support rapid installation on standard wall and ceiling mounts. Deploy this kit for entrance monitoring, parking structures, loading docks, perimeter fencing, and campus multi-building coverage.
Frequently Asked Questions
Q: Is the ZIPK4N1 NDAA Section 889 compliant?
A: Yes. The ZIPK4N1 meets National Defense Authorization Act requirements and is approved for federal agency and government contractor procurement environments.
Q: What is the maximum infrared range on the ZIPK4N1 cameras?
A: The cameras deliver 100 feet of effective infrared illumination range in zero-light conditions, suitable for large outdoor perimeter zones without supplemental lighting.
Q: Does the ZIPK4N1 require a separate power supply for the cameras?
A: No. Each camera draws 7W and is powered via standard 802.3af PoE, eliminating the need for dedicated 24VDC power runs. Four cameras total 28W, well within typical enterprise switch capacity.
Q: How long will 1TB of storage last on the ZIPK4N1?
A: Retention depends on frame rate, resolution, and compression. H.265 codec efficiency extends recording intervals compared to H.264. For continuous 24/7 recording at full resolution, expect retention in the 7–14 day range depending on scene complexity; fast-motion outdoor scenes consume more storage than static scenes.
Q: Can the ZIPK4N1 be integrated with a third-party VMS?
A: The cameras support ONVIF IP standards, enabling integration with most enterprise video management systems. Verify ONVIF Profile S/T/G compatibility with your chosen VMS before deployment.
Q: What is the field of view of the 2.8mm lens?
A: The 2.8mm fixed lens provides approximately 100 degrees horizontal field of view, suitable for entrance monitoring and general perimeter coverage. Fixed focal length means no post-installation zoom adjustment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ZIPK4N1 is a straightforward 4-channel outdoor kit that removes ambiguity from deployment—you're not mixing vendors, hunting compatible firmware, or debugging ONVIF handshakes. Everything is pre-integrated and tested. The spec sheet tells you exactly what you're getting: four 5MP cameras with 100-foot infrared range, 1TB of H.265 storage, and NDAA compliance. If your mandate is federal or government contractor work, this clears that procurement gate immediately.
Technical Highlights:
- H.265 Codec on a 1TB NVR: H.265 cuts storage footprint roughly 50% versus H.264 depending on scene activity. On a 1TB recorder, that translates to 7–14 days of continuous 24/7 recording across all four channels. If you need longer retention, you're either buying external NAS or moving to a larger NVR—plan accordingly during scoping.
- 100-Foot IR with IP66 Weatherproofing: The IR range and IP66 rating work together to cover large outdoor zones without protective housings or supplemental lighting. That said, IR performance degrades in rain and heavy fog—the spec is best-case clear-night range. In coastal environments, verify salt-air protection aligns with your facility; IP66 resists spray, but long-term corrosion on steel mounting brackets is your problem, not the camera's.
- 802.3af PoE at 7W per Camera: At 7W each, four cameras draw 28W total—you won't max out a switch's PoE budget. But if you're planning to add a fifth zone later, you're immediately pushing against PoE limits. Budget for a dedicated PoE injector or a higher-capacity switch if expansion is in your roadmap.
Deployment Considerations:
- Storage math is critical: 1TB on a 4-channel recorder fills fast with continuous recording. Calculate frame rate, codec efficiency, and your required retention window before committing. If you need 30+ days of footage, external NAS or a larger NVR becomes necessary.
- The 2.8mm fixed lens is wide (100° FOV) but not adjustable post-installation. Verify mounting angles and coverage zones during the site survey—you can't zoom in after the camera goes up. If you need variable coverage or long-range detail, look at a varifocal variant from the same family.
- ONVIF integration with third-party VMS is supported, but test the specific VMS integration before going live. Don't assume Milestone, Genetec, or other platforms will auto-discover the ZIPK4N1 without configuration.
Position the ZIPK4N1 for federal/government procurement projects where NDAA compliance is a gate, or for straightforward multi-zone outdoor coverage on enterprises (warehouses, parking structures, campus perimeters) where you want a vendor-integrated solution without VMS architecture debates. It's not a best-fit for high-resolution long-range applications or sites requiring more than 14 days of continuous retention on the included storage.
