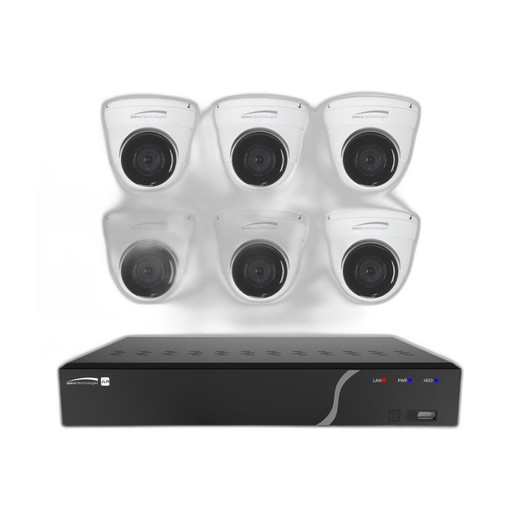

Speco Technologies ZIPK8N2 8-Channel H.265 NVR with 6x 5MP IR Camera Kit
Overview
The Speco Technologies ZIPK8N2 is a complete, factory-integrated surveillance kit designed for integrators and facilities managers who need immediate, tested outdoor security deployment. The kit pairs an 8-channel H.265 NVR with six outdoor IP cameras, eliminating compatibility unknowns and reducing on-site configuration time. Each camera delivers 5MP (2592×1944) resolution using H.265 compression, which cuts storage consumption roughly in half compared to H.264—a tangible cost factor when recording continuously across six channels for weeks at a time. The system ships with 2TB onboard storage, supporting approximately 10–14 days of continuous 8-channel recording at full resolution (retention varies with frame rate and motion detection settings). All six cameras are outdoor IP cameras with IP66 weather sealing and 100-foot infrared night vision, rated for operation from -22°F to 131°F, making this kit suitable for unheated loading docks, parking lots, and northern warehouses where temperature swings are routine.
Key Features
- H.265 Codec Native Support: NVR encodes incoming streams in H.265 or H.264 on demand. H.265 cuts bitrate overhead roughly 40–60% depending on scene motion—critical when WAN bandwidth is constrained or when multi-site operators need to ship footage remotely without saturating upload pipes.
- 5MP Resolution per Camera: 2592×1944 pixels per channel. This resolution sits between 1080p (too grainy for license plate or facial detail in many lighting) and 8MP (storage and bandwidth overkill for perimeter sweeps). Five megapixels strikes the balance for parking lot, dock, and entrance monitoring where you need readable detail without exponential storage cost.
- 100-Foot OptimizedIR Night Vision: Each camera includes a mechanical day/night IR cut filter and 850nm infrared emitters tuned for outdoor scenes. True darkness (0 lux) is handled by IR; during twilight or mixed lighting, the filter switches to color capture. 100 feet of effective illumination covers most outdoor zones without requiring supplemental lighting infrastructure.
- IP66 Weatherproofing on All Six Cameras: Direct rain, spray, and dust ingress won't compromise the optics or electronics. IP66 means continuous outdoor operation in wet, dusty, or humid environments—but it does not guarantee full submersion. If cameras will sit below gutter level or face permanent water contact, specify IP67 instead.
- 2.8mm Fixed Lens, 92° Horizontal Field of View: A fixed focal length eliminates focus drift and simplifies replacement in the field (no lens adjustment, no remote calibration). The 92° coverage is wide enough for hallway or dock entrance monitoring without the distortion you'd get from an ultra-wide 110°+ lens. Trade-off: no zoom, so mounting height and angle are critical—plan placement carefully during design.
- Low PoE Power Draw: Each camera draws only 7W via standard 802.3af PoE (14.95W budget). This means you won't overload a standard PoE switch, and a single Cat5e/Cat6 cable run delivers both video and power to each camera location—no separate 12VDC supplies, no dual wiring.
- Vehicle and Motion Detection Analytics: Integrated motion triggering and vehicle detection reduce false alarms from wind, shadows, or passing clouds. Analytics can feed rules-based alerting to access control panels, email gateways, or alarm systems, enabling automated responses (lock doors on vehicle detect, email on 3+ motion events in 5 minutes, etc.).
- DWDR (Dynamic Wide Dynamic Range): Preserves detail when the scene contains both bright (sunny windows, reflective doors) and dark (shadows, interior hallways) areas simultaneously. Useful in loading docks with mixed outdoor/indoor lighting, but won't recover detail from complete black or blown-out white.
- NDAA Compliance: No banned components; meets DFAR Section 889 requirements. Suitable for federal, state, and local government procurement where Chinese-origin or supply-chain risk restrictions apply.
- 2TB Pre-Installed Storage: Factory-configured and tested. Supports 8-channel continuous recording; no storage expansion without opening the NVR. Plan retention expectations during the sales process to confirm this capacity meets your site's archival window.
- Dual Power Input Option: Six cameras operate on PoE alone (802.3af). NVR accepts optional DC 12V auxiliary input, enabling redundant or failover power architecture if backup power systems are already deployed.
Integration and Compatibility
The ZIPK8N2 operates standalone or integrates into third-party VMS platforms via ONVIF-compliant APIs—Milestone XProtect, Genetec, Exacq, and similar enterprise platforms recognize the NVR as a native streaming device. H.265 compression and remote API access make this kit practical for multi-site operators who need centralized video management across branch locations. The wired Cat5e/Cat6 architecture (no wireless) ensures reliability in RF-congested environments (warehouses with heavy WiFi use, industrial sites, data centers) and eliminates the channel contention and range limitations of mesh or mesh-adjacent camera networks. Vehicle detection and motion analytics can trigger external network video recorder actions or third-party integrations, supporting perimeter security, parking lot monitoring, and entrance control workflows.
What's in the Box
- 1x 8-Channel H.265 NVR with 2TB HDD pre-installed
- 6x Outdoor 5MP IP Cameras with 2.8mm fixed lenses
- 6x PoE Power Cables (camera to NVR)
- 6x Mounting Brackets (wall or ceiling, hardware included)
- Assorted RJ-45 connectors and patch cables
Frequently Asked Questions
Q: Is the ZIPK8N2 compliant with NDAA Section 889 or DFAR restrictions?
A: Yes, the ZIPK8N2 is NDAA-compliant and contains no banned components, making it suitable for federal, state, and local government procurement.
Q: Can I expand storage on the ZIPK8N2 NVR?
A: The 2TB hard drive is factory-installed. Storage expansion requires opening the NVR chassis; no hot-swap or external drive bays are available. Plan retention around the onboard 2TB capacity, which supports approximately 10–14 days of continuous 8-channel recording at full 5MP resolution.
Q: What is the maximum IR range on each camera in the ZIPK8N2 kit?
A: Each camera delivers true infrared night vision to approximately 100 feet (30 meters) in complete darkness. Effective range decreases in fog, dust, or reflective surfaces.
Q: Can the ZIPK8N2 integrate with third-party VMS platforms like Milestone or Genetec?
A: Yes, the NVR supports ONVIF-compliant APIs, allowing integration with standard VMS platforms. H.265 compression reduces WAN bandwidth for remote monitoring across multiple sites.
Q: What is the operating temperature range for the outdoor cameras?
A: All six cameras operate reliably from -22°F to 131°F (-30°C to 55°C), making this kit suitable for northern climates, unheated warehouses, and outdoor year-round deployments.
Q: Does each camera draw power from standard PoE (802.3af)?
A: Yes, each camera draws only 7W, well within the 802.3af 15.4W per-port budget. A standard PoE switch will support all six cameras without power management or port scheduling.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ZIPK8N2 is a lean, no-nonsense kit for integrators who need a confidence-tested outdoor 8-channel deployment without the assembly risk. Six pre-paired cameras and a factory-loaded NVR means minimal on-site discovery work, and H.265 compression on the ZIPK8N2 cuts your storage burn rate in half versus H.264—a tangible operational cost when you're recording 24/7 across six outdoor zones.
Technical Highlights:
- H.265 Compression: Reduces bitrate 40–60% compared to H.264, extending your 2TB storage window from ~7 days (H.264) to 10–14 days (H.265) on the same hardware. Meaningful when you're chasing compliance retention windows or managing WAN backhaul from branch locations.
- 100-Foot IR with Mechanical Day/Night Filter: OptimizedIR handles true darkness; the IR cut filter automatically switches the camera to color during twilight or mixed lighting. No manual adjustment required. Plan mounting height to exploit the full 100-foot throw without shooting into walls or loading dock shadows.
- PoE Power Budget Headroom: At 7W per camera, all six draw less than 50W combined, leaving you 40–50W of headroom on a 96W PoE+ switch. No power staging, no separate 12VDC runs, no power injection boxes. Single Cat5e/Cat6 per camera.
- IP66 Weatherproofing Across All Cameras: Outdoor-rated by design. Rain and dust won't degrade the optics. Confirm with the site that none of the camera locations will face standing water or permanent submersion—that requires IP67.
Deployment Considerations:
- Fixed 2.8mm Lens Locks in Coverage: No zoom adjustment. Mount height and angle are critical during design. A 2.8mm lens at 10 feet gives a wide view but may sacrifice detail at distance. Measure sight lines before ordering; wrong mounting angle is expensive to fix post-installation.
- 2TB Storage is Not Expandable Without Disassembly: No hot-swap drive bays. If retention requirements grow or if you discover that 10–14 days is insufficient for your compliance window, you'll need to upgrade the entire NVR. Confirm storage needs with the customer before installation.
- Vehicle Detection is Useful but Not Bullet-Proof: Motion and vehicle triggers reduce false alerts, but they're scene-dependent. Shadows, swaying trees, and reflections can still fire. Test analytics on-site before baking alerting rules into access control or alarm integrations.
Position the ZIPK8N2 for outdoor perimeter, parking lot, and warehouse dock security where you need five-megapixel detail, 24/7 night vision, and industrial-grade temperature tolerance without custom lens selection or modular NVR expansion. NDAA compliance and PoE simplicity make this kit a natural fit for municipal fleet yards, government storage facilities, and integrators who support multi-location regional chains.
