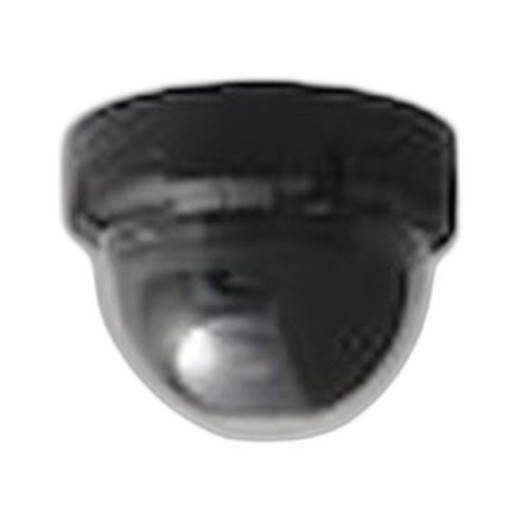

Speco Technologies VL644T 2MP HD-TVI Indoor Dome Camera
Overview
The Speco Technologies VL644T is a fixed-lens, 2MP HD-TVI indoor dome camera designed for straightforward surveillance deployments where 1920×1080 resolution and proven analog-over-coax transmission meet budget and installation constraints. This compact unit combines a 3.6mm fixed lens with 12VDC power delivery, making it suitable for retrofit installations and systems leveraging existing HD-TVI infrastructure. The VL644T integrates with ONVIF Profile I compatible systems, enabling basic protocol-level interoperability for monitoring and control functions.
When this is the correct choice
Select the VL644T for indoor-only installations where HD-TVI transmission infrastructure is already deployed or preferred. This model is ideal for small-to-medium facility monitoring—retail, office lobbies, storage areas—where fixed wide-angle coverage is sufficient and power sourcing via 12VDC is practical. The fixed 3.6mm lens provides approximately 85–90° horizontal field of view, suitable for general area surveillance without pan-tilt or zoom requirements. Its lightweight design (10.5 oz) facilitates simple ceiling or wall mounting in indoor environments.
When to choose a different model
Do not select the VL644T for outdoor deployments; its housing lacks weatherproof or impact-resistant certification. If your facility requires variable focal length, motorized zoom, or adaptive field of view, consider varifocal or PTZ alternatives. For IP-native environments without existing HD-TVI cabling, network-based dome or turret cameras will reduce infrastructure rework. If your VMS or NVR mandates specific video codec support (H.265, advanced compression), verify codec compatibility before committing to this analog-transmission model.
Optics and field of view
The VL644T incorporates a fixed 3.6mm lens optimized for wide-angle indoor coverage. Fixed optics eliminate focus drift and mechanical complexity, reducing maintenance and field-adjustable setup time. The 3.6mm focal length provides a nominal horizontal field of view suitable for monitoring corridors, open floor plans, and general facility areas. Integrators should verify exact horizontal field of view (typically 80–95°) against site-specific requirements; fixed optics cannot accommodate zoom or refocus after installation.
Imaging performance and low light
The 2MP (1920×1080) resolution delivers standard-definition detail capture for identification at moderate distances. The VL644T's sensor and optics are optimized for indoor ambient light conditions. Detailed low-light performance (minimum illumination, noise floor, or presence of mechanical IR illumination) is not specified in available documentation; integrators should assume standard performance for well-lit or supplemental-lighting environments. For genuinely dark areas, request detailed lux specifications or consider models with integral infrared illumination.
Analytics and edge capabilities
The VL644T operates as a passive HD-TVI sensor without embedded video analytics, edge processing, or intelligent detection capabilities. Video analysis and event triggering must be performed by the receiving DVR/NVR or external VMS. This simplicity supports cost-sensitive deployments but requires backend processing infrastructure for motion detection, object tracking, or forensic search functions.
Video encoding and streaming
As an HD-TVI camera, the VL644T transmits video natively over coaxial cable (typically BNC) using the HD-TVI protocol standard. HD-TVI is distinct from IP streaming; video is not encoded as H.264, H.265, or MJPEG streams. Decoding occurs in compatible HD-TVI DVR/NVR equipment. If network streaming or integration with IP-based NVRs is required, a compatible transceiver or adapter may be necessary; consult your backend platform specifications.
Network and security
The VL644T supports ONVIF Profile I, enabling basic protocol-level discovery and control via IP gateways or transcoders. Native HD-TVI transmission does not involve IP protocols; ONVIF compatibility applies to management and metadata exchange when the camera is integrated through an IP interface. Security policies should address physical cable plant security (BNC/coax runs) and backend DVR/NVR authentication and access control.
Environmental and durability ratings
The VL644T is specified for indoor use only. No IP rating, IK rating, or environmental certifications (weather sealing, wide operating temperature range, or impact resistance) are documented. The black housing provides minimal visual impact in interior spaces. Integrators must ensure the installation environment remains indoors, climate-controlled, and free from moisture, vibration, or accidental impact.
Power and installation notes
The VL644T operates on 12VDC power, requiring a dedicated power supply or integration with existing 12V distribution infrastructure. Power consumption details (watts, current draw) are not specified; assume typical HD-TVI dome power budgets (under 5W). A 12VDC PSU with appropriate amperage capacity must be provisioned separately. Installation involves standard BNC coax termination, 12V power connection, and bracket mounting (ceiling or wall). The lightweight design (10.5 oz) minimizes load concerns on standard ceiling infrastructure.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco VL644T during the planning phase of a multi-facility retrofit where existing HD-TVI infrastructure was already in place. This camera proved valuable for cost-effective coverage expansion without requiring IP camera licensing or network bandwidth provisioning. The fixed 3.6mm lens and 12VDC power model fit perfectly into facilities with established analog HD-TVI DVR plants.
Technical Highlights:
- Resolution: 2MP (1920×1080) delivers clear identification in daylight and well-lit indoor environments; adequate for general area surveillance without forensic zoom demands.
- HD-TVI Transmission: Proven coax-based transmission eliminates IP stack complexity and network infrastructure burden; compatible with existing DVR/NVR HD-TVI backends.
- ONVIF Profile I Support: Enables protocol-level interoperability for discovery and management integration in multi-vendor environments.
- Fixed Optics: 3.6mm fixed lens eliminates mechanical wear and focus calibration—simple, reliable, minimal field adjustment required.
Deployment Considerations:
- Confirm backend DVR/NVR supports HD-TVI video decoding; IP transcoders may be required for cloud or remote IP streaming integration.
- Plan separate 12VDC power distribution; do not assume PoE or coax-delivered power—this model requires dedicated wiring.
- Verify site lighting conditions; request lux/illumination specs before deployment to dark or low-light areas. No IR illumination is documented.
- Indoor-only rating: ensure cable plant remains indoors and protected from moisture, temperature extremes, and vibration.
The VL644T is a practical, low-complexity choice for indoor facilities committed to HD-TVI infrastructure. It excels in retrofit scenarios where capital and integration effort must be minimized. Confirm your backend system's HD-TVI input specifications and power provisioning before committing to deployment at scale.
